SAVE THESE INSTRUCTIONS
(345IO) SAND FILTER PUMP COMBO ENGLISH 7.5” X 10.3” PANTONE 295U 04/10/2022
English
Page 8

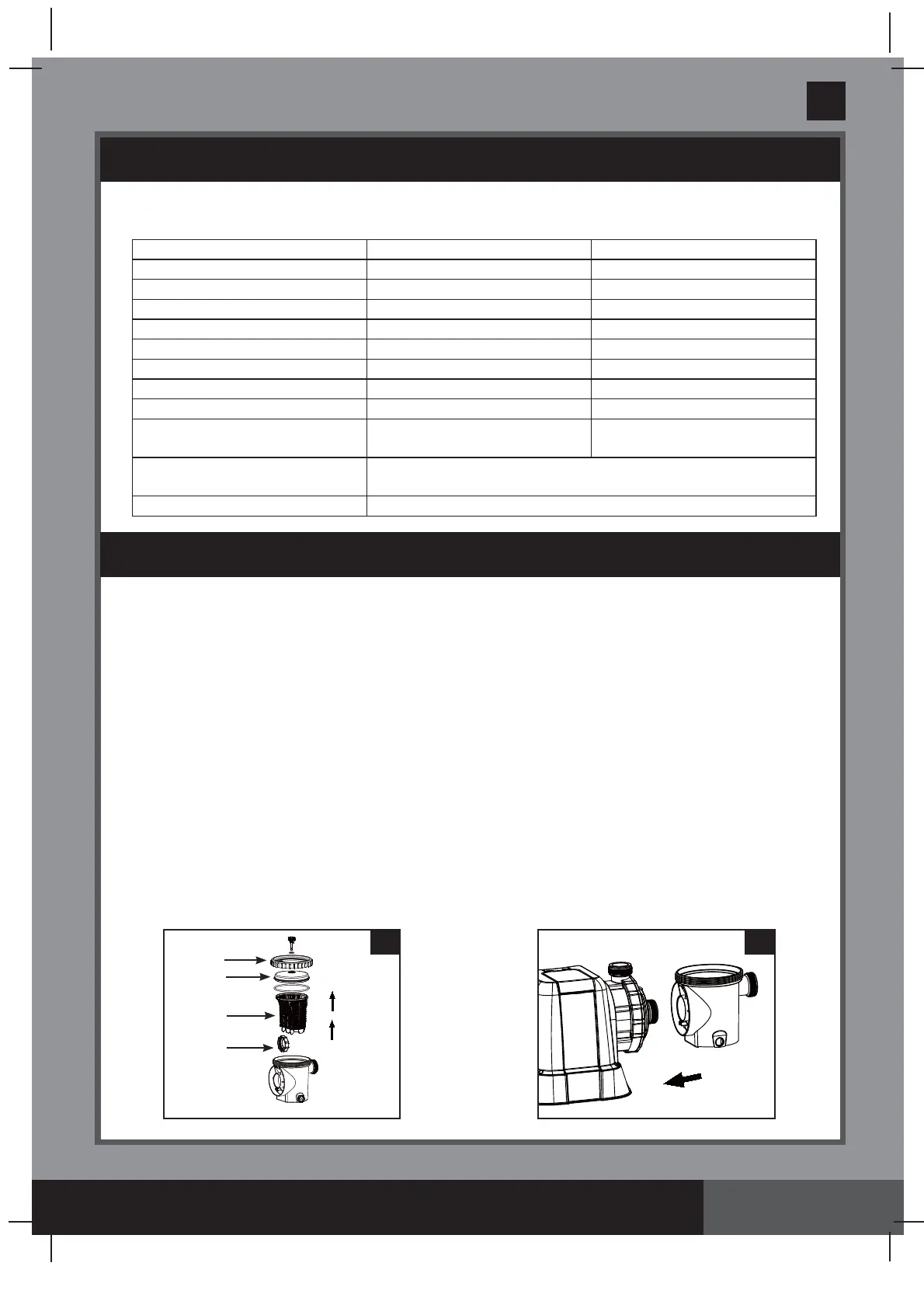

PRODUCT SPECIFICATIONS
SETUP INSTRUCTIONS
The sand filter removes suspended particles but does not sanitize your pool. Pool chemistry
is a specialized area and you should consult your local pool service specialist for details
.
TOOLS REQUIRED: One (1) Phillips screwdriver
Pump location and mounting:
• The system must be installed on a solid level and vibration-free base.
• Provide a location protected from the weather, moisture, flooding and freezing
temperature.
• Provide adequate access, space and lighting for routine maintenance.
• Pump motor requires free circulation of air for cooling. Do not install the pump in a
damp or non-ventilated location.
A team of 2 or more people is recommended for setting up this product.
The appliance is intended only for household use.
Motor pre-filtering assembly setup:
1.
Remove the sand filter and its accessories from the packaging carefully and inspect for any
visible damage.
2.
In a counter-clockwise motion unscrew the leaf trap nut
(14)
from the pre-filter housing. Take
out the basket
(16)
and filter housing nut
(17) (see drawing 10)
.
3.
Connect the pre-filter housing to the motor water inlet. Note: Align the connector in the
pre-filter housing with the water inlet on the motor
(see drawing 11)
.
Certified Model Number: ECO20220-2/ECO20230-2 ECO15220-2/ECO15230-2
Power: 220-240 Volt AC 220-240 Volt AC
Wattage: 520 W 300 W
Ideal Salt Level: 3000 ppm (parts per million) 3000 ppm
Maximum Sanitizer Output/hour: 11 grams/hour 7 grams/hour
E.C.O. Cell Output Current: 800mA 500mA
Maximum working pressure:
2 bar (30 psi) 2 bar (30 psi)
Effective filtering area: 0.13 m
2
(1.44 ft
2
) 0.1 m
2
(1.07 ft
2
)
Pump flow rate (at pump outlet): 10.0 m
3
/h (2650 GPH) 7.9 m
3
/h (2100 GPH)
Recommended filtering
media quantity:
No. 20 silica sand 55 Kg (120 Lbs)
or glass sand 38 Kg (85 Lbs).
No. 20 silica sand 35 Kg (77 Lbs)
or glass sand 25 Kg (55 Lbs).
Recommended filtering
media (Not included):
No. 20 silica sand or glass sand. Particle size range 0.45 to 0.85
mm (0.018 to 0.033 inches). Uniformity Coefficient less than 1.75.
Limited Warranty: see ʺLimited Warrantyʺ
11
10
35
17
16
14
