SETUP INSTRUCTIONS
SETUP INSTRUCTIONS (continued)
Connecting the system to pump and pool with 1-1/2” (38mm)
connections/hoses:
Pump and pool with 1-1/2” (38mm) connections do not require the adaptors A
(1) or B (9). Install as follows:

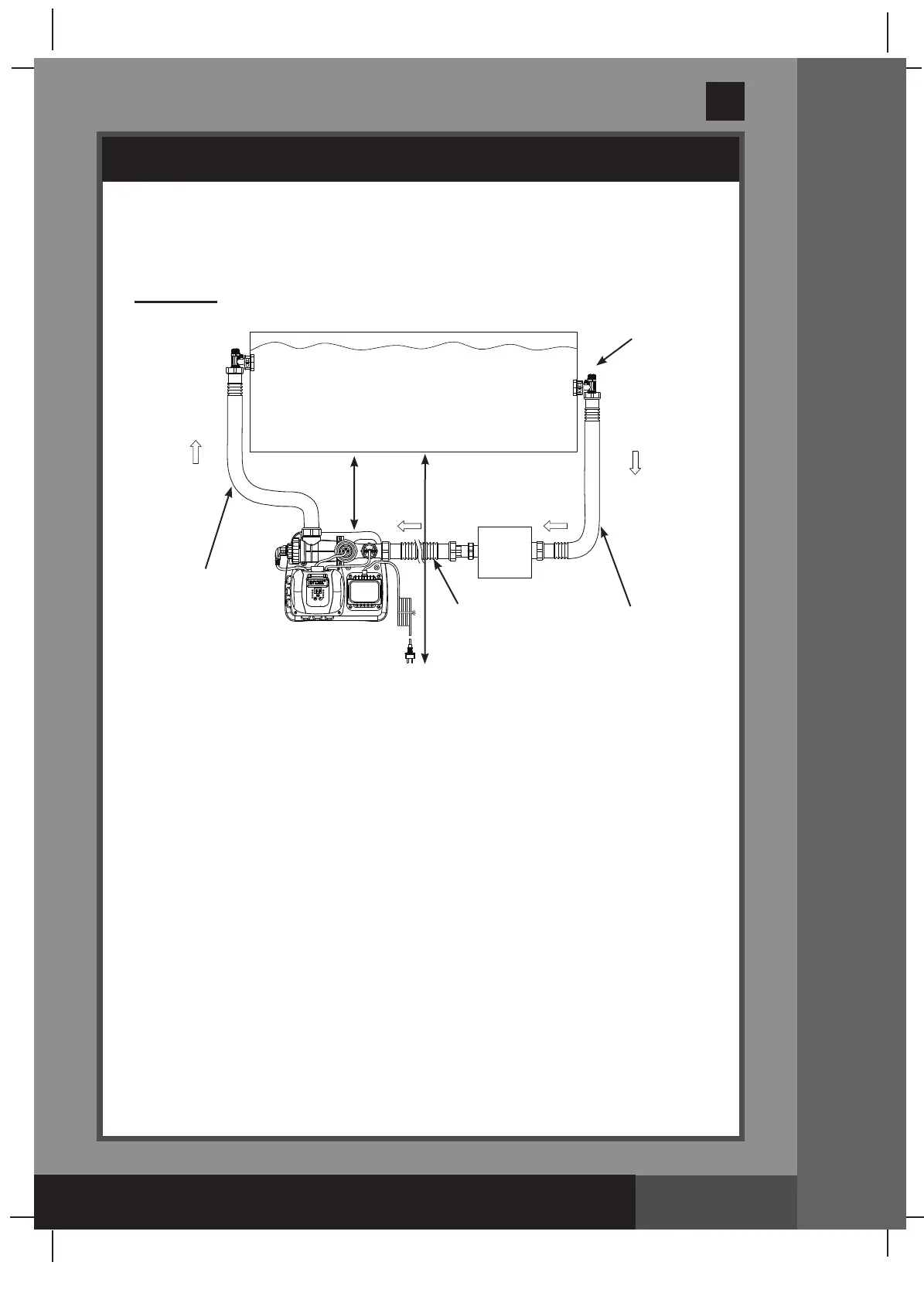

Drawing #2
1. Go directly to step 2 if your pool is empty. If your above-ground-pool is filled
with water, close the plunger valves before installing the Saltwater System.
2. Disconnect the water return hose from the filter pump connection and connect
it to the Saltwater System outlet.
3. Connect the connector hose (8) to the filter pump outlet connection.
4. Open the plunger valves to allow the water to flow.
8
3.5M
2M
SALTWATER
SYSTEM
ID 1-1/2” (38mm)
HOSE
WATER TO
POOL
PLUNGER
VALVE
WATER FROM
POOL
ID 1-1/2” (38mm)
HOSE
FILTER
PUMP
SWIMMING POOL
To Next Page
