(188IO) MODEL CS7220/7230 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 07/10/2012
188A
SAVE THESE INSTRUCTIONS
Page 11
English
SETUP INSTRUCTIONS

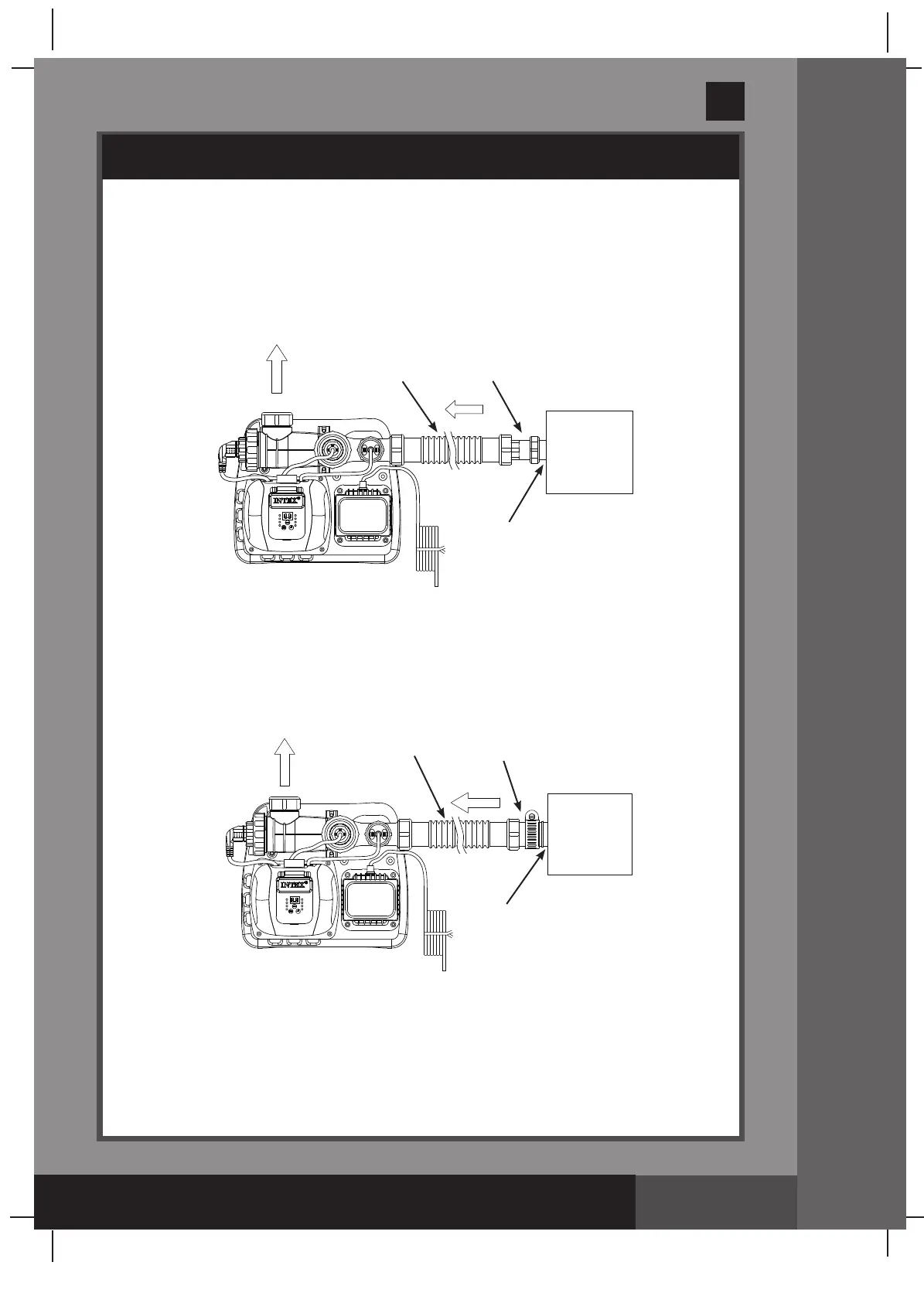

Connecting the system to other types of pump (with different type of
thread or no thread):
The Saltwater System can also be adapted to other filter pumps with different
thread or those without a thread on the connection.
Connection to 1-1/4” (32mm) hose:
1. Connect one end of adaptor B (9) to the connector hose (8). Tighten securely.
2. Now, connect the other end of adaptor B (9) to the filter pump outlet. Tighten
securely.
Connection to 1-1/2” (38mm) hose with clamp:
1. Connect the connector hose (8) to the filter pump outlet connection with a large
hose clamp. Tighten securely.
SETUP INSTRUCTIONS (continued)
ID 1-1/4” (32mm)
CONNECTION
SALTWATER SYSTEM
FILTER PUMP
8
9
LARGE HOSE
CLAMP
FILTER PUMP
ID 1-1/2” (38mm)
CONNECTION
SALTWATER SYSTEM
8
