INTRODUCTIONS OF PARTS
1
Note : Graphics may be different with the actual machine.
4. Wash Program
Set the program to “Gentle”,“Normal”,
“Heavy” according to kinds and
quantity of the laundry.
5. Drain Selector
Select“ Wash Rinse” for washing and
rinsing and “Drain” to drain the water
out of the tub.
6. Spin Timer
Select the desired time for spinning. The
maximum limit is 5 min. Don’t rotate the knob
more than prescribed limit.
1. Water Supply Inlet
Connect here with the inlet hose from the
water tap to feed water to the tub.
2. Water Selector
Select “WASH” to supply water for
washing and rinsing and “SPIN” for spin
shower rinse.
3. Soak Timer
Select the desired time for soaking
washing or rinsing.

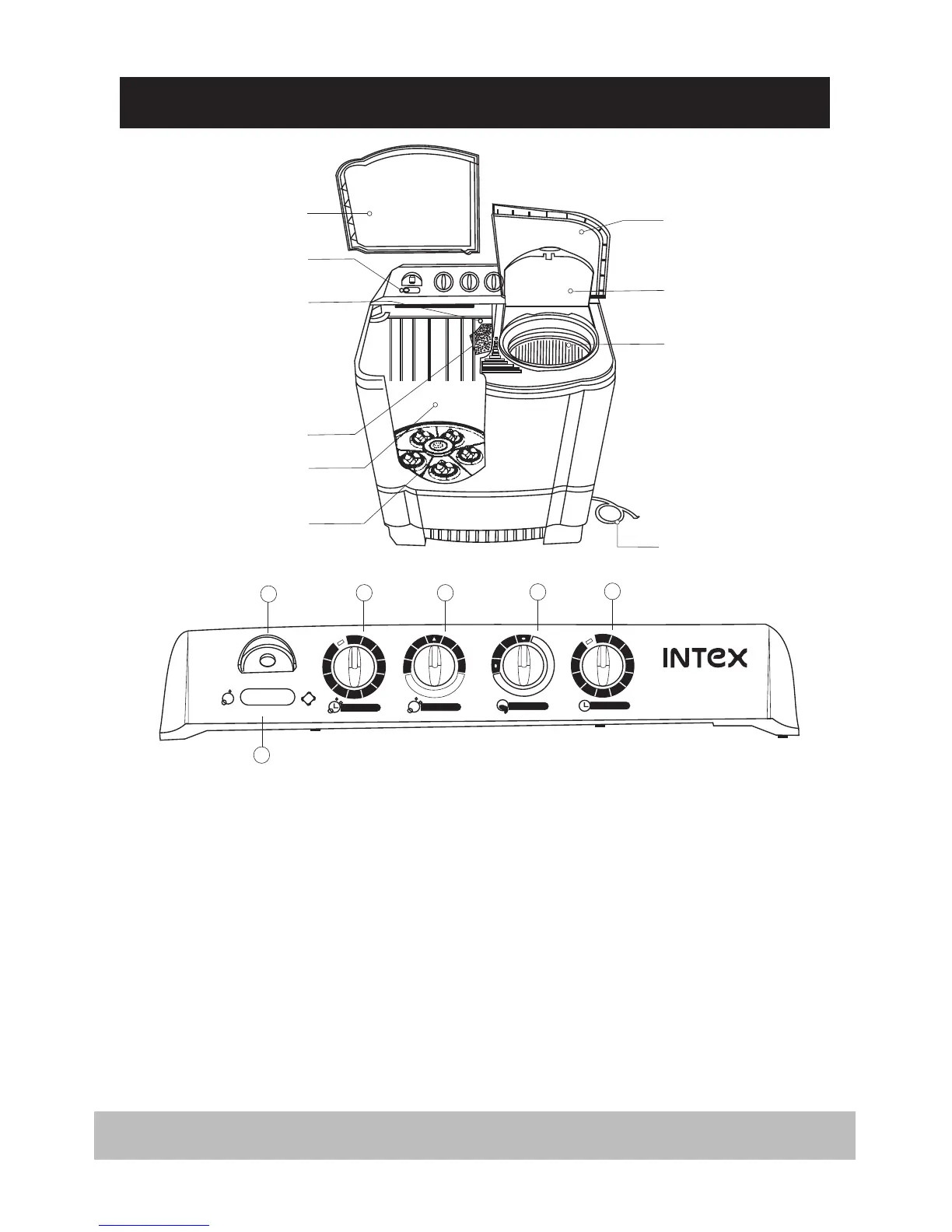

WASHING
COVER
WATER SUPPLY
SELECTOR
OVER FLOW
FILTER
ROTATION
FILTER-C
CABINET
PULSATOR
POWER CORD
SPIN DRYER
BASKET
SAFETY
COVER-2
SPIN DRYER
COVER
Water
Inlet
Water Selector
1
3 4
5
6
2
off
Gentle
Normal
Heavy
Drain
Wash-Rinse
Off
Wash Timer
Wash Selector
Wash Drain
Spin Timer
Turbo Dry
Regular
* Model SA80CR/LV with Turbodry features of
10min Spin Timer
To Next Page
