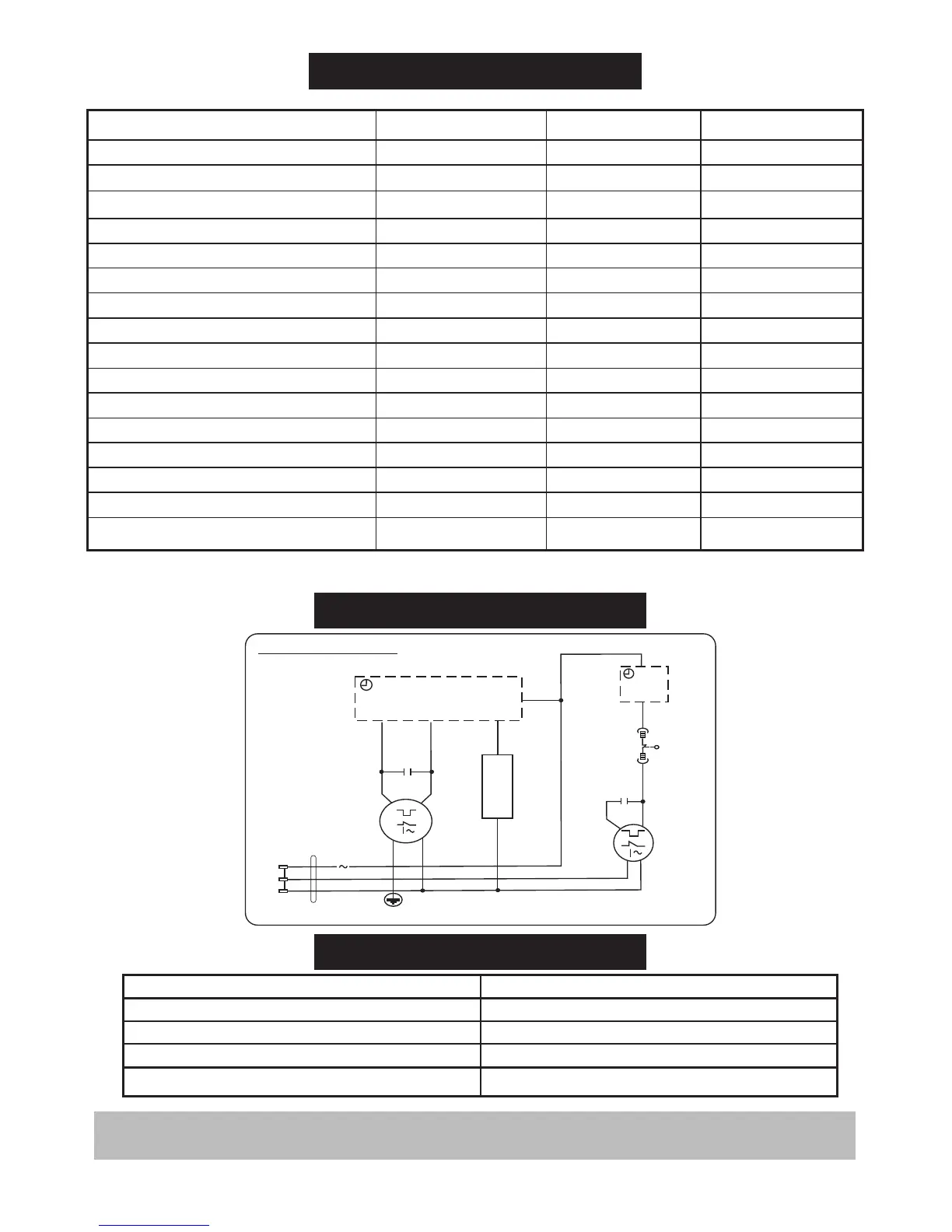

Intex WMS76ST

6
WIRING DIAGRAM
-PT1
Red
Red
Red
Yellow
Yellow
Yellow
-M1
-XP
Brown
L
E
N
E
Blue Blue
Yellow/Green
Yellow/Green
- M2
White
Blue
Orange
Orange
Orange
-C2
White
-SQ
Gray
-PT2
Buzzer
Pink
Brown
WIRING DIAGRAM
-C1
PACKING LIST
SPECIFICATION
Name
Semi Automatic washing machine
Spin-dry safety lid
Inlet pipe
User manual
Quantity
1
1
1
1
Fuse
Spinning Input
Net Dimension in mm (WXDXH)
Package Dimension in mm (WXDXH)
Net Weight
Gross W
eight
W
ater Capacity High
W
ater Capacity Low
Castor
Buzzer
Wash Timer
Soak
Time
Spin
Timer
190 W
805x475x935
820x520x1000
22 kg
26 kg
75 L
47 L
Yes
35 min.
Yes
20 min.
5 min.
Power Supply
W
ashing Input
SA72DB/DR
7.2 kg
520 W
Model
Max. Rated Capacity Wash
230 V
AC / 50Hz
190 W
805x475x1040
820x520x1100
24 kg
29 kg
75 L
47 L
Yes
35 min.
Yes
20 min.
10 min.
SA80CR/LV
8.0 kg
540 W
230 V
AC / 50Hz
6.0 kg
Max. Rated Capacity Spin
6.0 kg
190 W
805x475x995
820x520x1055
23 kg
27 kg
75 L
47 L
Yes
35 min.
Yes
20 min.
5 min.
WMS76ST/FT
7.6 kg
520 W
230 V
AC / 50Hz
6.0 kg
