The distance between the lowest part of the footrest and the
ground must be at least 40 mm.

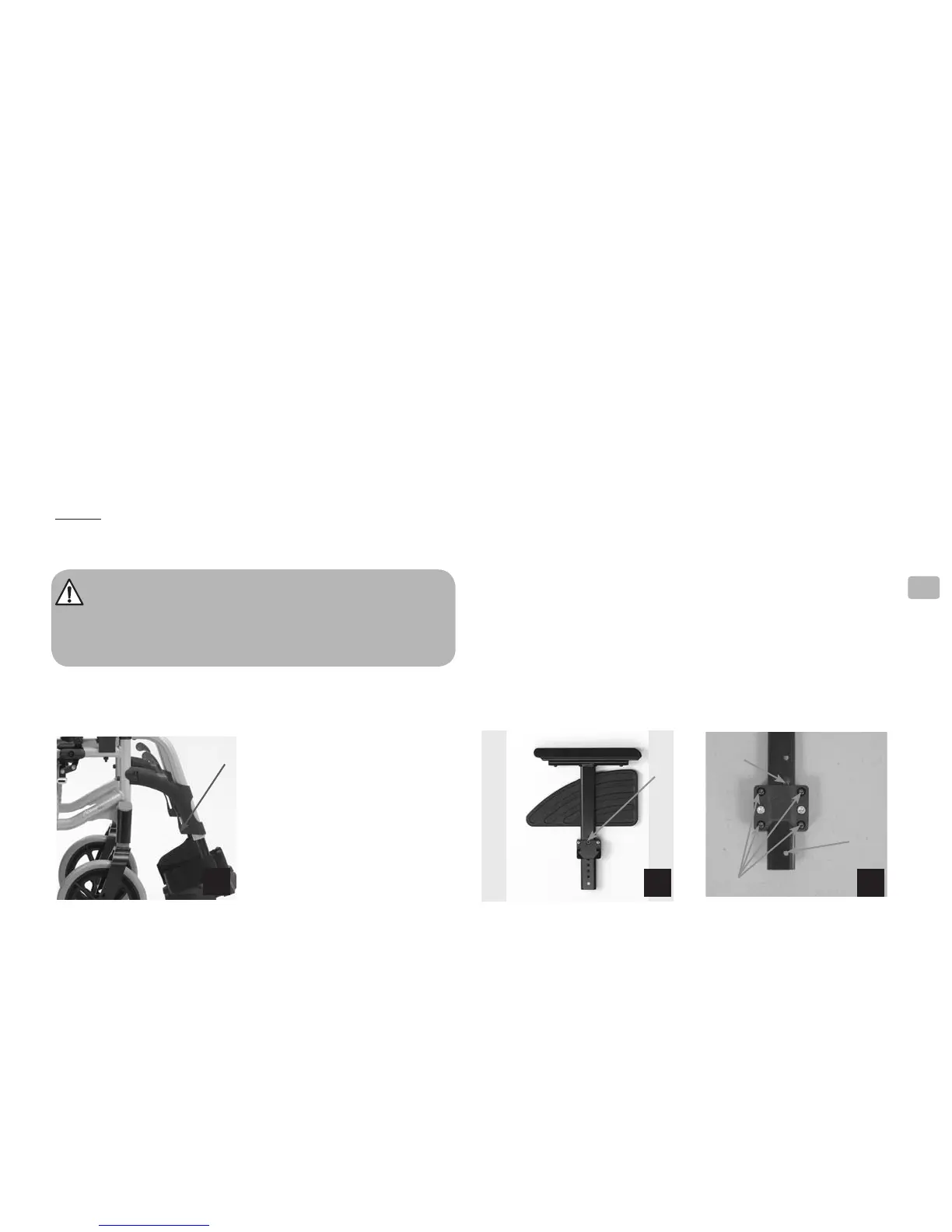

- Footrests (photo 7) : the footplate can be lifted during
transfers footrests are height adjustable. Loosen the screw
(A) to adjust to the desired height, rmly tighten the screw
after adjustment.
- Straps : to ensure a good position of the feet, the heelrest
strips are adjustable by Velcro fasteners.
Note : the standard footrest supports are mounted in pairs
on the wheelchair; whenever you remove them, remember
that you have a right side and a left side !
Never lift the wheelchair by the footrest supports !
Keep your ngers away from movable parts during folding,
disassembling or adjustment to prevent injuries !
2.1.5 Armrests
- Removable :
• Simple n°1 (photos 8 & 9) : to remove armrests, simply pull
them up. Previously, press on the push pin (C) located at the
bottom of the armrest vertical upright. Reverse the proce-
dure to reinstall them. To adjust their height (4 positions),
remove the screw (A), adjust to the desired height and repo-
sition the screw (A), tighten without forcing.
The armrests with central xation (n°1) from now on are
equipped with a support adjustable (in 2 parts) which enables
you to reduce the plays and to facilitate the vertical tube
extraction, it is necessary to tighten or loosen the 4 screws
(B) according to the anticipated result (photo 9).
7
8
A
B
9
A
C
