SECTION 3—ARMRESTS
Replacing Armrest Arm pad
NOTE: For this procedure, refer to FIGURE 3.3.
1. Remove the mounting screws that secure the arm pad to the armrest assembly.
2. Replace arm pad and securely tighten with the existing mounting screws (M5).
3. Repeat STEPS 1 - 2 for the opposite side if necessary.

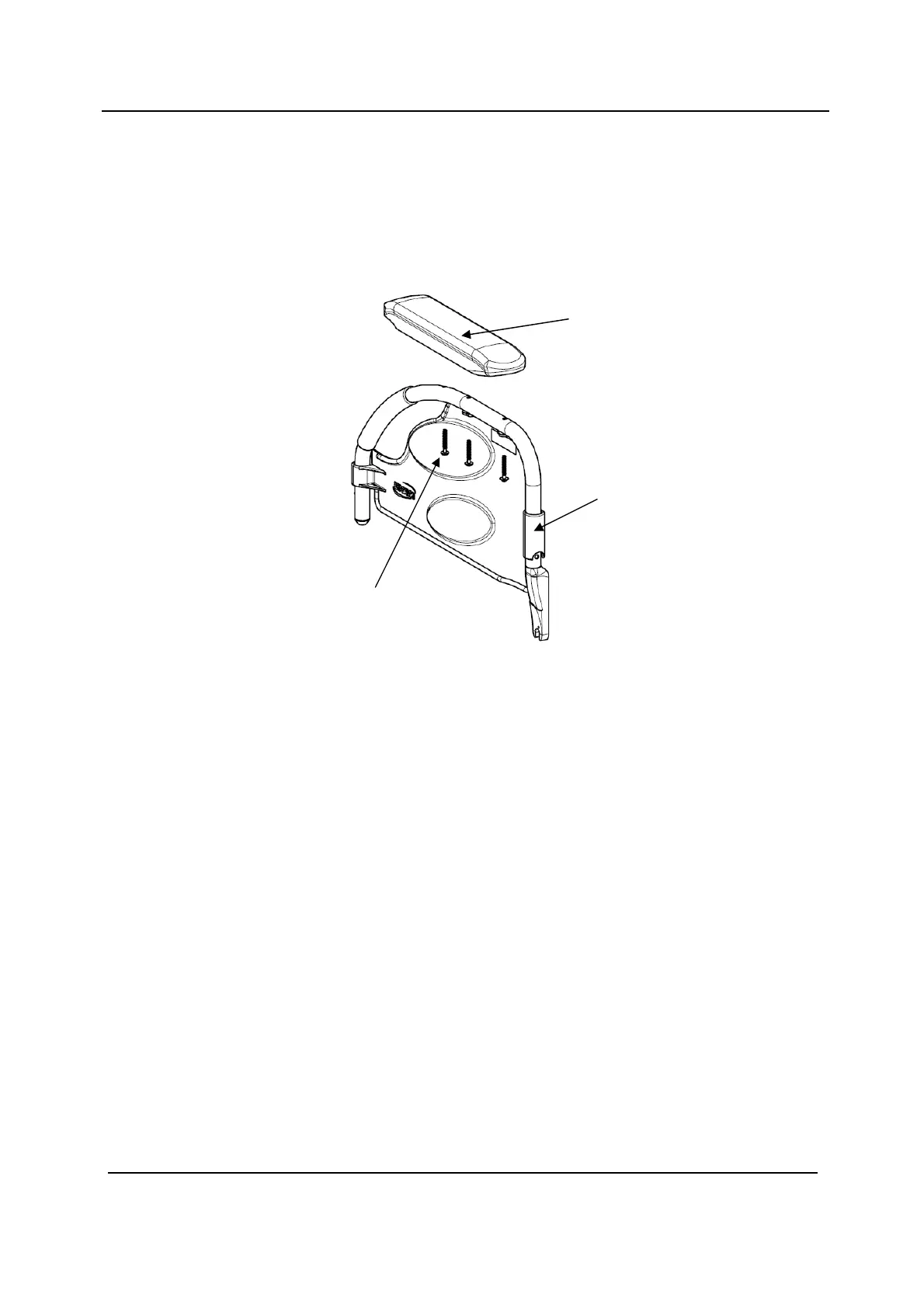

FIGURE 3.3 Replacing Armrest Arm Pad
Armrest assembly
Mounting screw (M5)
Armpad
