Invacare Action 2 NG Service Manual

3 1
SECTION 9—REAR WHEELS/FRONT CASTERS
Adjusting Castor Height Position (if so equipped)
NOTE: For this procedure, refer to FIGURE 5.11.
1. Remove the two mounting screws that secure the castor assembly to wheelchair
frame.
IMPORTANT: To adjust the castor position on both sides, use the spare parts kit (SP1657713)
consisted of 4 mounting pre-glued screws (M6x37mm) and 2 attachment plates.
2. Move the castor housing assembly to one of two positions. Refer to Detail “A” of
FIGURE 5.11. Always check that the plastic insert is present before tightening the
mounting screws.
NOTE: Both castor housing assemblies must be set at the same position.
3. To finalise the assembly, refer to section Adjusting Castor Angle, repeat
STEPS 4 to 6.

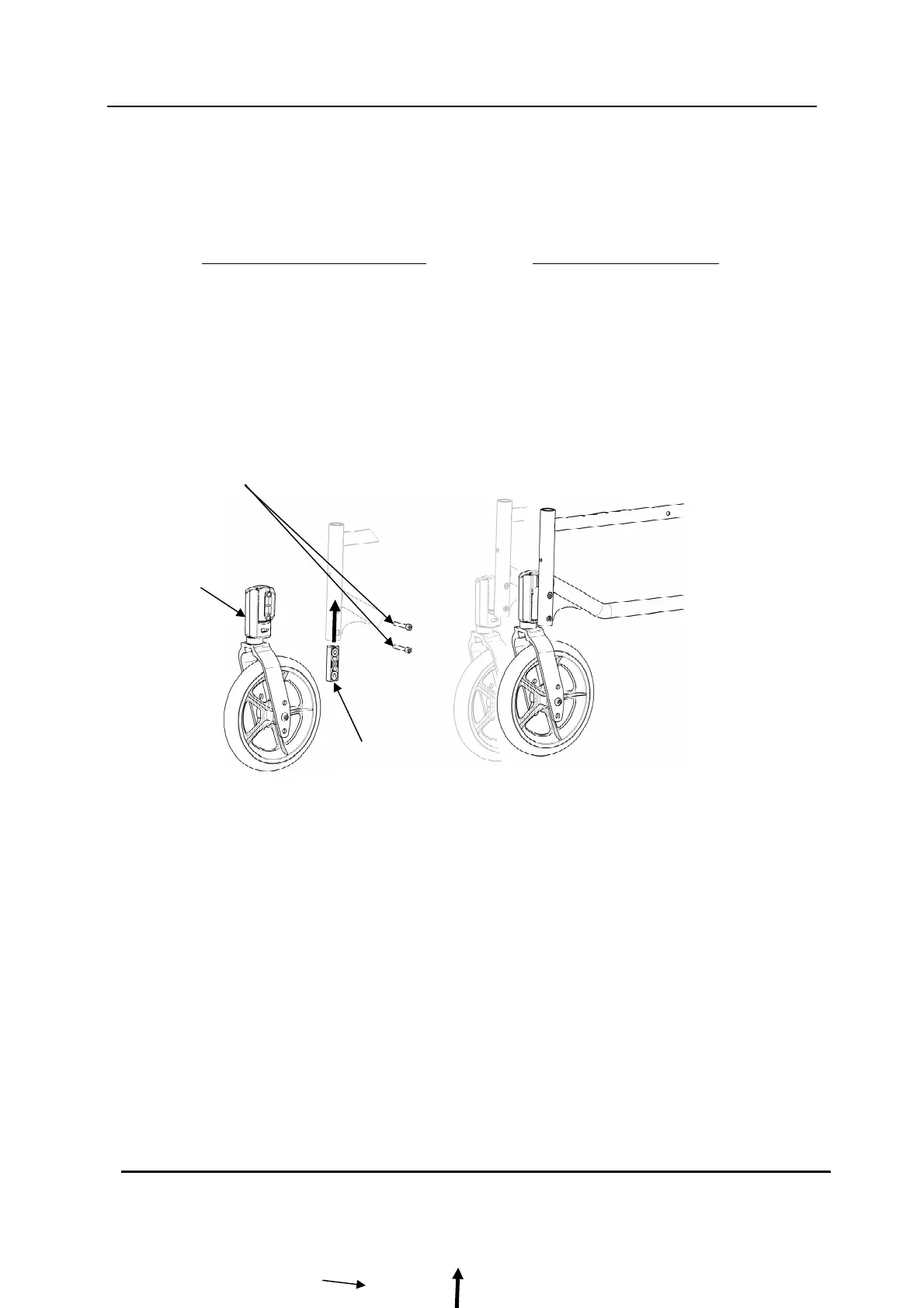

F I G U R E 5 .11
Adjusting Cast
o
r
Height
Position
DETAIL «A»
Mounting
pre-glued
Screws
Position 1
Position 2
Plastic Insert
Castor
Assembly
