Invacare Action 2 NG Service Manual

SECTION 9—REAR WHEELS/FRONT CASTERS
3 0
NOTE: Both castors housing must be set at the same angle.
4. Tighten in 3 steps (lower-upper-lower) progressively the 2 mounting pre-glued
screws (13/14 Nm) that secure the castor housing assembly to the wheelchair
frame.
5. Repeat STEPS 1 to 4 for the other castor housing assembly.
6. IMPORTANT: Wait 24 hours before using the wheelchair (polymerisation time
required for a safe assembly).
Castor
Housing
Assembly
Mounting
pre-glued Screws

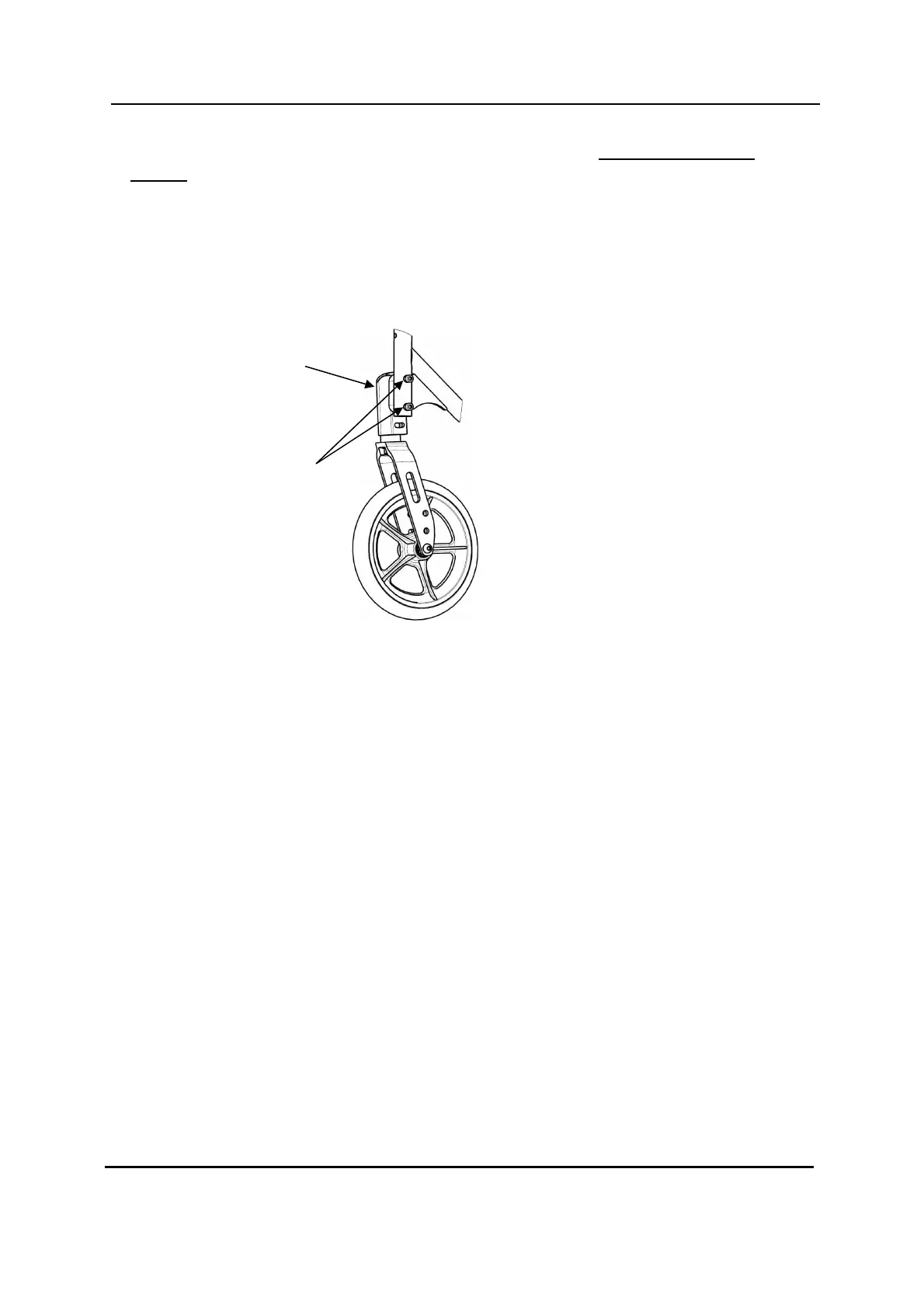

FIGURE 5.10 Adjusting Castor Angle
