Invacare Action 2 NG Service Manual

SECTION 5—REAR WHEELS/FRONT CASTORS
22
NOTE: To obtain the desired front seat to floor height (for details, see Seat-to Floor
Height paragraph), it will be necessary to perform one or both of the following:
• Changing the mounting position on the fork. Refer to
Removing/Installing/Repositioning the Castor Assemblies paragraph.
• Changing the fork size or adding/removing height adjustment spacers. Refer to
Adjusting Forks paragraph.
• Changing the rear height positioning and /or the seat angle. Refer to the table
below.
Fixed Axle

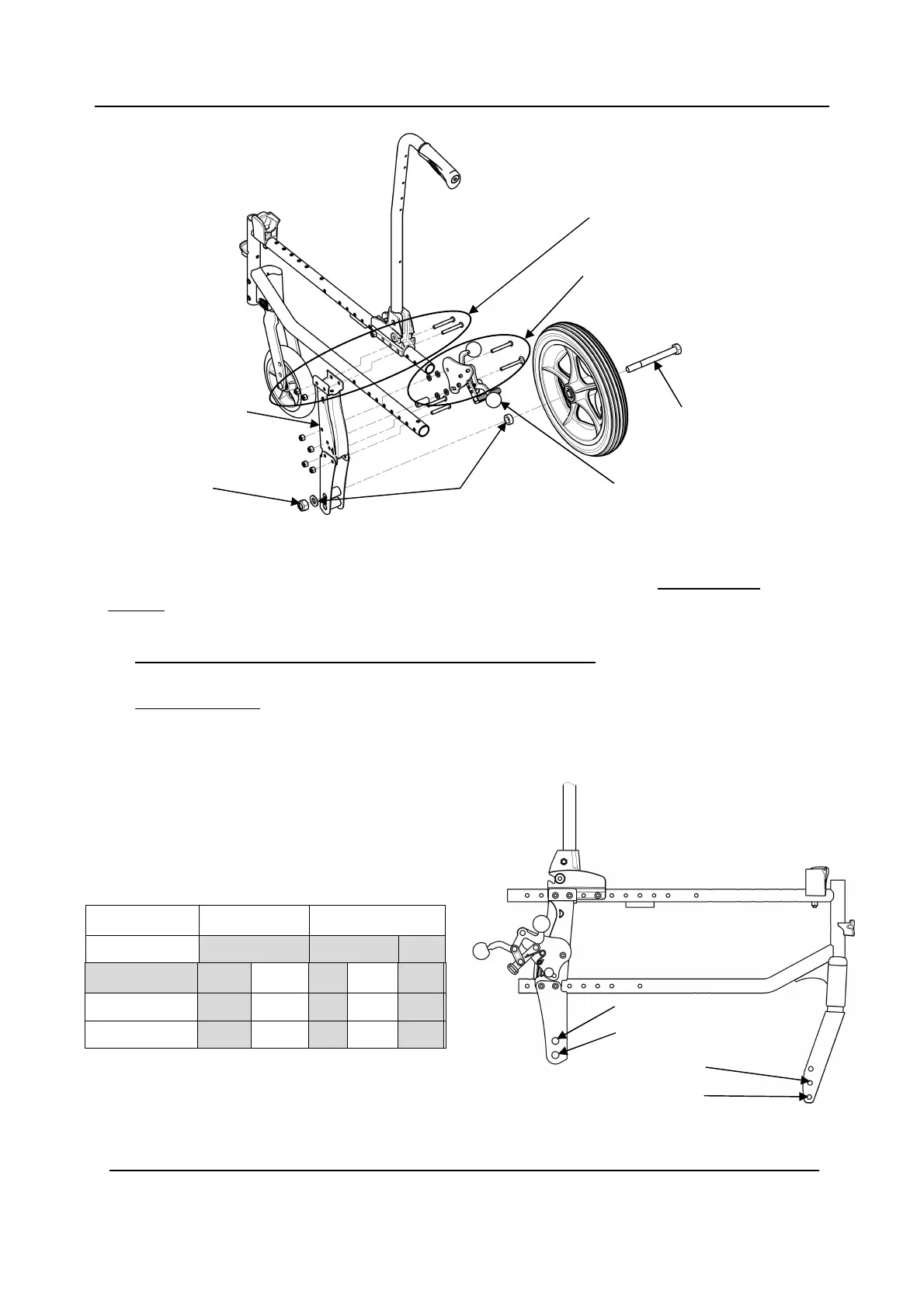

FIGURE 5.1 Removing/Installing Rear Wheels
Axle Bracket
Washers
Locknut Transit Brake
Brake Hardware
Axle Brackets
Hardware
1 =
485 m
m
1
2
2 =
510 mm
SEAT ANGLE 3°
REAR WHEEL FRONT CASTOR
SEAT HEIGHT
24” 8”
485 mm 1 1
510 mm 2
2
