7 Adjustment Options
7.1 Adjusting the angle of the backrest
The backrest is held in place by a metal plate on each side. Each plate has 4 holes that are used to
set the backrest to different angles. This is done by selecting different combinations of holes.
Requirements:
• Allen key, 4 mm
• Spanner, 10 mm

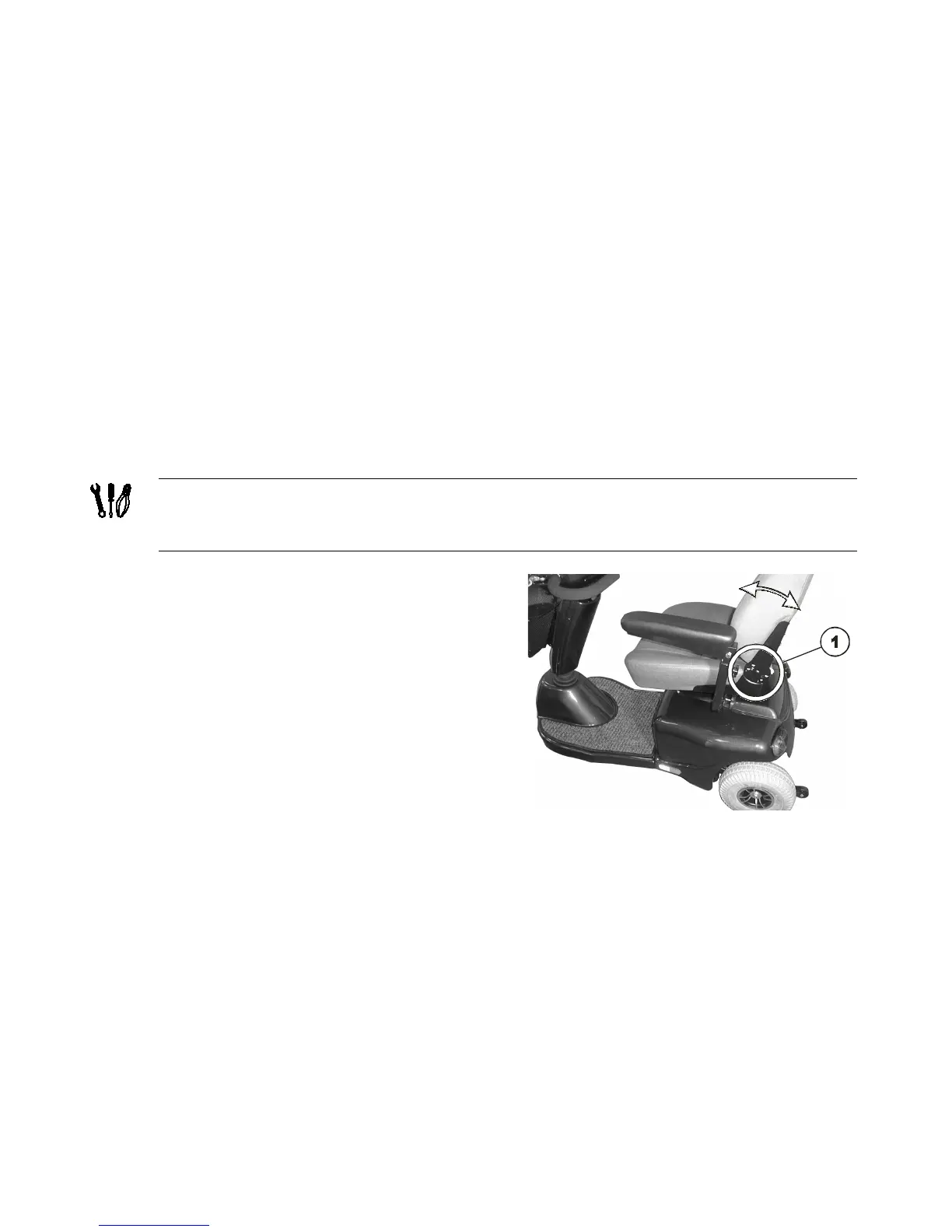

• Remove the screws on both sides of the seat
that hold the backrest (1), using the spanner
and Allen key.
• Adjust the backrest to the desired angle.
• Reposition the screws and tighten.
