Invacare electra - 10 Disassembly for Transport; 10.1 Seat Removal

43
10 Disassemble the scooter for transport
Follow these steps to disassemble the scooter for transport:
• Remove seat
• Turn down steering column
The scooter is reassembled in reversed order.

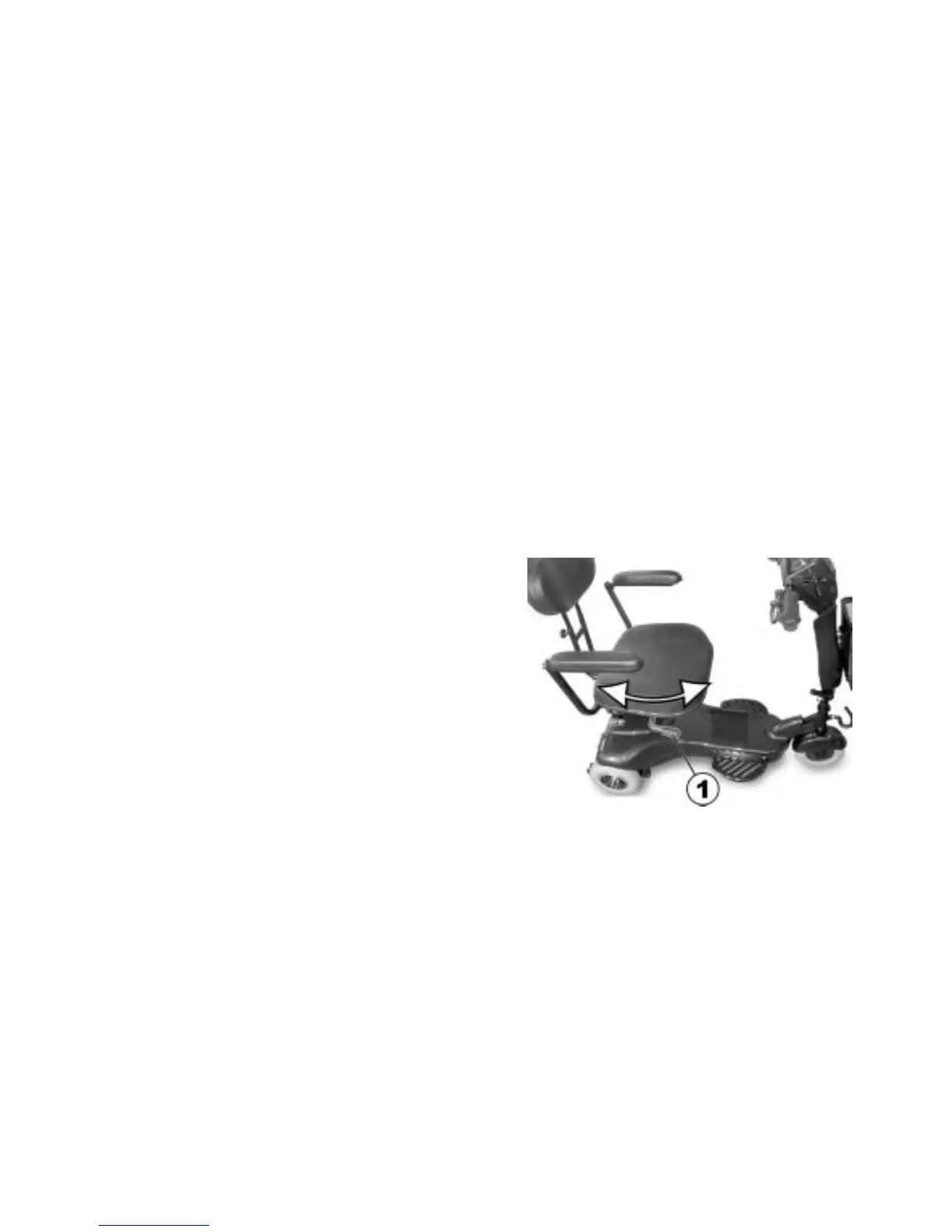

10.1 Remove seat
The lever to release the seat so that this can be
turned over and taken out is located underneath
the seat on the right (1).
• Push down lever to release the seat.
• Turn seat sideways.
• Firmly grip the seat on the backrest and front
edge and pull up to remove.
