6
Check Box When
Completed
4. Remove the two (2) wide "VELCRO
®
like" straps from around the bottom of the frame post - these are
the battery lifting straps and will be used later in the battery installation process. These two (2) straps
are wrapped together and will need to be separated (DETAIL "A" of FIGURE 5).
NOTE: DO NOT remove the narrow "VELCRO
®
like" strap that runs across the back of the scooter - this
is the battery fastening strap.
5. Disconnect the RED connector of the BATTERY wiring harness from the RED connector on the
CONTROLLER wiring harness and set aside (DETAIL "B" of FIGURE 5).
6. Disconnect the BLACK connector of the BATTERY wiring harness from the BLACK connector on the
CONTROLLER wiring harness and set aside (DETAIL "B" of FIGURE 5).

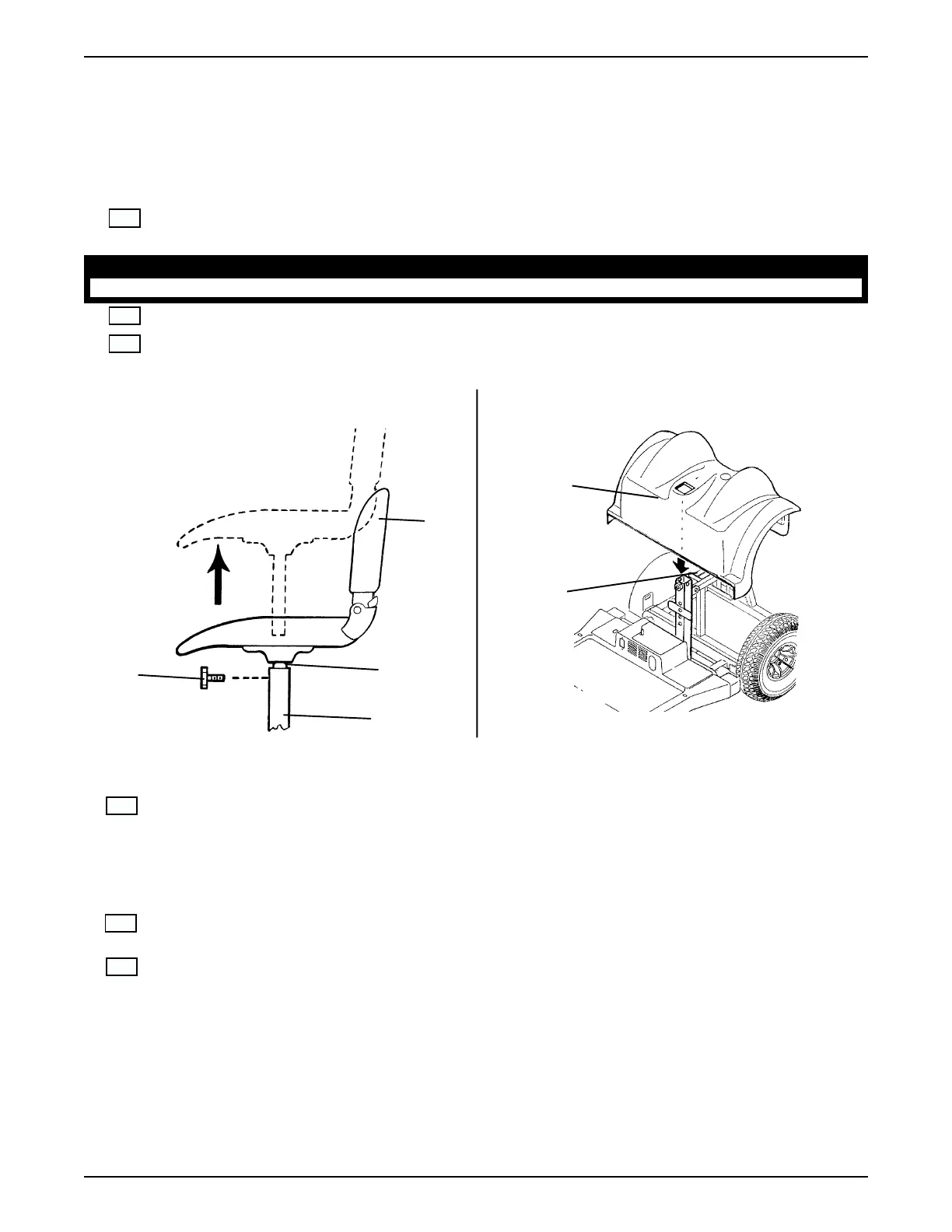

FIGURE 4 - PREPARING THE SCOOTER/BATTERIES FOR INSTALLATION
Seat
DETAIL "B"DETAIL "A"
Seat Post
Frame Post
Stability
Knob
Rear
Shroud
Frame
Support
VELCRO
®
is a registered trademark of Velcro Industries B.V.
D. BATTERY INSTALLATION
Preparing The Scooter/Batteries For Installation (FIGURES 4, 5 AND 6)
To properly prepare the scooter/batteries for installation, perform the following steps:
Check Box When
Completed
1. Unscrew and remove the stability knob located under the seat on the front of the frame post (DETAIL
"A" of FIGURE 4).
WARNING
DO NOT lift the seat by the arm rests - otherwise, injury or damage may occur.
2. Lift the seat assembly up and remove it from the frame support (DETAIL "A" of FIGURE 4).
3. Lift the rear shroud off of the frame post (DETAIL "B" of FIGURE 4).
NOTE: You will hear a "VELCRO
®
like" unhooking sound when removing the shroud.
BATTERY INSTALLATION
