Connecting The Battery Wiring Harness To The Battery (FIGURES 7 AND 8)
To properly connect the battery wiring harness to the battery, perform the following steps:
Check Box When
Completed
1. Locate the battery wiring harness with the BLACK connector at one (1) end (FIGURE 7).
NOTE: There are two (2) battery wiring harnesses - one (1) with a BLACK connector and one (1) with a
RED connector.
CAUTION
When tightening the screws/locknuts on the battery terminal posts, always use a box or a crescent
wrench. Pliers will round off the nuts. Never wiggle the terminal when tightening. Otherwise, the battery
may become damaged.
2. Remove the mounting screw and locknut from the NEGATIVE (-) battery terminal post (FIGURE 8).
NOTE: To establish a ground, make the BLACK cable to NEGATIVE (-) battery terminal post connection first.
3. Connect the battery cable with the BLACK boot to the NEGATIVE (-) battery terminal post using the mounting
screw and locknut (FIGURE 8). Tighten the screw and locknut using a 7/16 box or Crescent wrench.
4. Push the BLACK battery cable boot down over the NEGATIVE (-) battery terminal post, covering the
terminal post, mounting screw and locknut (FIGURE 8).

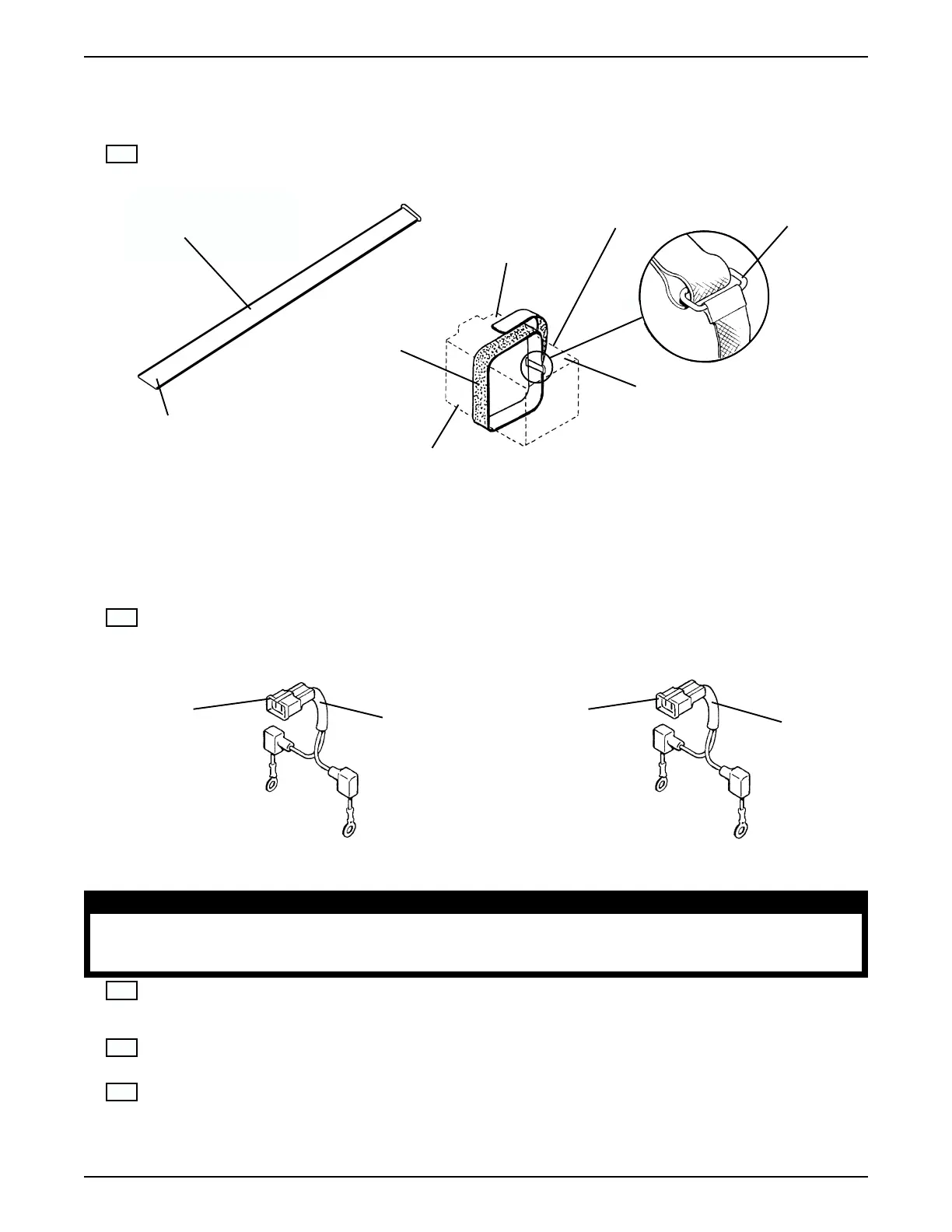

FIGURE 7 - CONNECTING THE BATTERY WIRING HARNESS TO THE BATTERY
Battery
Wiring
Harness
Black
Connector
Battery
Wiring
Harness
Red
Connector
FIGURE 6 - PREPARING THE SCOOTER/BATTERIES FOR INSTALLATION
Battery
Lifting
Strap
Smooth Side Up
Battery
Battery
Terminal Post
(NOT
SHOWN)
Battery
Terminal Post
(NOT
SHOWN)
Top,
Rear
Edge
Battery
Lifting
Strap
Retaining
Ring
Preparing The Scooter/Batteries For Installation (FIGURES 4, 5 AND 6) - Continued
NOTE: DO NOT position the battery in the scooter at this time.
14. Repeat STEPS 7-14 for the other battery.
BATTERY INSTALLATION
