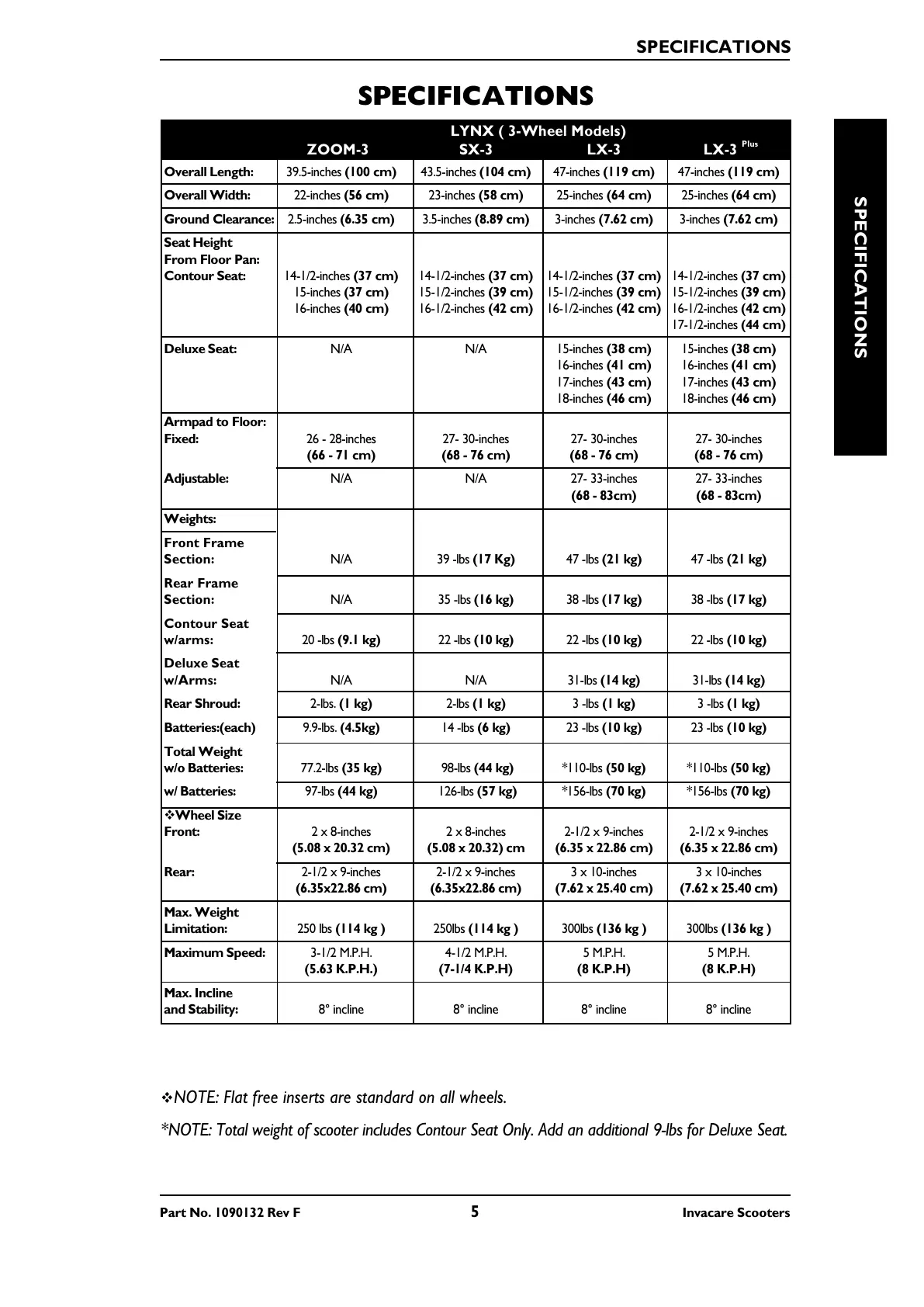

SPECIFICATIONS
SPECIFICATIONS
vNOTE: Flat free inserts are standard on all wheels.
*NOTE: Total weight of scooter includes Contour Seat Only. Add an additional 9-lbs for Deluxe Seat.
SPECIFICATIONS
Overall Length: 39.5-inches (100 cm) 43.5-inches (104 cm) 47-inches (119 cm) 47-inches (119 cm)
Overall Width: 22-inches (56 cm) 23-inches (58 cm) 25-inches (64 cm) 25-inches (64 cm)
Ground Clearance: 2.5-inches (6.35 cm) 3.5-inches (8.89 cm) 3-inches (7.62 cm) 3-inches (7.62 cm)
Seat Height
From Floor Pan:
Contour Seat: 14-1/2-inches (37 cm) 14-1/2-inches (37 cm) 14-1/2-inches (37 cm) 14-1/2-inches (37 cm)
15-inches (37 cm) 15-1/2-inches (39 cm) 15-1/2-inches (39 cm) 15-1/2-inches (39 cm)
16-inches (40 cm) 16-1/2-inches (42 cm) 16-1/2-inches (42 cm) 16-1/2-inches (42 cm)
17-1/2-inches (44 cm)
Deluxe Seat: N/A N/A 15-inches (38 cm) 15-inches (38 cm)
16-inches (41 cm) 16-inches (41 cm)
17-inches (43 cm) 17-inches (43 cm)
18-inches (46 cm) 18-inches (46 cm)
Armpad to Floor:
Fixed: 26 - 28-inches 27- 30-inches 27- 30-inches 27- 30-inches
(66 - 71 cm) (68 - 76 cm) (68 - 76 cm) (68 - 76 cm)
Adjustable: N/A N/A 27- 33-inches 27- 33-inches
(68 - 83cm) (68 - 83cm)
Weights:
Front Frame
Section: N/A 39 -lbs (17 Kg) 47 -lbs (21 kg) 47 -lbs (21 kg)
Rear Frame
Section: N/A 35 -lbs (16 kg) 38 -lbs (17 kg) 38 -lbs (17 kg)
Contour Seat
w/arms: 20 -lbs (9.1 kg) 22 -lbs (10 kg) 22 -lbs (10 kg) 22 -lbs (10 kg)
Deluxe Seat
w/Arms: N/A N/A 31-lbs (14 kg) 31-lbs (14 kg)
Rear Shroud: 2-lbs. (1 kg) 2-lbs (1 kg) 3 -lbs (1 kg) 3 -lbs (1 kg)
Batteries:(each) 9.9-lbs. (4.5kg) 14 -lbs (6 kg) 23 -lbs (10 kg) 23 -lbs (10 kg)
Total Weight
w/o Batteries: 77.2-lbs (35 kg) 98-lbs (44 kg) *110-lbs (50 kg) *110-lbs (50 kg)
w/ Batteries: 97-lbs (44 kg) 126-lbs (57 kg) *156-lbs (70 kg) *156-lbs (70 kg)
vWheel Size
Front: 2 x 8-inches 2 x 8-inches 2-1/2 x 9-inches 2-1/2 x 9-inches
(5.08 x 20.32 cm) (5.08 x 20.32) cm (6.35 x 22.86 cm) (6.35 x 22.86 cm)
Rear: 2-1/2 x 9-inches 2-1/2 x 9-inches 3 x 10-inches 3 x 10-inches
(6.35x22.86 cm) (6.35x22.86 cm) (7.62 x 25.40 cm) (7.62 x 25.40 cm)
Max. Weight
Limitation: 250 lbs (114 kg ) 250lbs (114 kg ) 300lbs (136 kg ) 300lbs (136 kg )
Maximum Speed: 3-1/2 M.P.H. 4-1/2 M.P.H. 5 M.P.H. 5 M.P.H.
(5.63 K.P.H.) (7-1/4 K.P.H) (8 K.P.H) (8 K.P.H)
Max. Incline
and Stability: 8° incline 8° incline 8° incline 8° incline
LYNX ( 3-Wheel Models)
ZOOM-3 SX-3 LX-3 LX-3
Plus
