49
7.7.3 Fixing the containment belt to the scooter
Requirements:
• jaw spanner 12 mm
• jaw spanner 13 mm

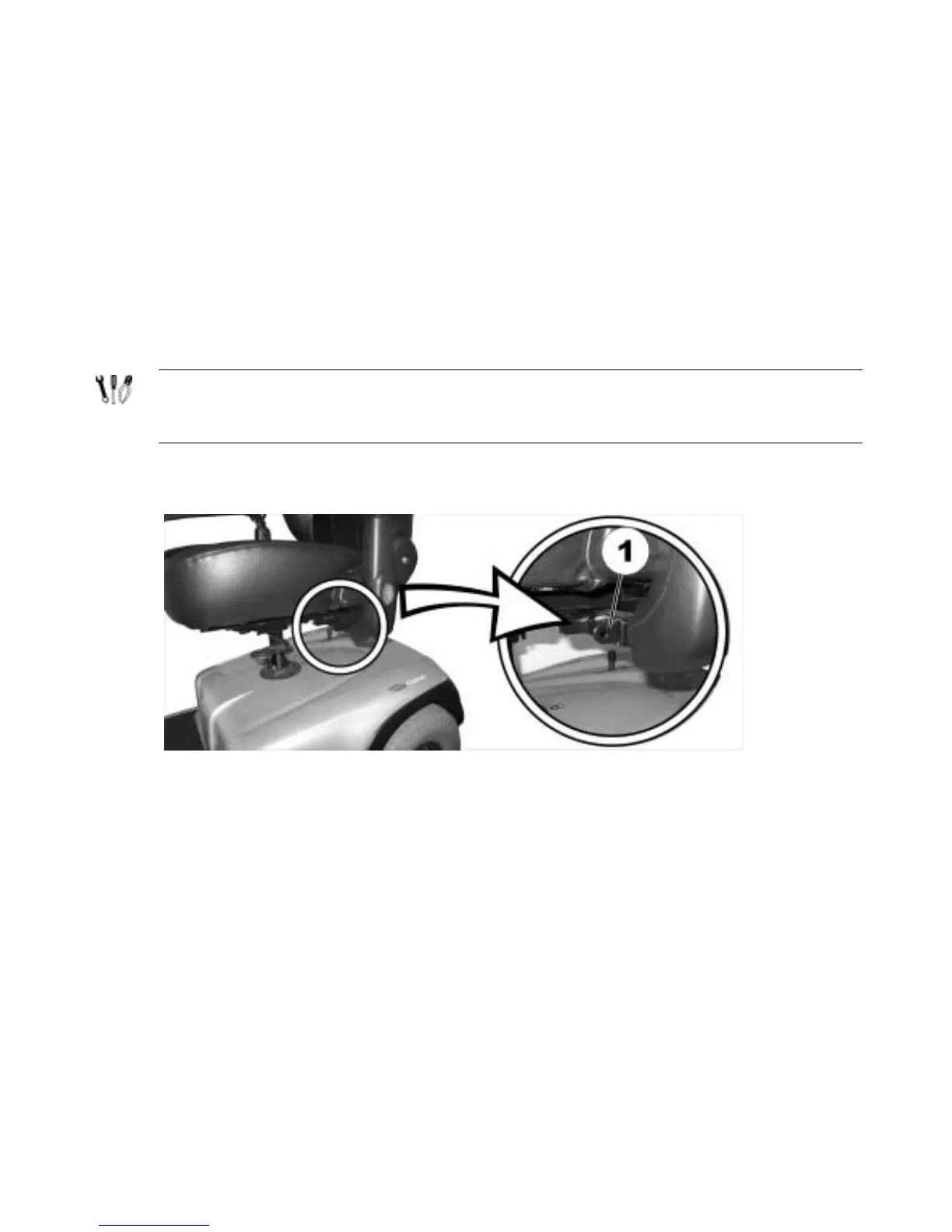

The fixing points (1) for attaching the belt are located under the seat (the figure shows only the left
hand side).
