Invacare Top End Excelerator - Excelerator Xlt;Xlt 2000 Assembly Procedures

11
1. Secure and adjust rear wheels (PROCEDURE 4).
2. Adjust hand crank assembly (PROCEDURE 5).
3. Adjust chain (PROCEDURE 7).
4. Adjust the optional cantilever brake cable (PROCE-
DURE 8).
5. Adjust parking brake (PROCEDURE 8).
6. Adjust back height and/or angle (PROCEDURE 9).
7. Adjust seat position/upholstery (PROCEDURE 10).
8. Adjust footrest (PROCEDURE 11).
9. Check that all hardware is tight.

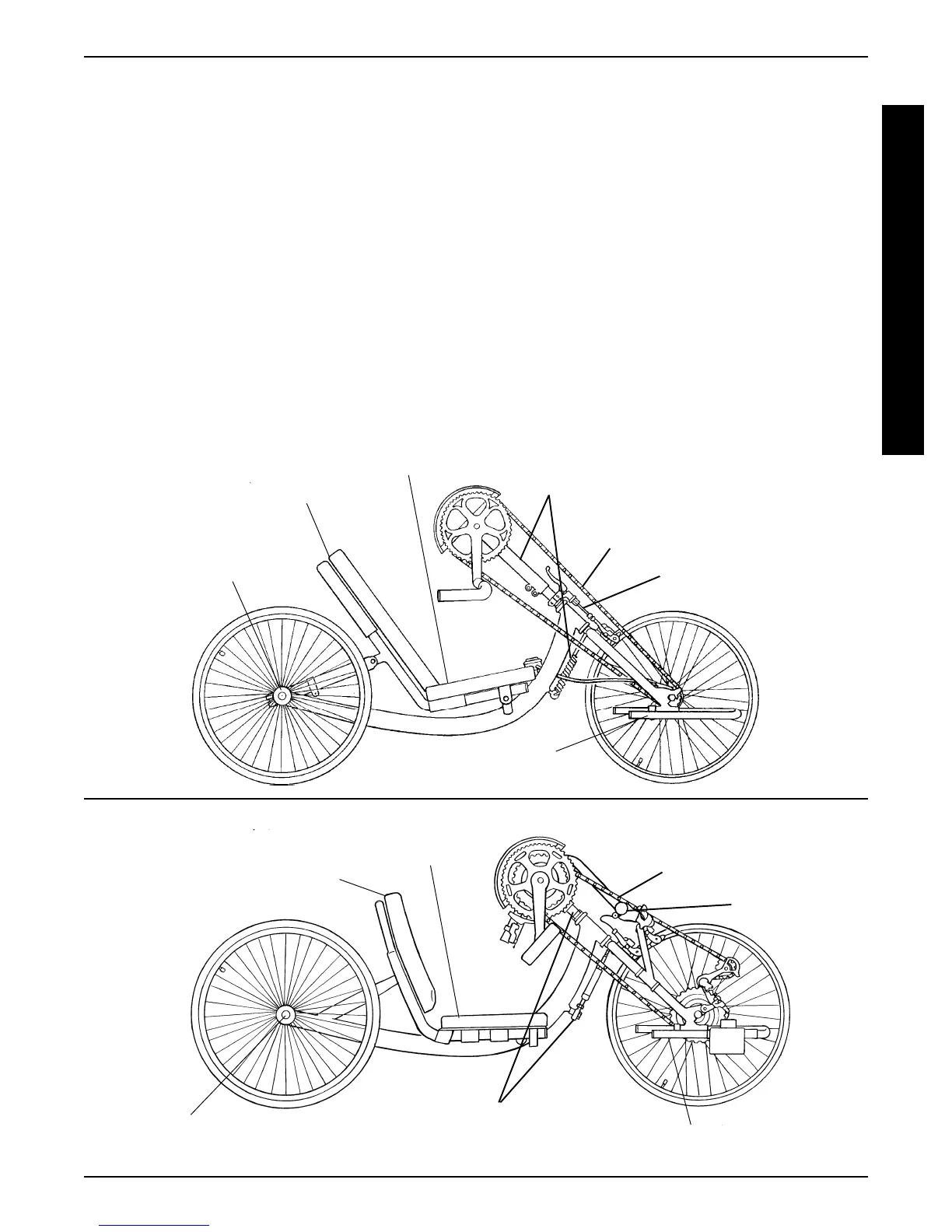

FIGURE 2 - EXCELERATOR XLT/XLT 2000 ASSEMBLY PROCEDURES
EXCELERATOR XLT/XLT 2000
ASSEMBLY PROCEDURES
(FIGURE 2)
NOTE: Invacare recommends that the following pro-
cedures be performed by a qualified technician.
Tools required:
Adjustable Wrench (10-12-inches)
5, 8 and 32 mm Wrench
3/16-inch Allen Wrench
1/4-inch Allen Wrench
1/2-inch Box Wrench
1/2-inch Socket Wrench
Two (2) Medium Screwdrivers (Flathead and Phillips)
PROCEDURE 3
ASSEMBLY PROCEDURES
A
S
S
E
M
B
L
Y
P
R
O
C
E
D
U
R
E
S
PROCEDURE 4
PROCEDURE 9
PROCEDURE 7
PROCEDURE 11
PROCEDURE 10
PROCEDURE 8
PROCEDURE 5
PROCEDURE 4
PROCEDURE 9
PROCEDURE 7
PROCEDURE 11
PROCEDURE 10
PROCEDURE 8
PROCEDURE 5
EXCELERATOR XLT
EXCELERATOR XLT 2000
