Invacare Top End Excelerator - Safety Helmet; Lateral Support

34
Water Bottle
Seat Positioning
Strap
Safety
Light
Step 3Step 2
Step 1
Horizontal
Handles and
Gloves
Flag
Tow Bar
Tri-Pin Quad
Handles

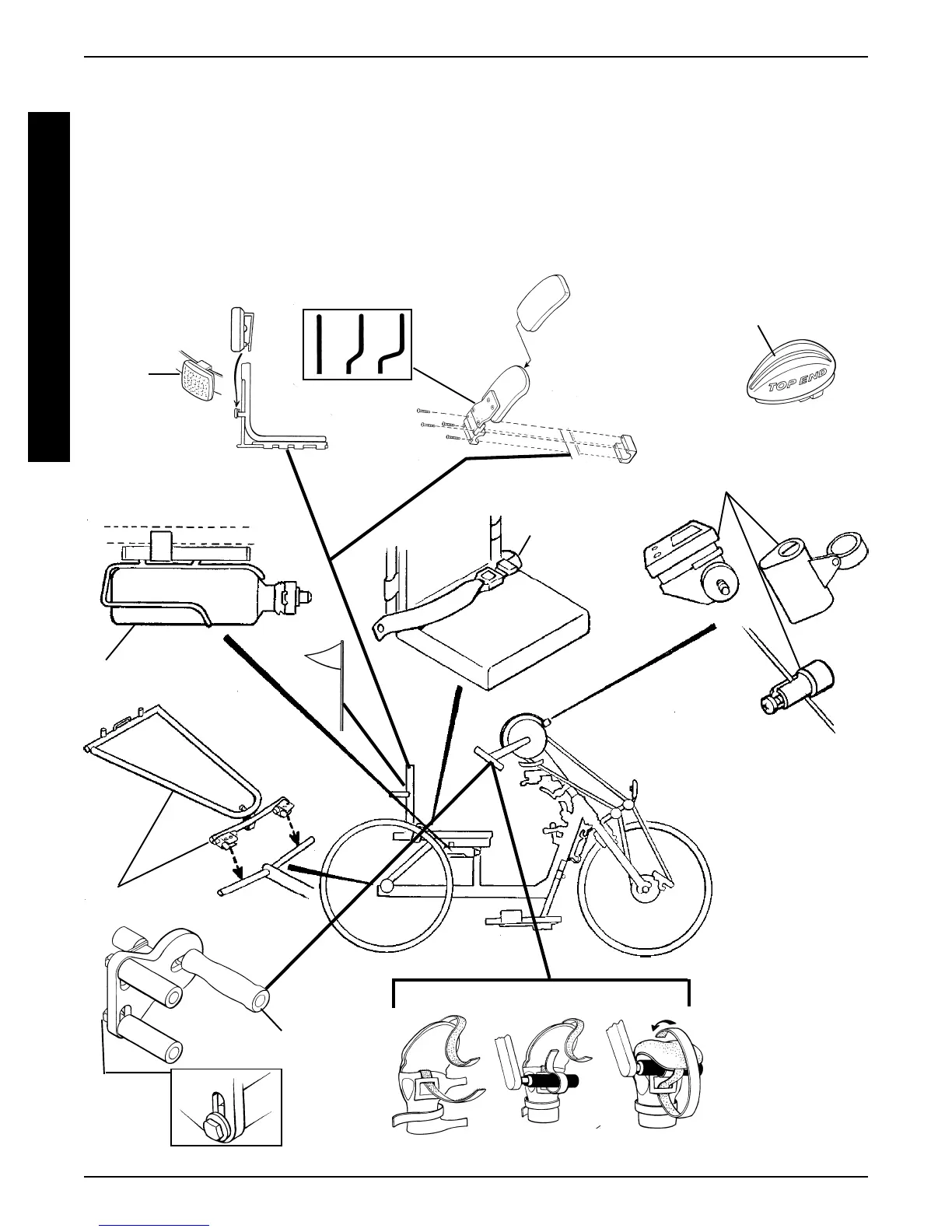

FIGURE 1 - INSTALLATION OF OPTIONS
SAFETY HELMET (FIGURE 1)
1. Secure helmet using the chin strap.
2. Ensure proper fit.
LATERAL SUPPORT (FIGURE 1)
1. Position lateral support on frame as shown.
2. Secure with button screws.
Helmet
Computer
3. Three (3) different brackets included for different
widths.
4. Change bracket by removing the existing button
screws and attach the new bracket with the exist-
ing button screws.
Lateral
Supports w/
Three Brackets
O
P
T
I
O
N
S
OPTIONSPROCEDURE 13
