Space to the wall
Above
Above
B
A

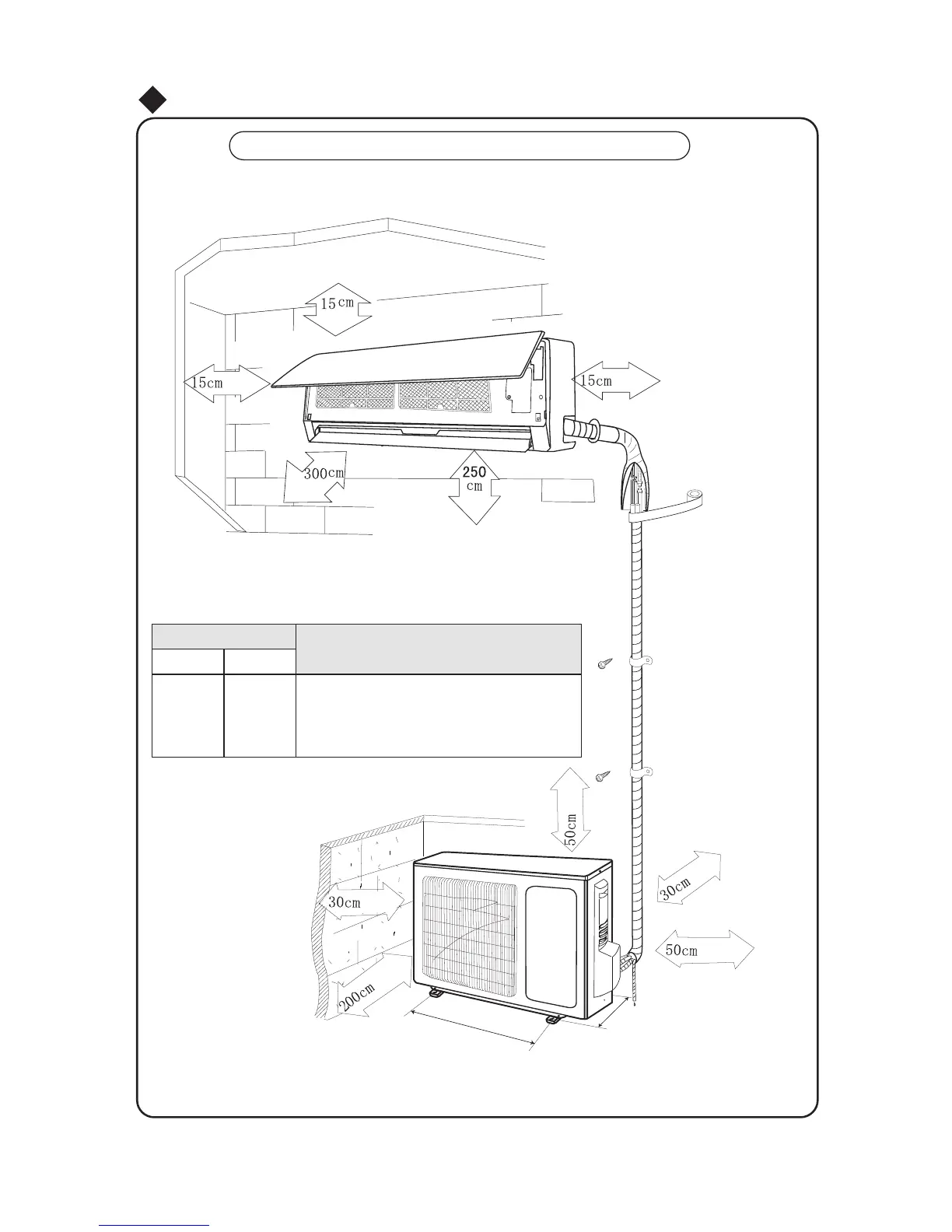

Installation dimension diagram
Installation dimension diagram
Space to the ceiling
Space to the wall
Space to the wall
Air outlet side
Space to the floor
Above
Above
Above
Above
Above
Space to the obstruction
Air outlet side
Space to the wall
Air inlet side
Above
Above
Above
The dimensions of the space necessary for correct
installation of the appliance including the minimum
permissible distances to adjacent structures
●
A B
The outdoor unit installation
dimension
Models
540(mm) 286(mm)
24K
17
