Matrix Mono
Inventor Matrix Mono Engineering Data Book
Matrix Mono
12
5.2.2 Mode set control

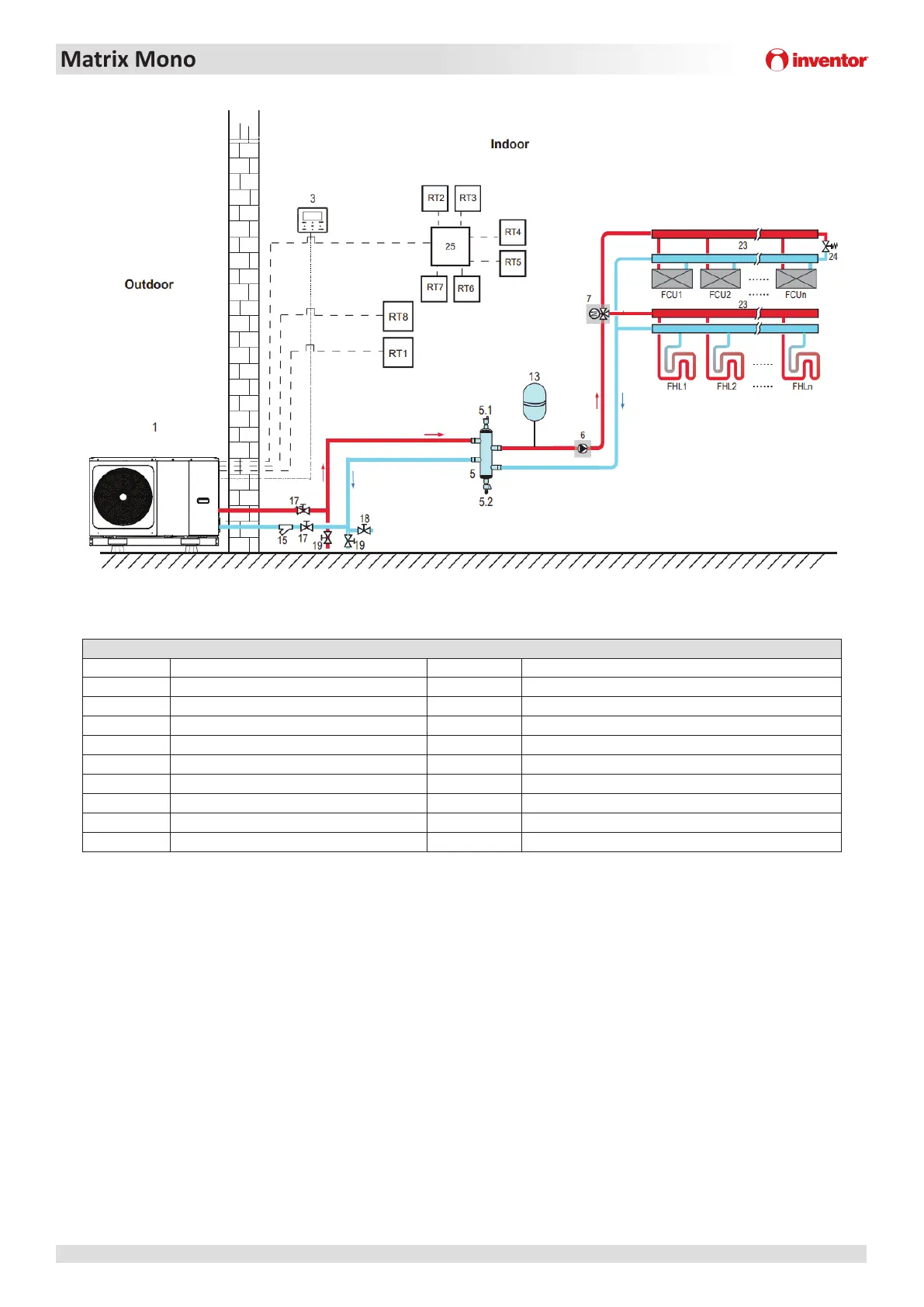

Figure 1-5.3: Applicaon 2- Mode set control
Legend
1 Outdoor unit 17 Shut-off valve (Field supply)
3 User interface 18 Filling valve (Field supply)
5 Balance tank (Field supply) 19 Drainage valve (Field supply)
5.1 Automac bleed valve 23 Collector/distributor (Field supply)
5.2 Drainage valve 24 Bypass valve (Field supply)
6 P_o: Zone A circulaon pump (Field supply) 25 Hydraulic adapter box (Oponal)
7 SV2: 3-way valve (Field supply) RT 1…7 Low voltage room thermostat (Field supply)
13 Expansion vessel (Field supply) RT8 High voltage room thermostat (Field supply )
15 Filter (Accessory) FHL1…n Floor heang loop (Field supply)
FCU1...n Fan coil unit (Field supply)
Notes:
1. The example is just for applicaon illustraon; please confirm the exact installaon method according to the installaon manual.
Space heang
Cooling or heang mode is set via the room thermostat, water temperature is set on the user interface. 1) When any “CL”
of all the thermostats close, system will be set at cooling mode. 2) When any “HL” of all the thermostats close and all “CL”
open, system will be set at heang mode.
The circulaon pumps operaon
1) When the system is in cooling mode, which means any “CL” of all the thermostats closes, SV2(7) keeps OFF, P_o(6) starts
running;
2) When
th
e system is in heang mode, which means one or more “HL” close and all “CL” open, SV2(7) keeps ON, P_o(6)
starts running.
