When the pipings are
disconnected, protect the
both openings from entering
moisture.

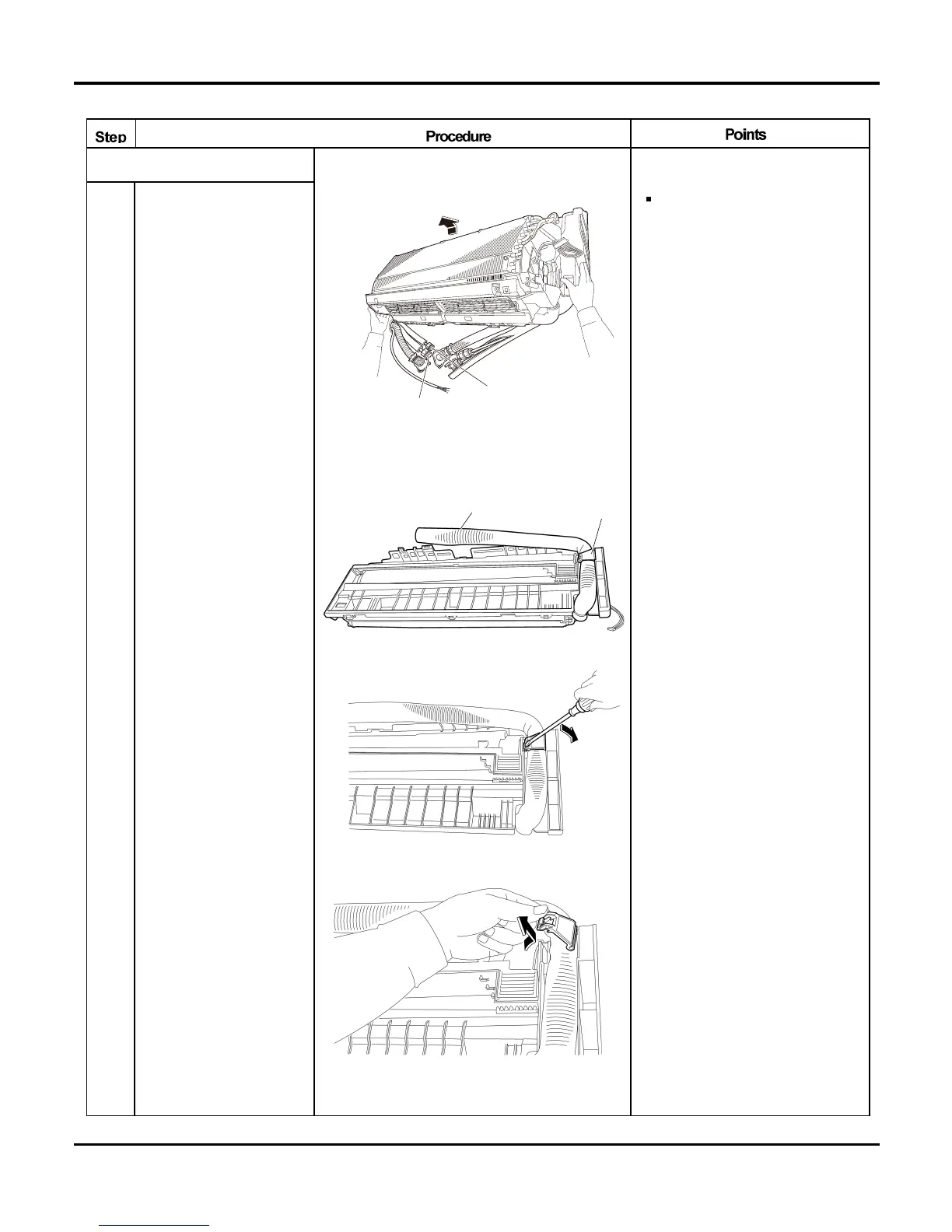

Re moval Pr ocedur e
9. Remove the indoor unit.
1
Remove the indoor unit
from the installation
plate.
2
Release the hook of the
piping fixture on the
back of the unit.
Gas piping
Liquid piping
(R8019)
Auxiliary piping
Piping fixture
