INVENTOR O1MVI-12WFR Service Manual

19

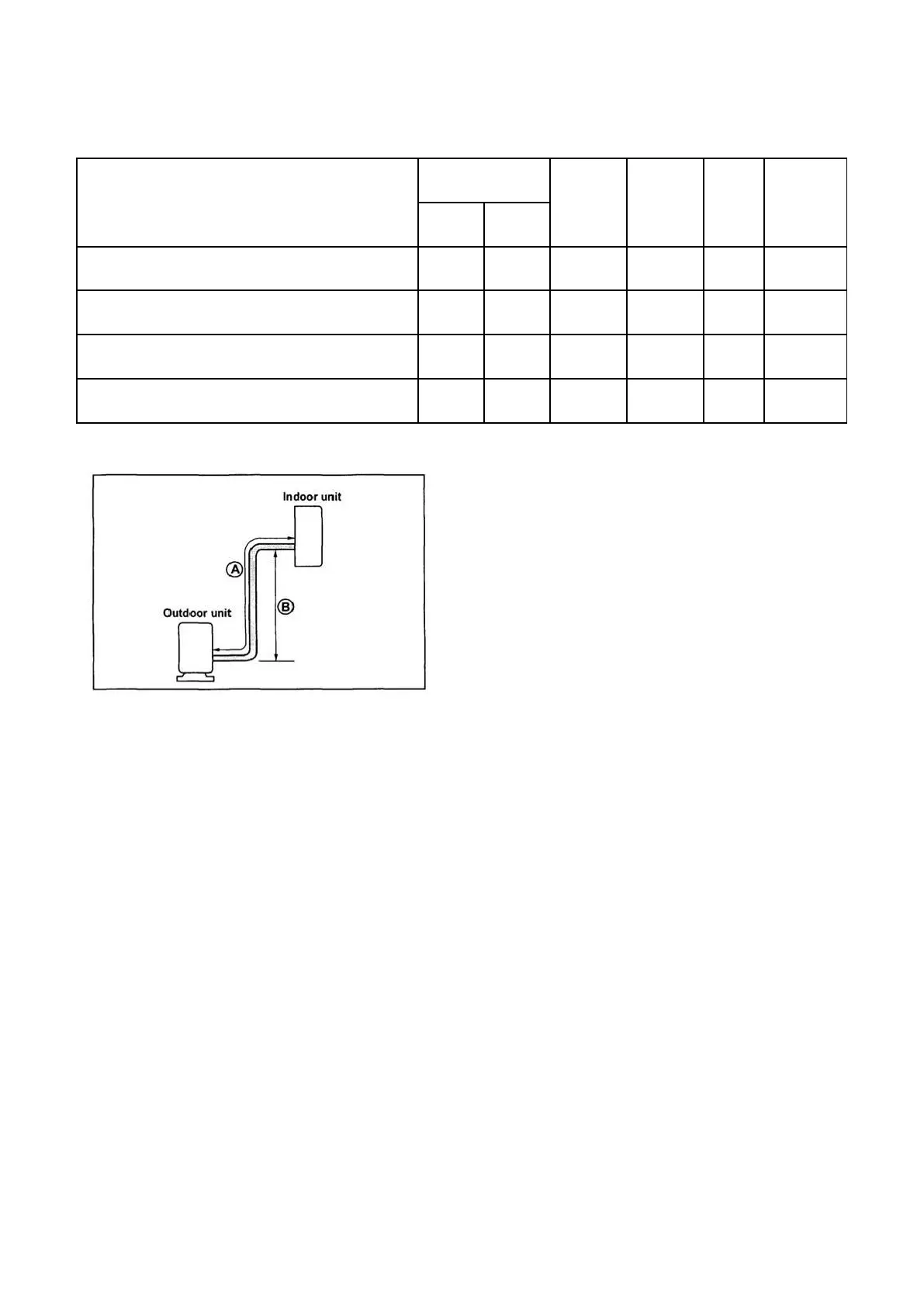

5.3 Pipe length and the elevation
The pipe length and refrigerant amount:
Model
Pipe size
Standard
length
(m)
Max.
Elevation
B (m)
Max.
Length
A (m)
Additional
refrigerant
(g/m)
Gas
Liquid
O1MVI-09WFR +
O1MVO-09
3/8’’
(Ф9.52)
1/4’’
(Ф6.35)
5
10
25
15
O1MVI-12WFR +
O1MVO-12
3/8’’
(Ф9.52)
1/4’’
(Ф6.35)
5
10
25
15
O1MVI-18WFR +
O1MVO-18
1/2’’
(Ф12.7)
1/4’’
(Ф6.35)
5
20
30
15
O1MVI-24WFR +
O1MVO-24
5/8’’
(Ф15.9)
3/8’’
(Ф9.52)
5
25
50
30
Caution:
The capacity test is based on the standard length and the maximum permissive length is based on the
system reliability.

INVENTOR O1MVI-12WFR Specifications

General

Cooling Technology	Inverter
Cooling Capacity	3.5 kW
Refrigerant	R32
BTU Cooling	12000 BTU
Power Supply	220-240V
