Invertek SUNSTAR SERIES User Manual

2-3
Ground
BTS
BATTERY
Solar Array
DC Load
or
GNDGND
PV+/
LOAD+
BAT+

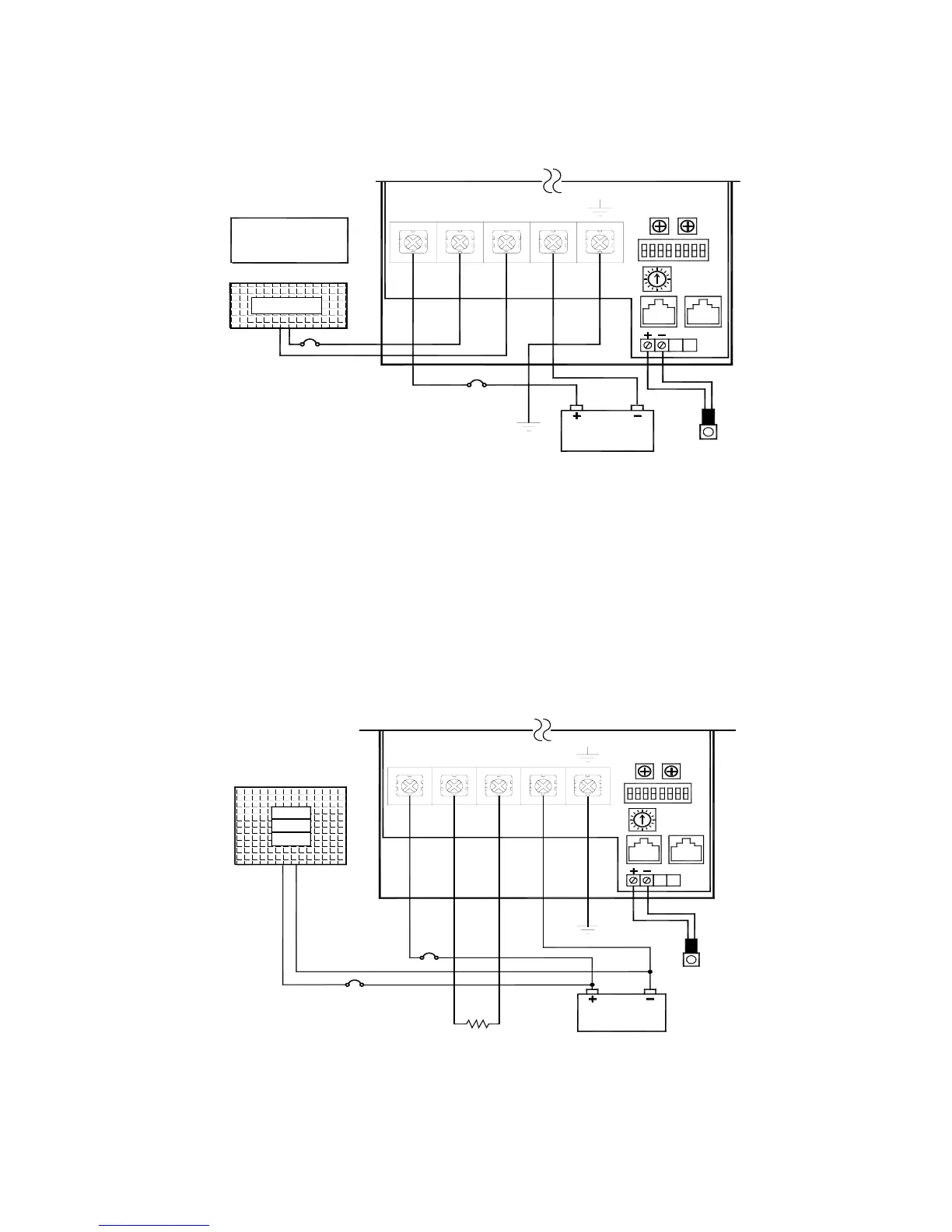

Installation wiring for solar charging or DC load control
Solar charging or DC load control:
Step 1: Open the access cover
Step 2: Mount the SunStar using the enclosed template.
Step 3: Adjust the 8 switches in the DIP switch. Each switch must be in the correct position.
Step 4: Attach the BTS if battery charging will be temperature compensated (not for load
control).
Step 5: Connect the battery power wires to the SunStar. Then connect the solar array wires
(or DC load wires).
Step 6: Close the cover.
※ Step 4 is optional.
DIVERSION
LOAD
Ground
BTS
BATTERY
Hydro
Wind
Solar
GNDGND
PV+/
LOAD+
BAT+
Installation wiring for DC diversion charge control
