AKIMIX Wood Stove Reference P619044
6. Technical operations
Intervention on the hopper and the gear motor (to be carried out only by a qualified service professional)
The electrical supply cable should be disconnected during maintenance.
Operation N°1
Operation N°2
Remove a foreign object from the hopper:
 Remove the two screws which hold down
the grid
 Remove the protection grid
 Remove the foreign object
 Replace the protection grid
Intervention on the gear motor
 Carry out operation N°1
 Remove the two screws inside the hopper and hold
the side panel
 Remove the side panel
 Carry out these steps in reverse to reassemble.

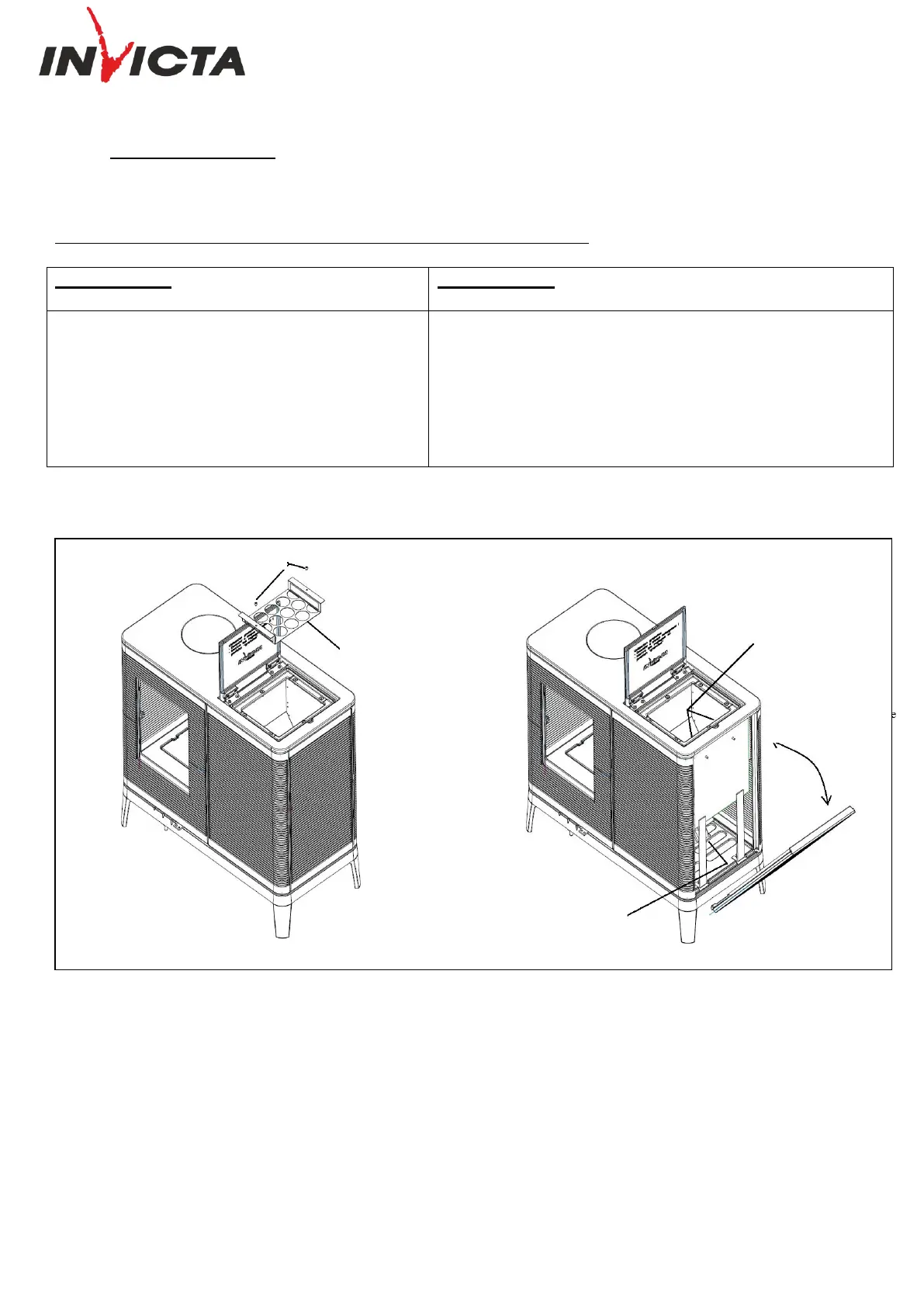

3 - Remove a foreign object from the hopper or intervention on the gear motor
Remove the two screws which hold
Remove the two side fixing
Remove the screws (accessible from
protection grid
Remove the side
panel
Operation N°2
Operation N°1
Access to the
gearing
