AKIMIX Wood Stove Reference P619044
LEGEND
Clip + PROTECTOR
Clip 6.35 x 0.8 + THERMO
BARED AT 6 MM
WHITE-COLLAR 100 X 2.5
Round 6.5 int
POSITION ON APPARATUS
Feed screw
Frame
Clip for switch / fuse
1 indicator 3-way green
Screw Akz960
Pas 7.62 vert. 3 Pol.
Insulated pipe
1 indicator 4-way
green

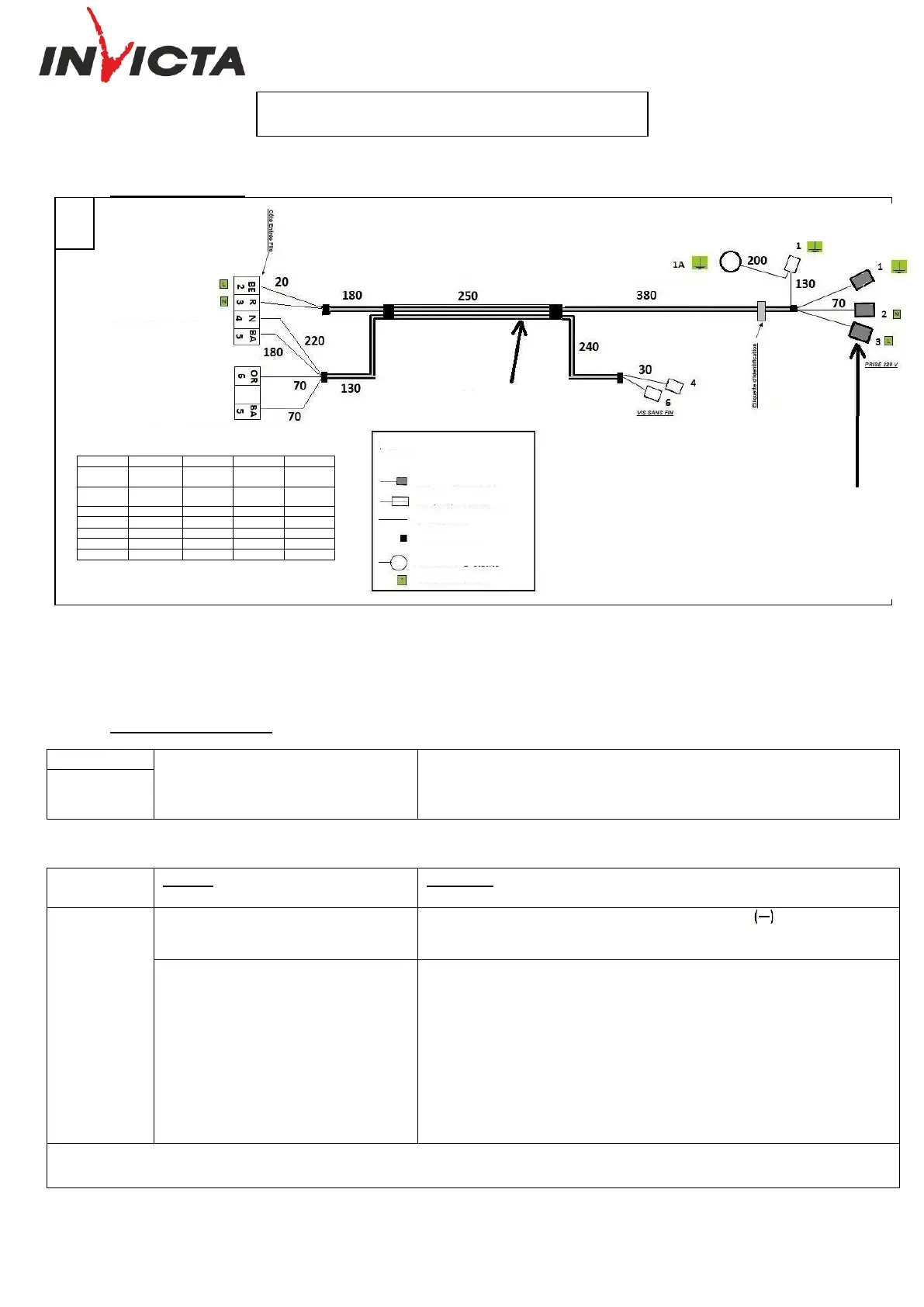

4. Wiring diagram:
Wire no.
Section
Colour
Standard
Width
1
0,75 mm 2
Yellow /
Green
H05 V2K
200
1A
0,75 mm 2
Yellow /
Green
H05 V2K
200
2
0,75 mm 2
BE
H05 V2K
900
3
0,75 mm 2
Red
H05 V2K
900
4
0,75 mm 2
Black
H05 V2K
870
5
0,75 mm 2
BA
H05 V2K
250
6
0,75 mm 2
Gold
H05 V2K
720
5. Technical problems:
Cause:
Solution:
Red and green
LED flashing
alternately
There was a power cut and the supply was
shut down automatically for security
reasons.
Restart the appliance and set the dial to “granules”.
Cause:
Solution:
The granule
feed screw is
blocked
The LED remains off after turning the dial.
 Check that the main switch is on
 and that the appliance is connected to the electrical supply
 Contact the installer
Granules may have built up and blocked the
feed screw in the distribution tube. Possible
causes:
 Recommended maintenance may not
have been carried out (cf. page 12)
 The crucible may be incorrectly
positioned in its holder
 The crucible seal may be damaged.
 The hearth door seal might be
damaged
 Keep the stove turned off, do not make a log fire and contact a
qualified professional to unblock the feed screw:
o Turn off the main power switch and disconnect the power
cable
o Carry out maintenance operations N°1 and N°2 (page 17)
o Combine
 the rotation of the screw with manual action on the
gear motor
 free granules blocked in the screw by accessing them
from the combustion chamber
Info: the size and type of granules may affect the feed supply. But in general this has no significant effect on operation of the stove. Nevertheless, it is possible for a
qualified service professional to adjust for the size and type of granules.
