Invicta REMILLY User Manual

Wood stove REMILLY Référence: 601384
Code 1
XD, le 03/07/2019 Page 3 of 9
APPLIANCE INSTALLATION INSTRUCTIONS.
To limit heating the walls neighbouring the wood burner to 65K (K = degrees Celsius above room temperature), the minimum distances
indicated in the diagram below must be followed.
If the neighbouring walls are made from non-combustible materials that are not damaged by heat ( the wall temperature can reach
200°C), these distances can be reduced to 150 mm.
600 mm
600 mm
Back wall
Side wall

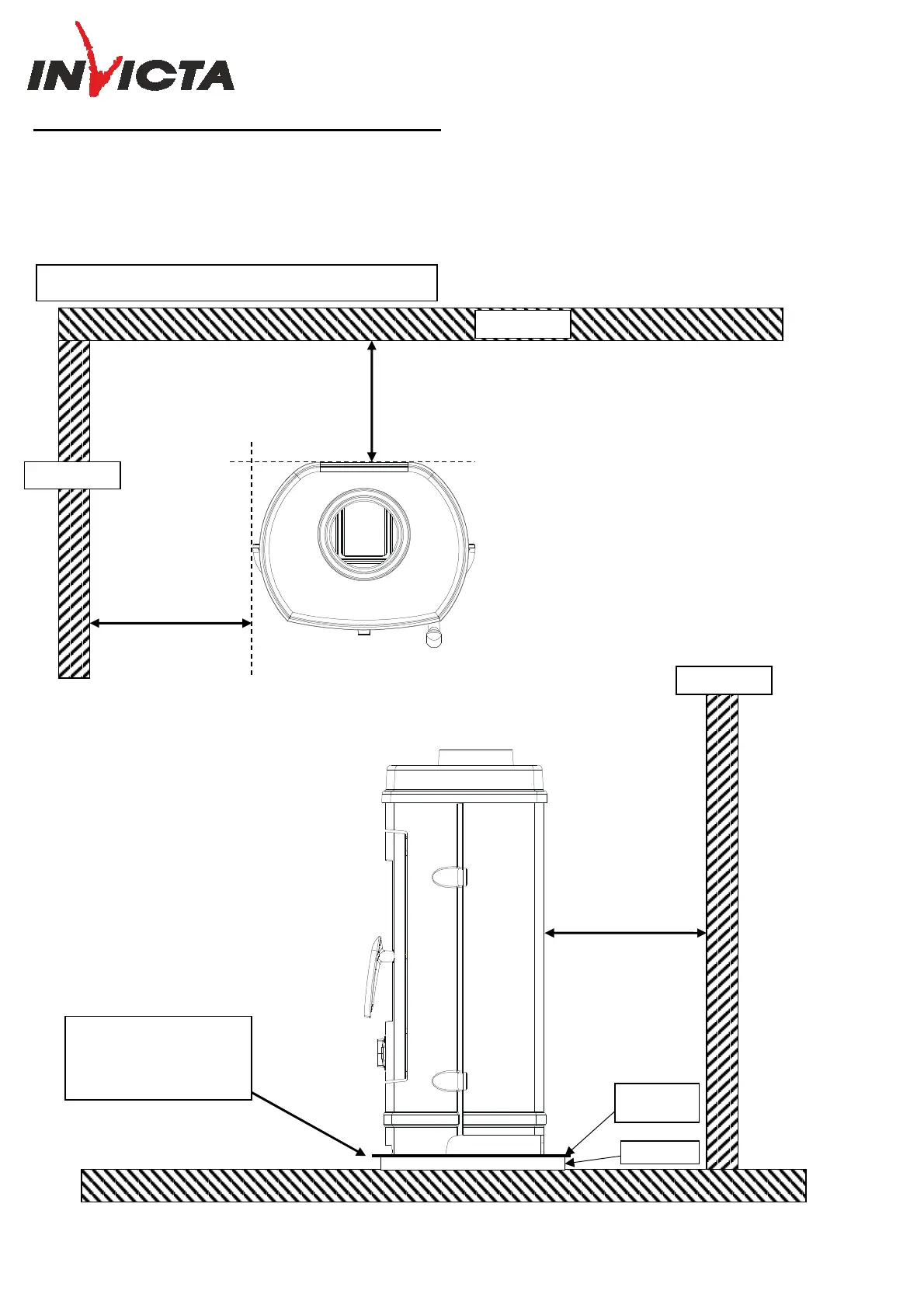

WOOD BURNER INSTALLATION TOP VIEW
600 mm
Back wall
50cm wide, 50 long, 45mm
thick concrete slab covered by a
reflective plate on the appliance
side (ceramic or stainless steel
type)
Concrete slab
Stainless steel
plate

Invicta REMILLY Specifications

General

Power	10 kW
Flue diameter	150 mm
Flue location	Top
Weight	116 kg
Fuel	Wood
Body material	Cast iron
Maximum log length	50 cm
Emissions	0.12% CO
Width	550 mm
Burn time	8 hours
