Invicta REMILLY User Manual

Wood stove REMILLY Référence: 601384
Code 1
XD, le 03/07/2019 Page 8 of 9

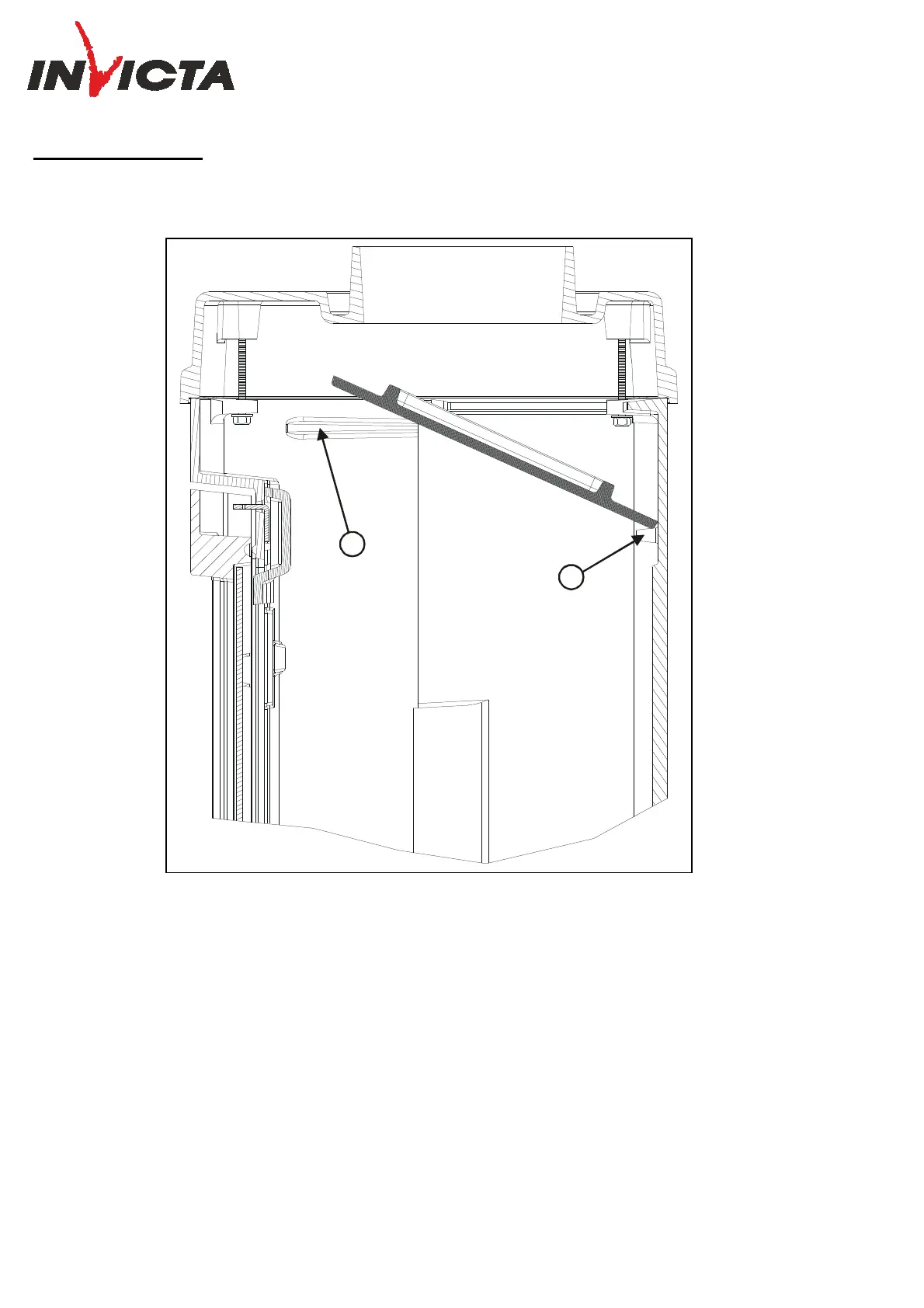

Deflector assembly
It is compulsory to fit the deflector before the wood burner is commissioned.
- Cut the ink between the deflector and the grate.
- Fit the deflector vertically in the appliance along the A bossing.
- Place it on the A bossing, sloping it towards the back of the appliance.
- Let is slide along the 1 bossing and place onto the B bossing.
A
B

Invicta REMILLY Specifications

General

Power	10 kW
Flue diameter	150 mm
Flue location	Top
Weight	116 kg
Fuel	Wood
Body material	Cast iron
Maximum log length	50 cm
Emissions	0.12% CO
Width	550 mm
Burn time	8 hours
