7. Rotational Features
1. Your monitor arm allows you to rotate your screen through 360˚ to view in portrait mode or landscape mode
providing the VESA mount on your screen is central.
Please note: Beware of trapping or breaking cables when rotating monitor.
DO NOT ROTATE MORE THAN 90˚ IN EACH MOTION.
IMPORTANT: Please make sure you use this product as displayed in the directions below.
Failing to do so could cause injury or damage to your desktop/work-surface.
Incorrect usage directions Correct usage directions
Troubleshooting:
Don’t panic! In case of any issues with compatibility or for any advice on fitting, please contact our team at
help@InvisionTechnology.co.uk and we will help you overcome any problems. All our products carry our
Compatibility Promise.
Your installation is now complete - Sit back & enjoy!
To activate your two year warranty please email your name,
order number and product ref MX150 to warranty@InvisionTechnology.co.uk
8
7
5 - Using Your Invision MX200 Ergonomic Monitor Arm
Setting the tension of the monitor arm to balance the weight of the monitor
Once fitted the screen may raise or lower depending on the monitors weight. From minimum
tension to maximum tension there are 19 full rotations. When adjusting make one full turn of the
Allen key and check by depressing the upper arm to see if the monitor is balanced evenly.
1. If the screen moves upwards of its own accord then adjust the tension using the 5mm Allen key (E) and
wind the Allen head screw in the minus (-) direction (clockwise).
2. If the screen moves downwards of its own accord then adjust the tension using the 5mm Allen key (E)
and wind the Allen head screw in the plus (+) direction (anti-clockwise).
Continue to adjust until the monitor weight feels equal to the tension of the monitor arm. It should
hold in place when positioning the monitor and not raise or lower of its own accord.

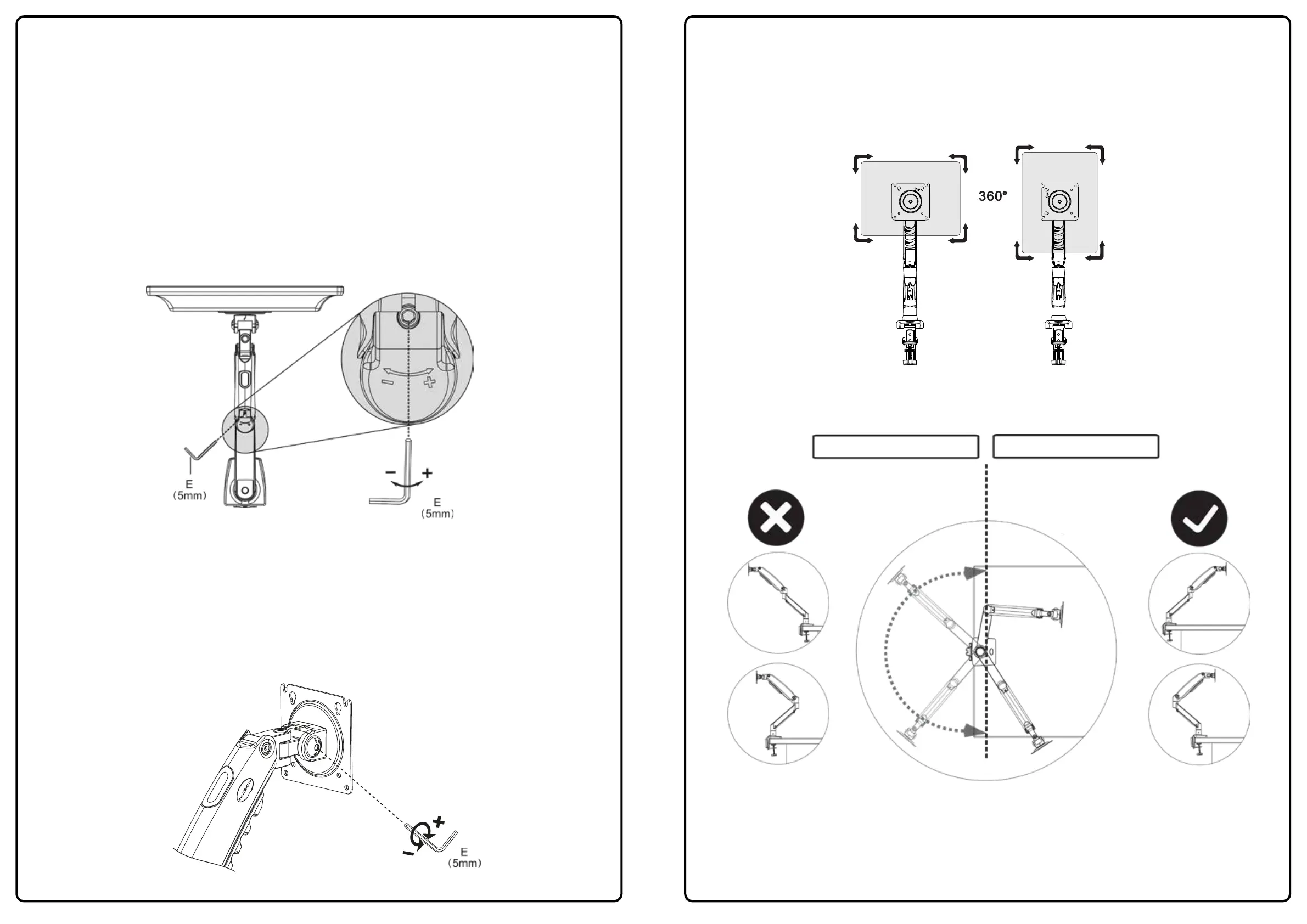

Diagram ‘R’
6 - Adjusting the Tilt Angle
The tilt can be set to your desired viewing angle by simply moving the screen backwards and forwards by
hand. If the screen moves freely you need to adjust the tilt tension mechanism.
1. To tighten the tilt adjustment use the 5mm Allen key (E) and turn the Allen key head adjustment screw in
the plus direction - see diagram 'S'.
Diagram ‘S’
