BPD series PV pumping inverter Installation guide
52
5 Installation guide
5.1 Unpacking inspection
Before unpacking the product, check the information on the name plate on the packing
box and the package of the product. Ensure that the product is the one you purchased
and the packing box is not damaged. Should you have any questions, contact the
supplier in a timely manner.
Packing list of a PV pumping inverter:
BPD0K7–2K2TN(AC)
BPD2K2TRAC(S)
BPD004TNAC
BPD004–5K5TRAC(S)
Inverter
1
Installation bracket
1
Operation manual
1
Expansion bolts
3 (M6 x 60)
4 (M6 x 60)
DC connector
1
2
Communication connector
1
AC connector
1 (2)
Keypad
1
Network cable
1
5.2 Preparation for installation
5.2.1 Installation location
Select the installation location based on the following requirements:

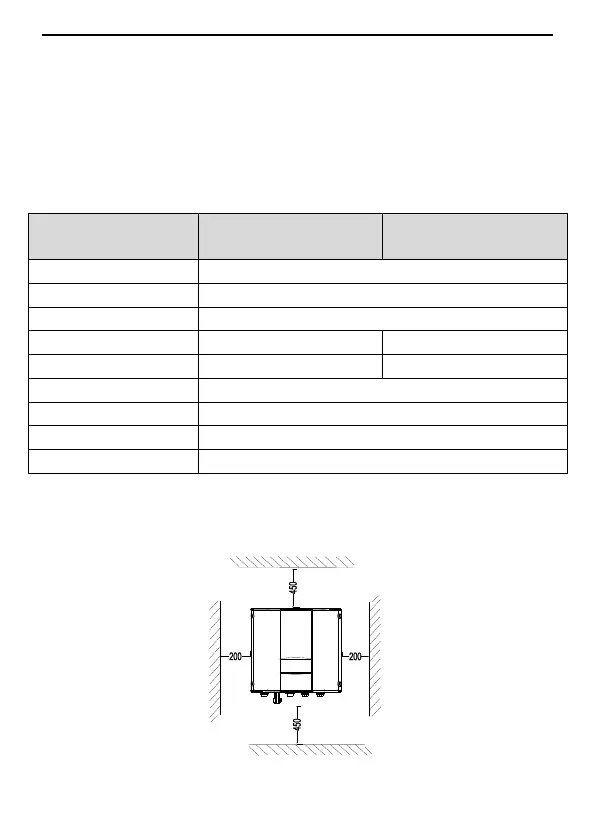

Figure 5.1 Installation spacing (mm)
