INVT GD200A-018G/022P-4 User Manual

GD200A series VFD Dimension drawings
-157-
VFD model
W1
W2
H1
H2
D1
Installation
hole
diameter
Weight (kg)
220G/250P–315G/355P
680
230
960
926
387.9
13
135

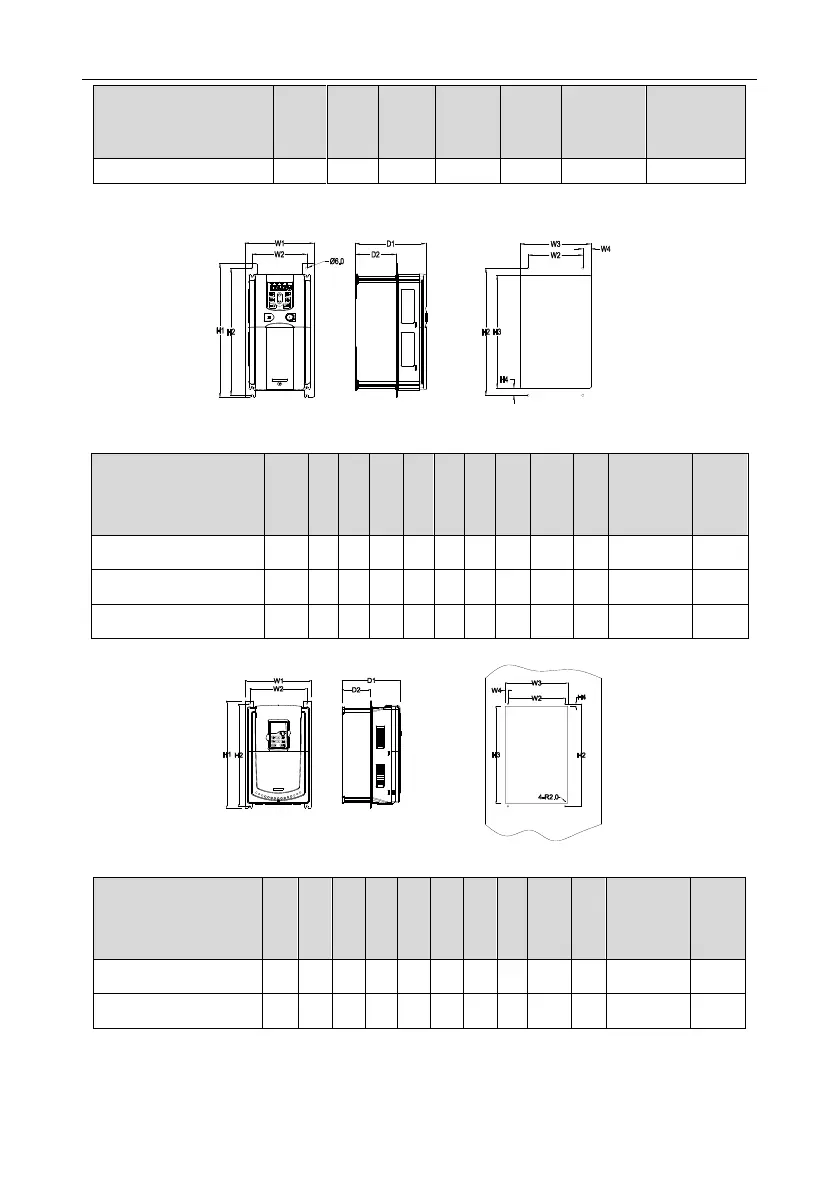

B.3.2 Flange mounting
Figure B-8 Flange mounting for the 0R7G–015G/018P models
VFD model
W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
Installation
hole
diameter
Weight
(kg)
0R7G–2R2G
150.2
115
130
7.5
234
220
190
13.5
155
65.5
5
1.9
004G/5R5P–5R5G/7R5P
170.2
131
150
9.5
292
276
260
6
171
84.5
6
3.2
7R5G/011P–015G/018P
191.2
151
174
11.5
370
351
324
12
199.6
113
6
5.9
Figure B-9 Flange mounting for the 018G/022P–030G/037P models
VFD model
W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
Installation
hole
diameter
Weight
(kg)
018G/022P
250
210
234
12
375
356
334
10
219.4
108
6
7.6
022G/030P–030G/037P
275
237
259
11
445
426
404
10
245.6
119
7
13
