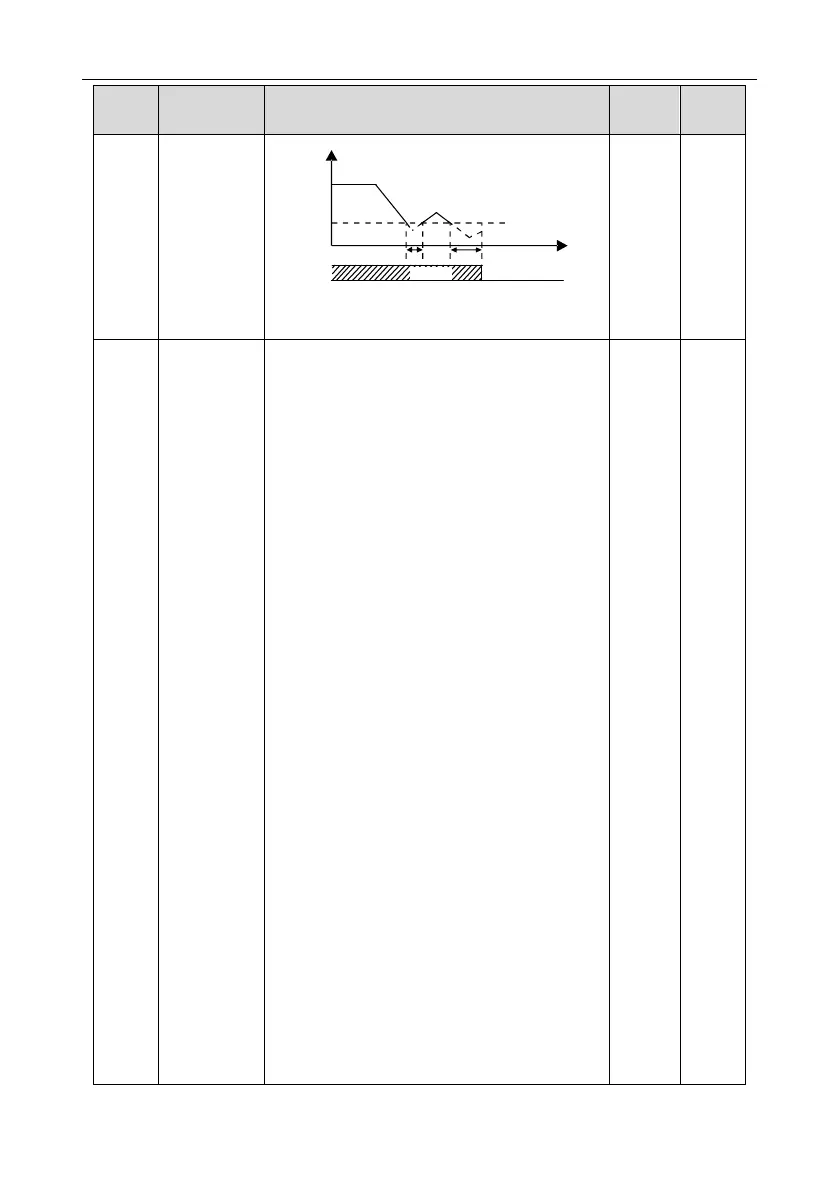

GD200A series VFD Function parameters
-84-
Function
code
Name
Description
Default
value
Modify
T
Output frequency
t1 t2
P09.11
T1T2, so the VFD
continues to work
t2=P09.12
Running
Fault output PIDE
PIDE
Setting range of P09.11: 0.0100.0%
Setting range of P09.12: 0.03600.0s
P09.13
PID adjustment
0x00000x1111
LED ones:
0: Keep on integral adjustment when the
frequency achieves the upper and low limit; the
integration shows the change between the
reference and the feedback unless it reaches the
internal integral limit. When the trend between the
reference and the feedback changes, it needs
more time to offset the impact of continuous
working and the integration will change with the
trend.
1: Stop integral adjustment when the frequency
achieves the upper and low limit. If the integration
keeps stable, and the trend between the reference
and the feedback changes, the integration will
change with the trend quickly.
LED tens: P00.08 is 0
0: The same with the setting direction; if the output
of PID adjustment is different from the current
running direction, the internal will output 0
forcedly.
1: Opposite to the setting direction
LED hundreds: P00.08 is 0
0: Limit to the maximum frequency
1: Limit to frequency A
LED thousands:
0: A+B frequency, the buffer of A frequency is
invalid
1: A+B frequency, the buffer of A frequency is
valid
ACC/DEC is determined by ACC time 4 of P08.04.
0x0001
