INVT GD200A-110G/132P-4 User Manual

GD200A series VFD Function parameters
-86-
Function
code
Name
Description
Default
value
Modify
P10.11
Running time of
step 4

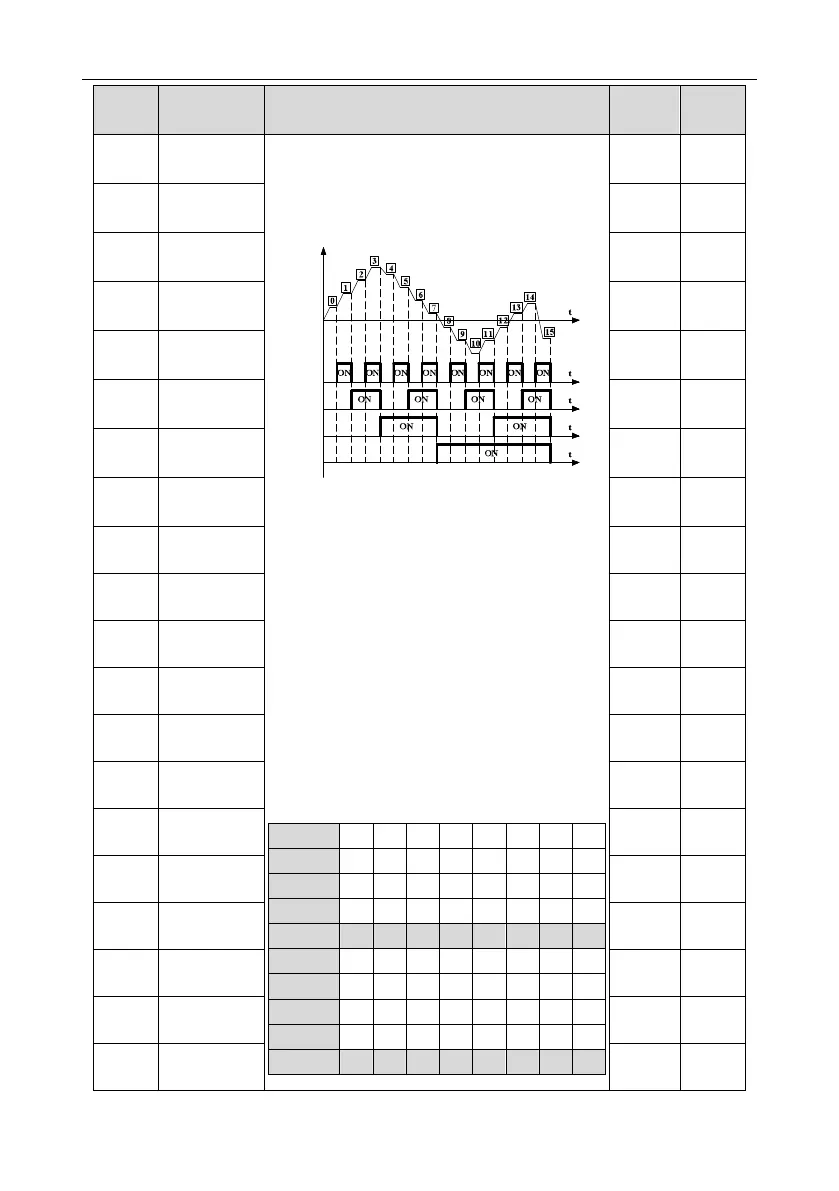

Goodrive200A series VFDs can set 16 steps
speed, selected by the combination of multi-step
terminals 1–4, corresponding to the speed 0 to
speed 15.
Output frequency
Terminal 1
(16)
Terminal 2
(17)
Terminal 3
(18)
Terminal 4
(19)
When terminal1= terminal 2= terminal 3= terminal
4=OFF, the frequency input manner is selected via
code P00.06 or P00.07. When all terminals aren’t
off, it runs at multi-step which takes precedence of
keypad, analog value, high-speed pulse, PLC,
communication frequency input. Select at most 16
steps speed via the combination code of terminal
1, terminal 2, terminal 3, and terminal 4.
The start and stopping of multi-step running is
determined by function code P00.06, the
relationship between
terminal 1 (16), terminal 2 (17), terminal 3 (18),
terminal 4 (19) and multi-step speed is as
following:
Trminal 1
OFF
ON
OFF
ON
OFF
ON
OFF
ON
Terminal 2
OFF
OFF
ON
ON
OFF
OFF
ON
ON
Terminal 3
OFF
OFF
OFF
OFF
ON
ON
ON
ON
Terminal 4
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Step
0
1
2
3
4
5
6
7
Terminal 1
OFF
ON
OFF
ON
OFF
ON
OFF
ON
Terminal 2
OFF
OFF
ON
ON
OFF
OFF
ON
ON
Terminal 3
OFF
OFF
OFF
OFF
ON
ON
ON
ON
Terminal 4
ON
ON
ON
ON
ON
ON
ON
ON
Step
8
9
10
11
12
13
14
15
0.0s
○
P10.12
Multi-step
speed 5
0.0%
○
P10.13
Running time of
step 5
0.0s
○
P10.14
Multi-step
speed 6
0.0%
○
P10.15
Running time of
step 6
0.0s
○
P10.16
Multi-step
speed 7
0.0%
○
P10.17
Running time of
step 7
0.0s
○
P10.18
Multi-step
speed 8
0.0%
○
P10.19
Running time of
step 8
0.0s
○
P10.20
Multi-step
speed 9
0.0%
○
P10.21
Running time of
step 9
0.0s
○
P10.22
Multi-step
speed 10
0.0%
○
P10.23
Running time of
step 10
0.0s
○
P10.24
Multi-step
speed 11
0.0%
○
P10.25
Running time of
step 11
0.0s
○
P10.26
Multi-step
speed 12
0.0%
○
P10.27
Running time of
step 12
0.0s
○
P10.28
Multi-step
speed 13
0.0%
○
P10.29
Running time of
step 13
0.0s
○
P10.30
Multi-step
speed 14
0.0%
○
