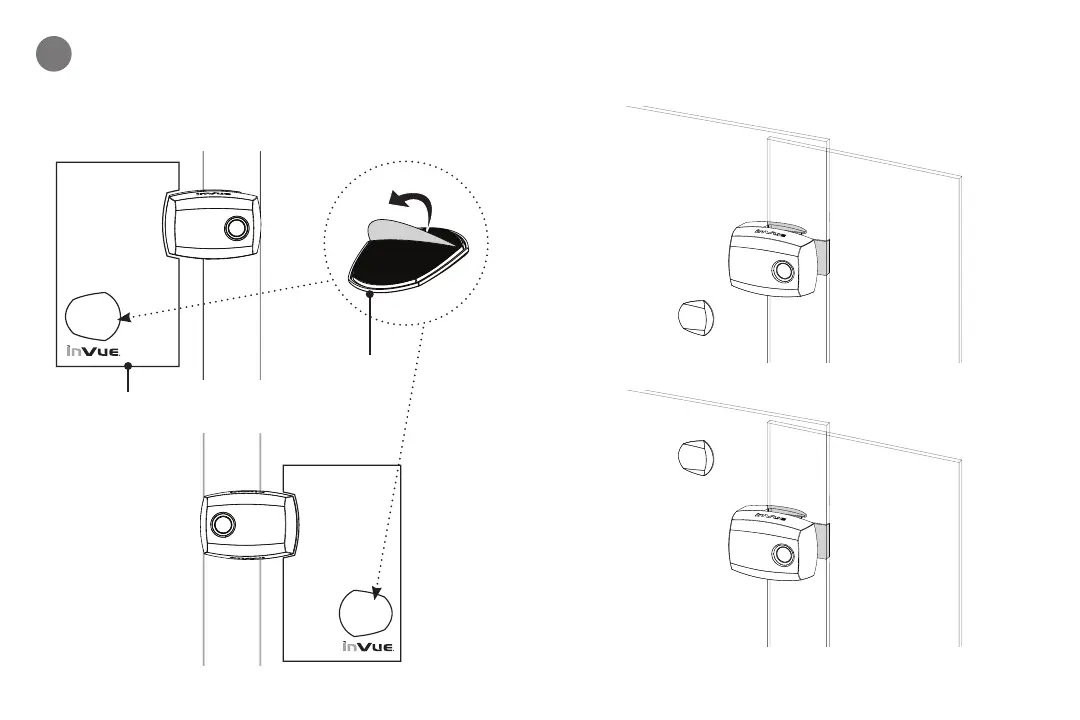

Fully close panels. Position template against lock body.
Remove clear film on panel handle. Position handle
inside template and press for 10 seconds against panel
to set adhesive.
9
Note: Panel Handle can be installed above or below lock.
PANEL HANDLE
TEMPLATE
PANEL
HANDLE
RIGHT
FRONT
PANEL
LEFT
FRONT
PANEL
