Overview
Review entire instruction guide before starting installation.
Instructions are intended for single swing-out panel door
applications.
Lock & Cabinet Specification
The Showcase Lock is designed primarily for wood
cabinets with glass swing-out doors. The lock can also
be affixed to wood or metal doors. Panel door thickness
can range from 4.8 mm – 6.35 mm (0.19” – 0.25”). Wall
thickenss of the cabinet structure must be greater than
12.7 mm (0.5”).
System Components
1. Showcase Lock (PL401)
2. Base Plate & Base Plate Template (included)
3. Alcohol Wipe (included)
4. IR2 Key (PK4400)
Tool Requirements
1. Pencil
2. Power Drill and Bit
3. Small Router/Dremel Tool
4. Phillips #1 Screwdriver

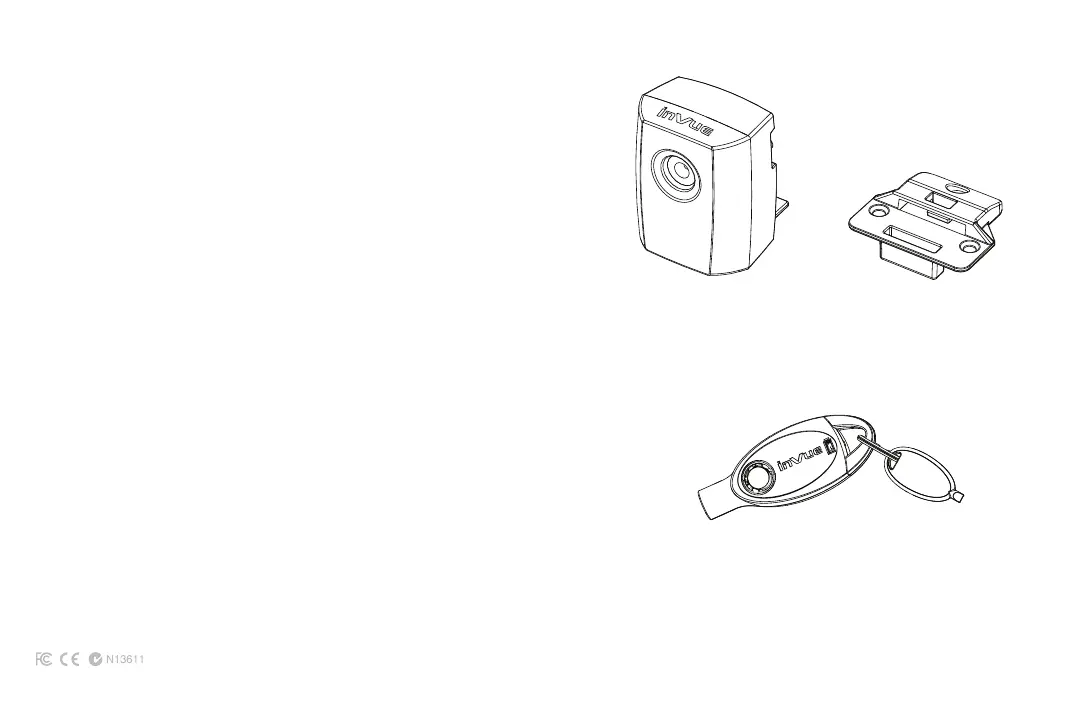

Showcase Lock
PL401
Base Plate
(Included with PL401)
IR2 Key
PK4400
