4 5

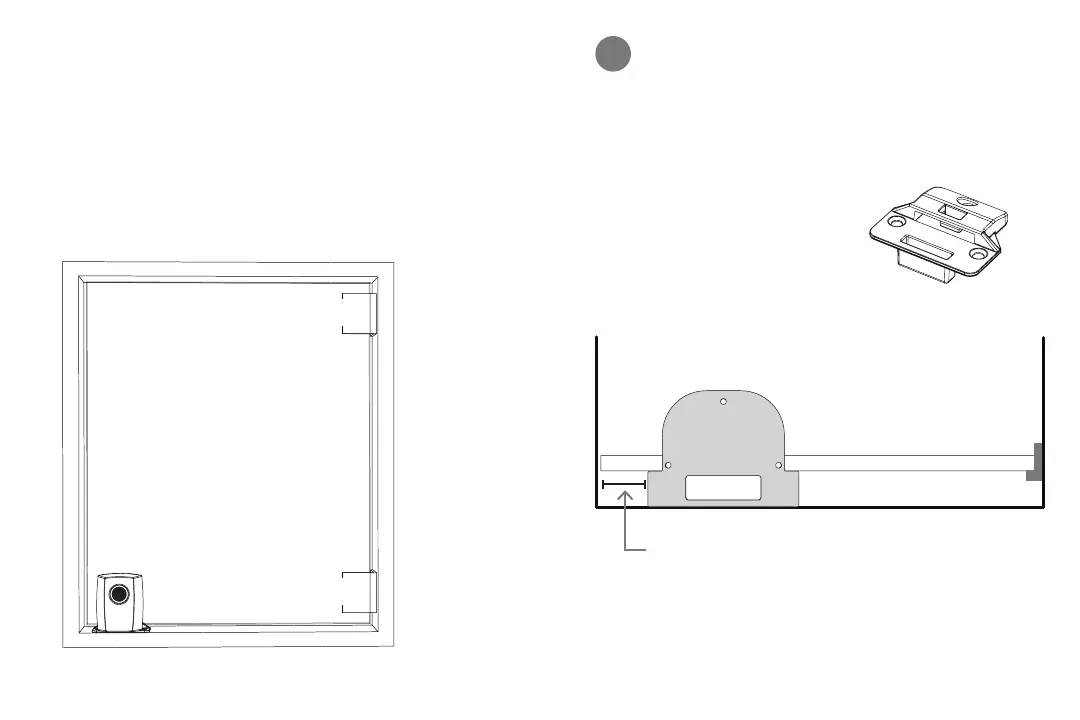

Determine location of lock. Align template with front
of glass and mark drill holes and routed pocket to as-
semble lock base.
Note: Illustrations below shows top view of cabinet.
Tip: Base plate and lock should be positioned close to
swing-out end of door panel. Base plate template should be
positioned no further forward than front edge of cabinet.
1
Glass
Template
Front of Cabinet
Base Plate
Place template 0 mm - 25 mm (0” - 0.98”) from edge of glass.
LOCK ASSEMBLY
Lock should be positioned on swing-out end of panel door
(opposite hinges).
Note: Illustrations in this guide are for installations with lock positioned
on left bottom corner of panel door. Instructions can be inverted if lock
is positioned on different corner.
Hinge
Hinge
