ION TAILGATER User Manual

3
- CHARGE FULLY BEFORE USE
- CHARGE FULLY BEFORE STORING
- FOR HELP VISIT IONAUDIO.COM
iPA77
MIC
VOLUME
MASTER
VOLUME
HOLD FOR SEEK
TUNE/
TRACK
CHARGE
RADIO
MIC
AUX
FM/AM/OFF

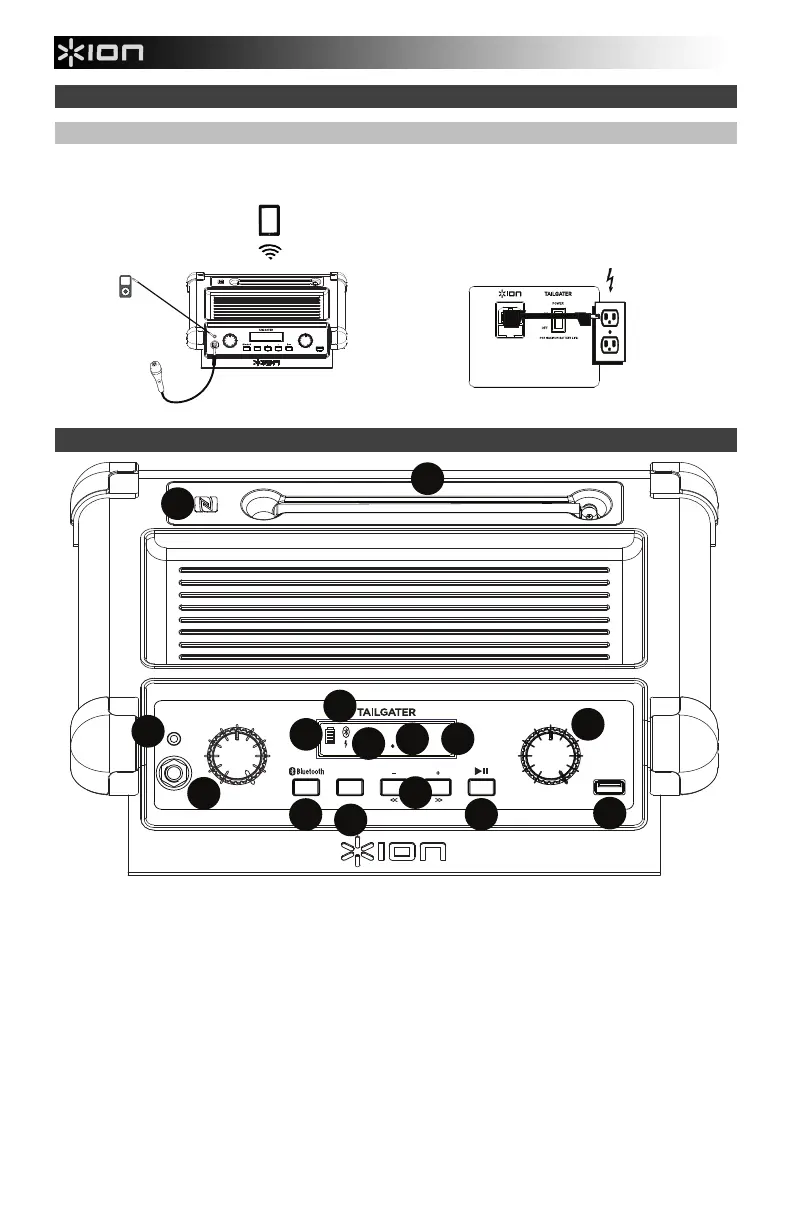

Quick Setup
Connection Diagram
Items not listed under the Box Contents are sold separately.
Features
1. Microphone Input with Volume Control (1/4"): This mono input accepts a 1/4" input such as a microphone, guitar, or
other musical instrument.
2. Auxiliary Input: This stereo 3.5mm (1/8”) input can be used to connect a CD player, MP3 player, or other audio source.
3. Bluetooth Button: Press the Bluetooth button to disconnect a paired Bluetooth device.
4. Bluetooth Icon: The Bluetooth icon will be lit solid when a device is paired to Tailgater. The Bluetooth icon will be off
when in pairing mode.
5. Master Volume Control: This adjusts the speaker’s main mix volume, which includes the Microphone Input, Auxiliary
Input, Radio, and the audio of a paired Bluetooth device.
6. Radio Selector: This button sets the radio to AM or FM or turns the radio off.
7. Display: Displays the current radio station, battery status, and Bluetooth status.
8. Charging Indicator: With the battery charging indicator, when the power cable is connected, movement of the top
battery segment shows the battery is charging. When fully charged, all battery segments will be lit without blinking.
When the power cable is disconnected, the battery segment shows the level of the battery.
9. Lightning Bolt Icon: The lightning bolt icon will illuminate when the IEC power cable is connected to wall power.
10. Tune/Track Buttons: Tap these buttons to tune in a radio station or go to the previous/next track on a Bluetooth
connected device. To "seek" (jump to the next available station), hold either button down for a few seconds until it
starts to seek a station. The unit will remember the last station it was on and start at that station when powered off and
on again.
11. Play/Pause: Press to play or pause a track from a connected Bluetooth device.
REAR PANEL
POWER
(for charging)
TOP PANEL
MICROPHONE
MP3
PLAYER
TABLET
MIC
VOLUME
MASTER
VOLUME
HOLD FOR SEEK
TUNE/
TRACK
CHARGE
RADIO
MIC
AUX
FM/ AM/ OFF
1
2
3
4
7
8
9
10
10
13
13
14
14
5
6
11
11
12
12
15
15

ION TAILGATER Specifications

General

Impedance	4 Ω
RMS rated power	16 W
Audio output channels	2.0 channels
Bluetooth	No
Microphone in	Yes
Headphone connectivity	-
Product color	Black
Battery life (max)	8 h
Power requirements	100-120VAC@60Hz; 220-240VAC@50Hz
Apple docking compatibility	iPod

Weight and Dimensions

Depth	241.3 mm
Width	317.5 mm
Height	355.6 mm
Weight	9163 g
