19

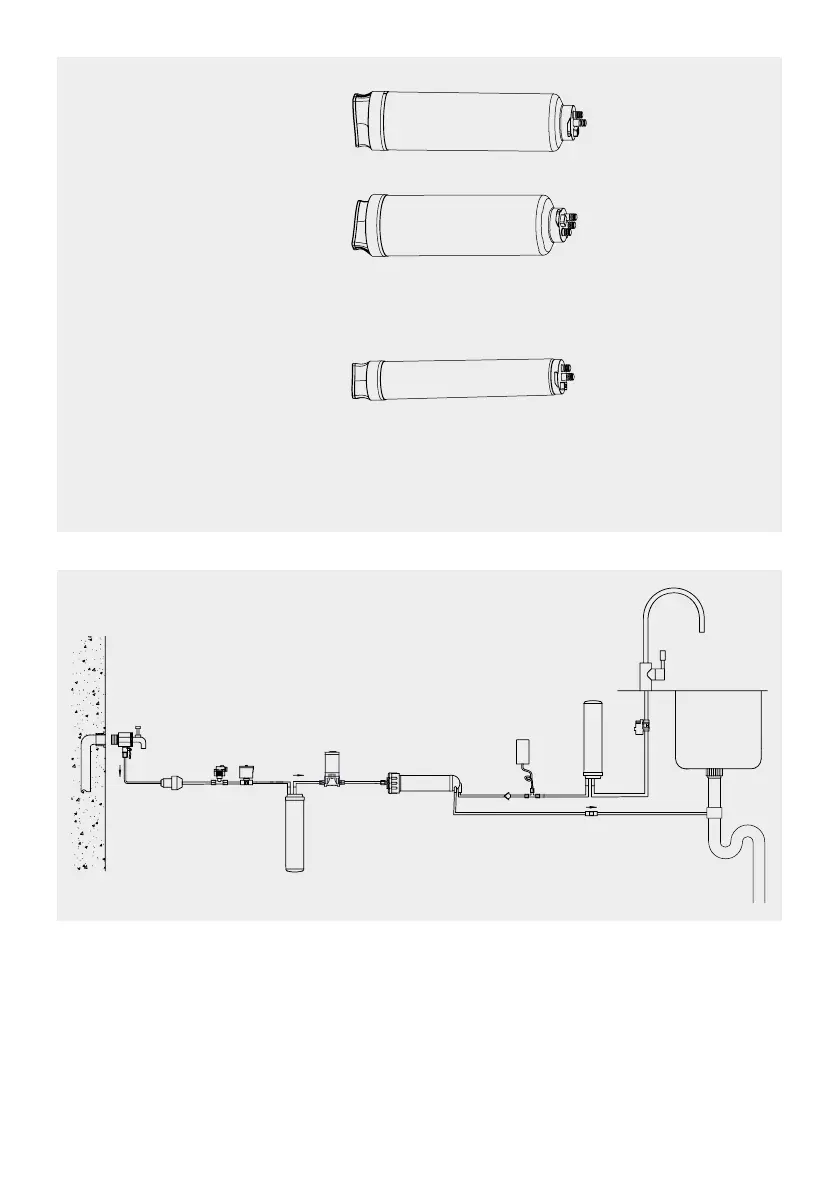

HYDRAULIC DIAGRAM
CF Prefilter
RO membrane
CB Postfilter
Power supply:
Electrical adapter:
Type of tap:
Production
Membrane cleaning system:
1 x combined sediment/carbon.
IN
IN
IN
OUT
OUT
OUT/PURE
WASTE
1 x 500 GPD membrane.
1 x Postfilter carbon.
24 VDC 4 A.
100-240 Vac 50 / 60 Hz: 24 Vdc.
Intelligent tap.
1,6 lpm.
(inlet water conditions: 450 µS, 15 ºHF, 17 ºC and 3 bar)
Automatic flushing (see 3.2)
Flow rate of osmosed water: 1,6 lpm.
Volume of osmosed water: 4,000 l.
Optimum working pressure: 2bar.
CF
RO
QS
CB
Restric.
LPS
HPS
Smart
faucet
SI
P
