114062B System Users Manual

CH A P T E R 5

FRONT PANEL DISPLAY

The Front Panel Display assembly consists of a 4 x 20 vacuum fluorescent display

and a 4-button keypad. The 4 buttons can navigate through all the menus by using

the left and right arrow keys, the ENTER and the ESCAPE.

The default menu will scroll between the status screen and the Identification/Date-

Time screen. To view the other menu options from the default screen, press the

ENTER key, and then press the left or the right arrow key to go to the desired menu.

The Menu’s available are Meter, Test Log, Event Log, Alarm Log, User Setup,

Factory Setup, Status, System Information, and Test Mode.

Once the desired menu has been reached, press the ENTER key to gain access to

this menu. Once into the menu, use the left or right arrow key to scroll to different

functions within the menu. Press the ENTER key again to gain access to the desire

function. To exit, press the ESCAPE key until the desired level has been reached.

(See figure 5.1)

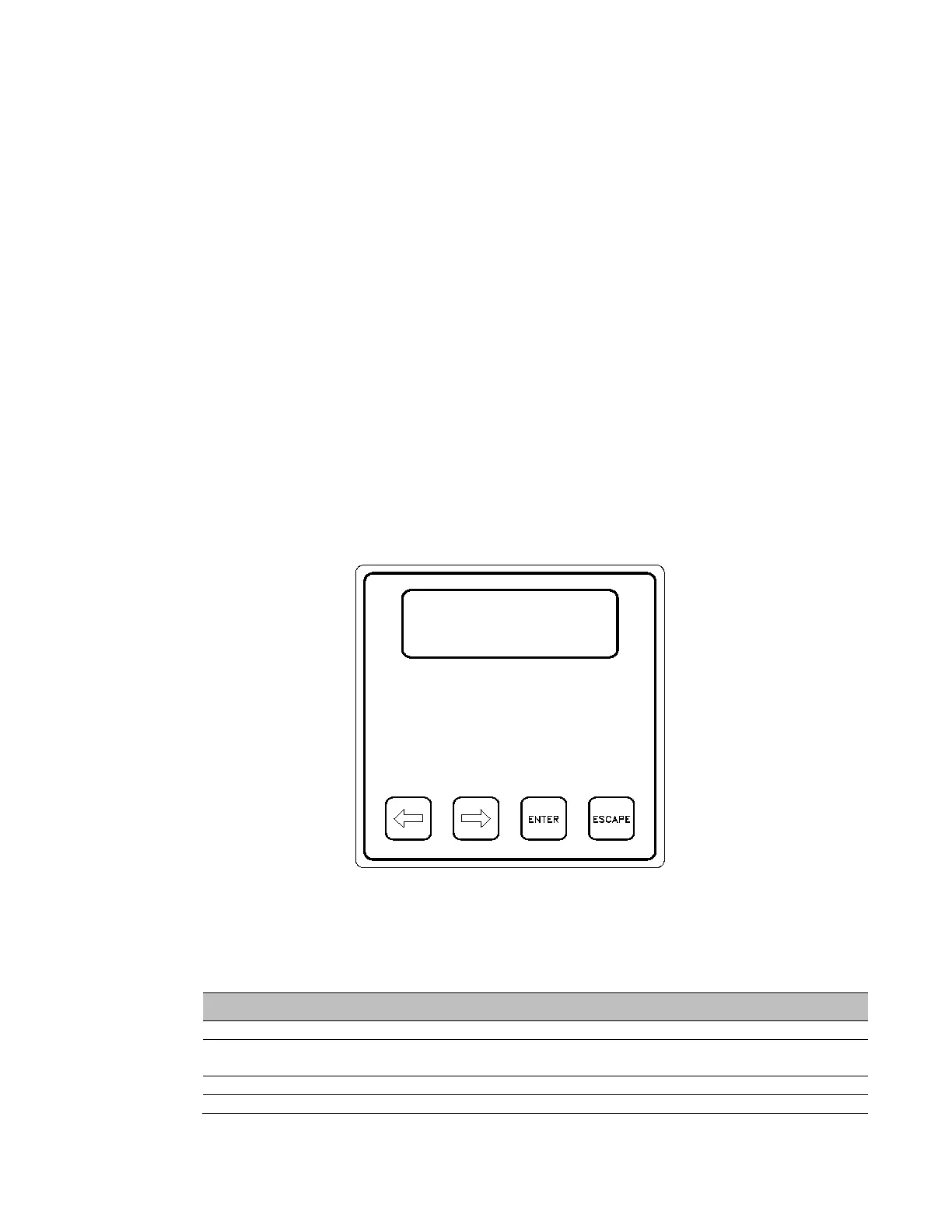

Figure 5.1 Front Panel Display

Control Panel Keypads

Table 5.1 Keypad Functions

Key Name Description

Enter (Blue)

Pressing this key will view menus.

Escape (Black)

Pressing this key will exit out of menus and return to the

Identification/Date-Time screen.

[ ◄ ] (Red)

This key functions as Left scroll key.

[ ► ] (Red)

This key functions as Right scroll key.

IOTA IIS Series User Manual
