IPC 2000 - Components and Fasteners; Component Identification; Fastener Selection by Wall Condition

Installation Hotline • 866.EZINPRO
Inprocorp.com • 800.222.5556 • 262.679.9010
World Headquarters S80 W18766 Apollo Drive, Muskego, WI 53150 USA
Installation Instructions
2000/2000W/G2-2000 Handrail
Please read all instructions before installing
handrail.
Components and fasteners
Wall Condion
Specified Fasteners
Inpro Part #
Steel Stud/Gypsum Wall
1/4-20 x 5” Phillips hex head Bolt with toggle wing and lock washer
HWK-909D
Concrete/Concrete Block
1/4-20 x 5” Phillips hex head bolt with lead anchor and lock washer
HWK-909C
Wood Stud/Gypsum Wall
1/4” x 5” Hex Head Wood Screw and lock washer
HWK-909W
801OW801OW
909OW-HWK
1/4” x 5” Hex Head Wood Screw and lock washer
Wood Stud or Wood Backer/Gypsum Wall (OSHPD)
Concrete/Concrete Block (OSHPD)
1/4” x 4” Torx Hex Washer Head Screw (Hil Kwik-Con II) and lock washer
HWK-909OC
Steel Stud or Metal Backer/Drywall (OSHPD)
20 x 5” Phillips hex head Bolt with lock washer and 1/4” Hil Toggler
1/4-
HWK-909OD
HW69#14 X 4” Indented hex washer, zink-plated TEK SCREW16 gauge steel Backer/Gypsum wall
Wood Stud/Gyspum Wall
1/4" x 3" Hex head wood screw and lock washer
HWK-40001SSW
Steel Stud/Gypsum Wall
1/4-20 x 3” Phillips hex head Bolt with toggle wing and lock washer
HWK-40001SSD
Concrete/Concrete Block
1/4-20 x 3” Phillips hex head bolt with lead anchor and lock washer
HWK-4001SSC

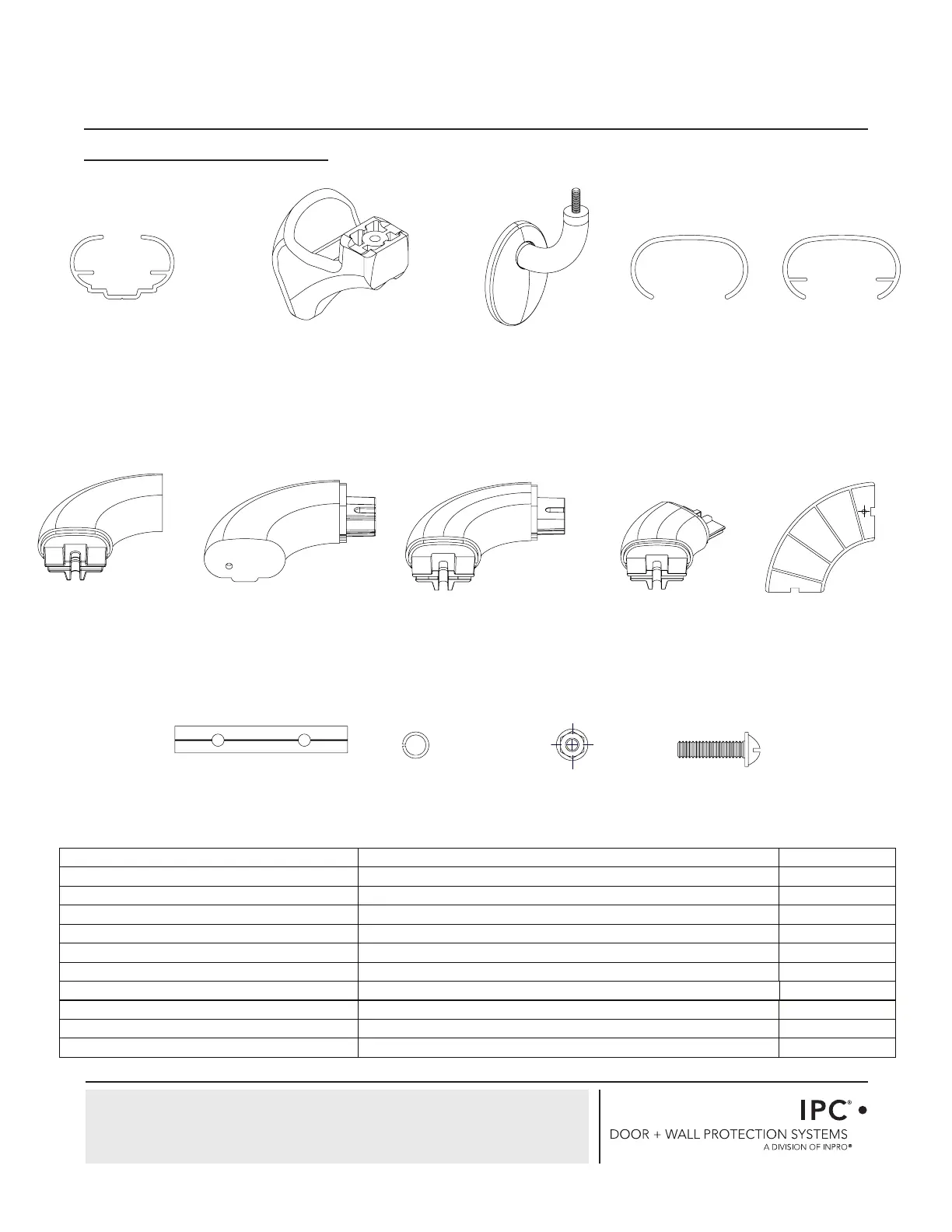

2000A
CONTINUOUS
ALUMINUM RETAINER
2001
MOUNTING BRACKET
2004
INSIDE/OUTSIDE
CORNER
2005
BOTTOM OF RETURN
2003
RIGHT RETURN
2002
LEFT RETURN
906
SPLICE
2000V
COVER
LOCK WASHER
SPRING REGULAR
1/4"
FLANGED SCREW
HEX NUT
1/4-20
PAN HEAD BOLT
1 1/8” SLOTTED
2001SS
MOUNTING BRACKET
2000HR REVEAL
STANDARD ON
2000W, G2-2000
2004135
INSIDE/OUTSIDE
CORNER
