IPC 2000 - Exploded View Assembly

Installation Hotline • 866.EZINPRO
Inprocorp.com • 800.222.5556 • 262.679.9010
World Headquarters S80 W18766 Apollo Drive, Muskego, WI 53150 USA
Installation Instructions
2000/2000W/G2-2000 Handrail
Please read all instructions before installing
handrail.

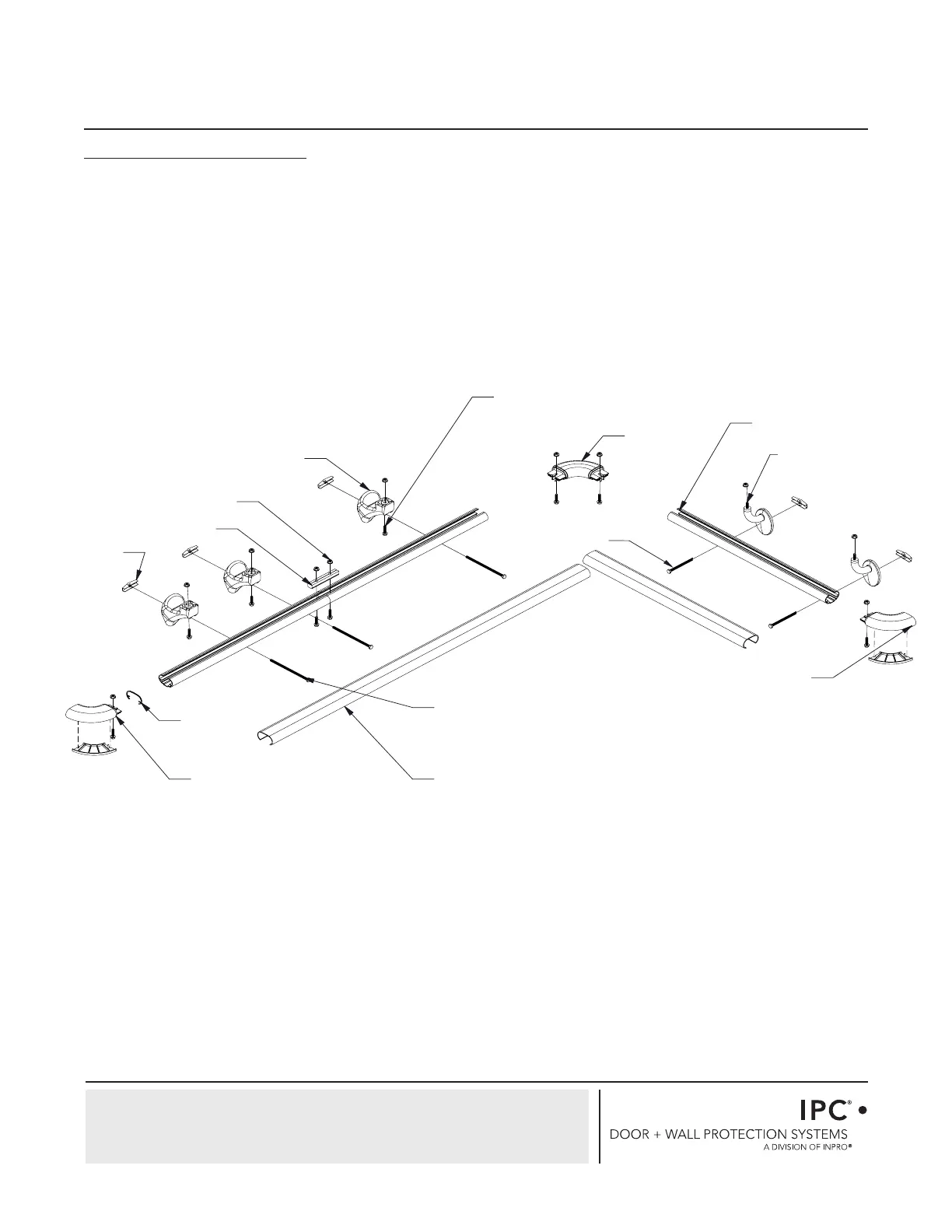

Exploded view assembly
2002
RETURN
LEFT
2003
RETURN
RIGHT
2001
MOUNTING BRACKET
2004
INSIDE/OUTSIDE
CORNER
HANDRAIL SPLICE
1/4-20 FLANGE
NUT
1/4-20X1"
SLOTTED PAN
HEAD BOLT
1/4-20X5"
PHILLIPS HEX
HEAD TOGGLE
BOLT
1/4” TOGGLE
2000 VINYL
COVER
2000 CONTINUOUS
ALUMINUM RETAINER
2001SS
MOUNTING BRACKET
2000HR
REVEAL
1/4-20X3"
PHILLIPS HEX
HEAD TOGGLE
BOLT
