For installers and professionals
- 14 -

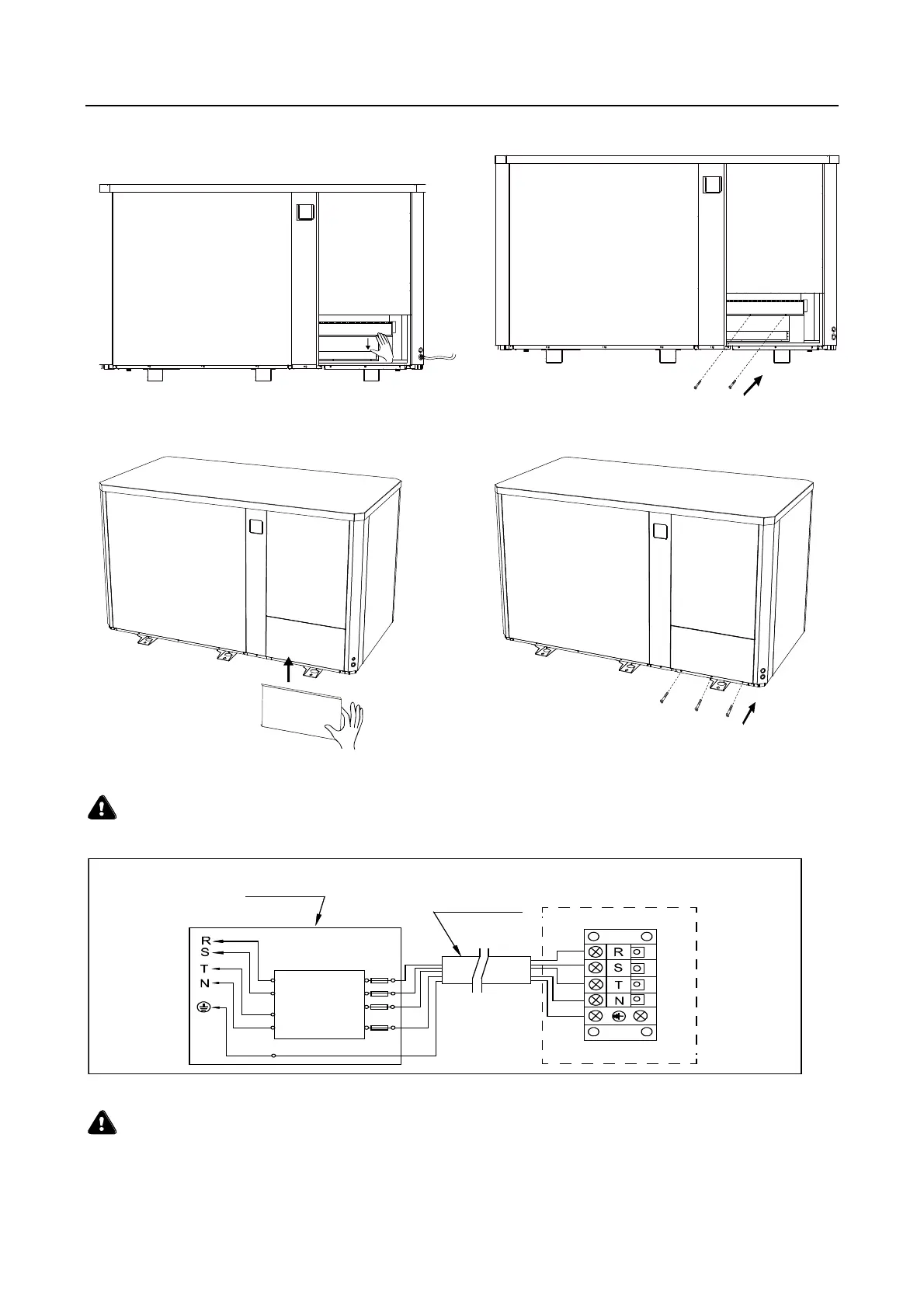

② Restore the internal panel
③ Fix the internal panel by two screws
Restore the panel
Fix the panel by three screws
2. Wiring diagram
Note:
Must be hard wired, no plug allowed.
For your safe use in winter, it’s strongly recommended to equip heating priority function.
For the detailed wiring diagram, please refer to Appendix 1.
Distribution Box (Customer prepare)
Power Cord
Swimming Pool Heat Pump Wiring Board
Power Supply
400V 50Hz
Breaker
For power supply: 400V 50Hz
Earthing
Fuse
To Next Page
