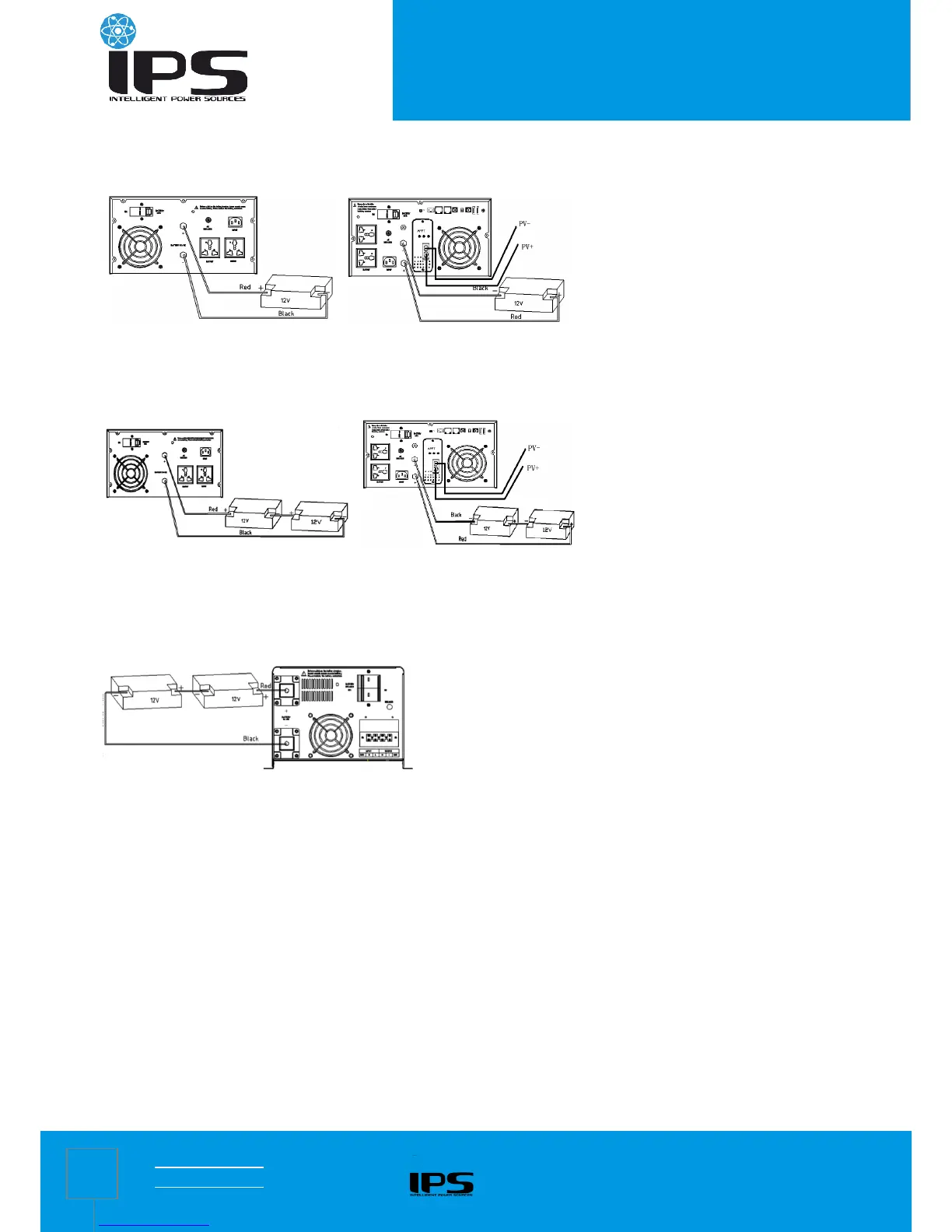

3.2.2 Connect external battery
300W / 600W / 1000W inverter battery connection
Optional model (with MPPT modules)
(Note that the red cable is connected to the positive terminal, black cable is connected to the negative terminal)
1600W inverter battery connection
Optional model (with MPPT modules)
(Note that the red cable is connected to the positive terminal, black cable is connected to the negative terminal)
2500W / 3500W inverter battery connection
(Note that the red cable is connected to the positive terminal, black cable is connected to the negative terminal, and 2500W
battery cable is more than 35mm
2
, 3500W battery cable is more than 50 mm
2
)
