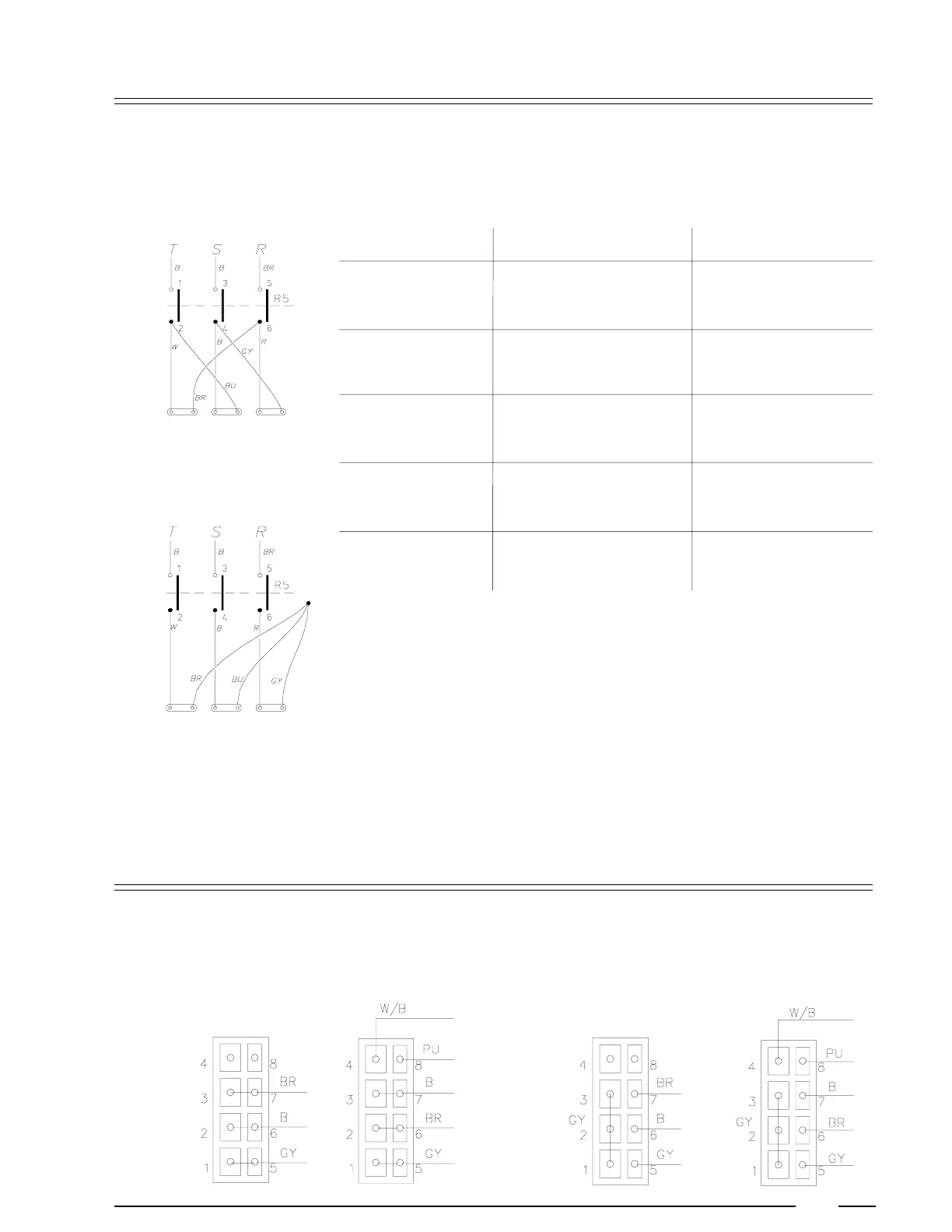

IPSO HF145 - Internal Connection of the Electrical Heating; Internal Connections of the Motors

17
s
H
5
Vermogen 3x220V R5 3x380V R5
12kW 3x2kW s LC1D253 H LC1D0901
3x2kW
15kW 3x2kW s LC1D253 H LC1D1810
3x3kW
18kW 3x3kW s LC1D323 H LC1D1810
3x3kW
21kW 3x3kW ------ ------ H LC1D1810
3x4kW ------ ------ s LC1D1810
24kW 3x4kW ------ ------ s LC1D1810
3x4kW ------ ------ s LC1D1810
Internal connections of the motors
220V 380V
Low speed High Speed Low speed High speed
B = Black
GY = Grey
R = Red
PU = Purple
Br = Brow
BU = Blue
W = White
W/B = White/Black
Remark:
Other executions are available as option
Heating
Internal connection of the electrical heating
