IPSO HF234 - Thermo-Magnetic Motor Protection System; Overload Relay Types and Installation Values

18
5
HF205/HF234
Man. reset
Autom. reset
220V
380V
The thermic overload relay turns off in case of overloading. Because this relay
is installed on automatical reset, after a while the motors are switched back on
automatically.
Installation and type of overload relay
220V
Machine Type value installation
HF145 LR2D13149 7-10A 7A
HF176 LR2D13149 7-10A 8A
HF205 LR2D13149 7-10A 10A
HF234 LR2D13149 7-10A 10A
380V
Machine Type value installation
HF145 LR2D13109 4-6A 4A
HF176 LR2D13109 4-6A 4A
HF205 LR2D13149 7-10A 7A
HF234 LR2D13149 7-10A 7A

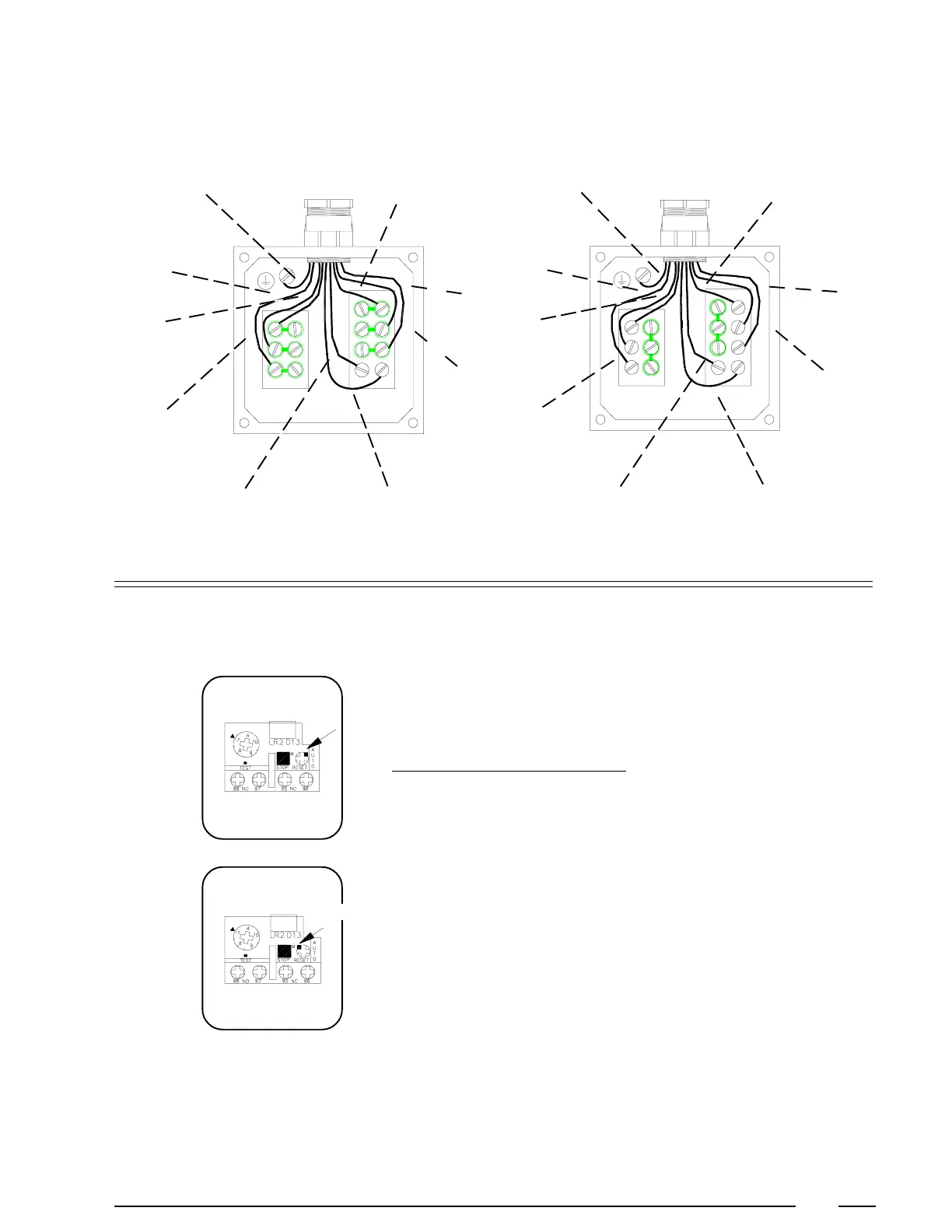

Thermo-magnetic motor protection
Grey
Brown
Washmotor: White/black
spinmotor: purple
Spinmotor: White/red
Washmotor: Blue
Brown
Black
Yellow/green
Black
Grey
Grey
Brown
Washmotor: White/black
spinmotor: purple
Spinmotor: White/red
Washmotor: Blue
Brown
Black
Yellow/green
Black
Grey
