IPSO WE 132 - Internal Electrical Heating Connections; Internal Motor Connections

21
s
H

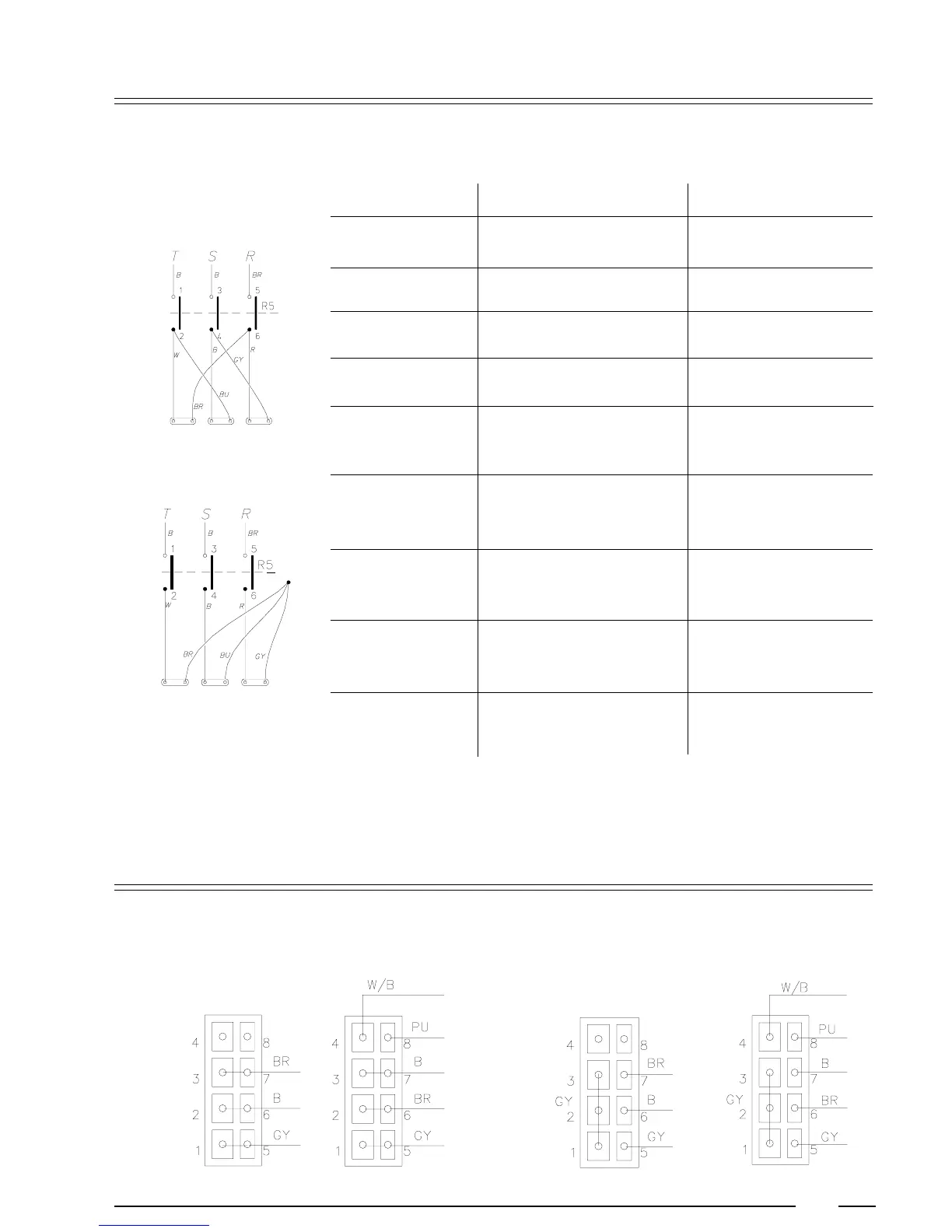

Internal connection of the electrical heating
Heating 3x220V R5 3x380V R5
4,2kw 3x1,4kw s LC1D0901 H LC1D0901
6kw 3x2kw s LC1D0901 H LC1D0901
9kw 3x3kw s LC1D1810 H LC1D0901
12kw 3x4kw   s LC1D0901
12kw 3x2kw s LC1D253 H LC1D090
3x2kw
15kw 3x2kw s LC1D253 H LC1D1810
3x3kw
B = Black
GY = Grey
R = Red
PU = Purple
Br = Brow
BU = Blue
W = White
W/B = White/Black
Remark:
Other executions are available as option
Internal connections of the motors
220V 380V
Low speed High Speed Low speed High speed
18kw 3x3kw s LC1D323 H LC1D1810
3x3kw
21kw 3x3kw   H LC1D1810
3x4kw   s LC1D1810
24kw 3x4kw   s LC1D1810
3x4kw   s LC1D1810
