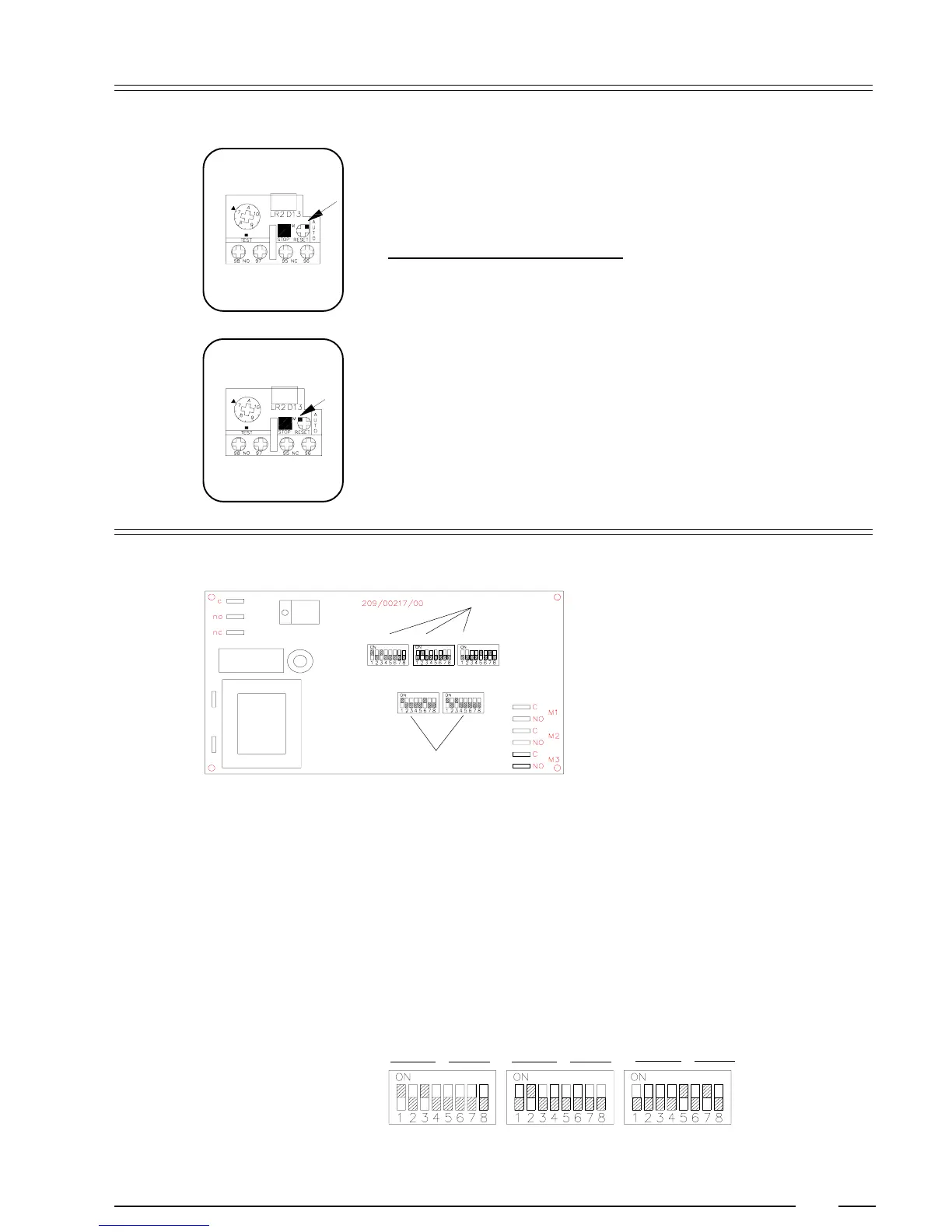

Man. reset
Autom. reset
Thermo-magnetic motor protection
The thermic overload relay turns off in case of overloading. Because this relay
is installed on automatical reset, after a while the motors are switched back on
automatically.
Installation and type of overload relay
220V
Machine Type value installation
WE55/73/95 LR2D13109 4-6A 5A
WE110/132 LR2D13149 7-10A 7A
WE165 LR2D13149 7-10A 8A
380V
Machine Type value installation
WE55/73/95 LR2D13089 2,5A-4A 3A
WE110/132/165 LR2D13109 4-6A 4A
Installation of the electronic stepper
Installation of the value of
the coin meters
The switches Dip1 up to and including Dip3 are used to install coin meters M1
up to and including M3.
Every coin meter is installed by making an installation with 2 groups of 4 slide-
switches.
Every slide-switch has its own binary value (1-2-4-8).
The sum of these binary values gives the input value of one group.
With the first group the tens are installed.
With the second group the units are installed.
Units
Tens
Units
Tens
Units
Tens
binaray value 1 2 4 8 1 2 4 8 1 2 4 8 1 2 4 8 1 2 4 8 1 2 4 8
Example 1+0+4+0 0+0+0+0 0+2+0+0 0+0+0+0 0+0+0+0 1+0+4+0
M3 = 50 M2 = 20 M1 = 5
