9
Chapter 3 – The IQAir® System’s Components
Chapter 3 – The IQAir® System’s Components

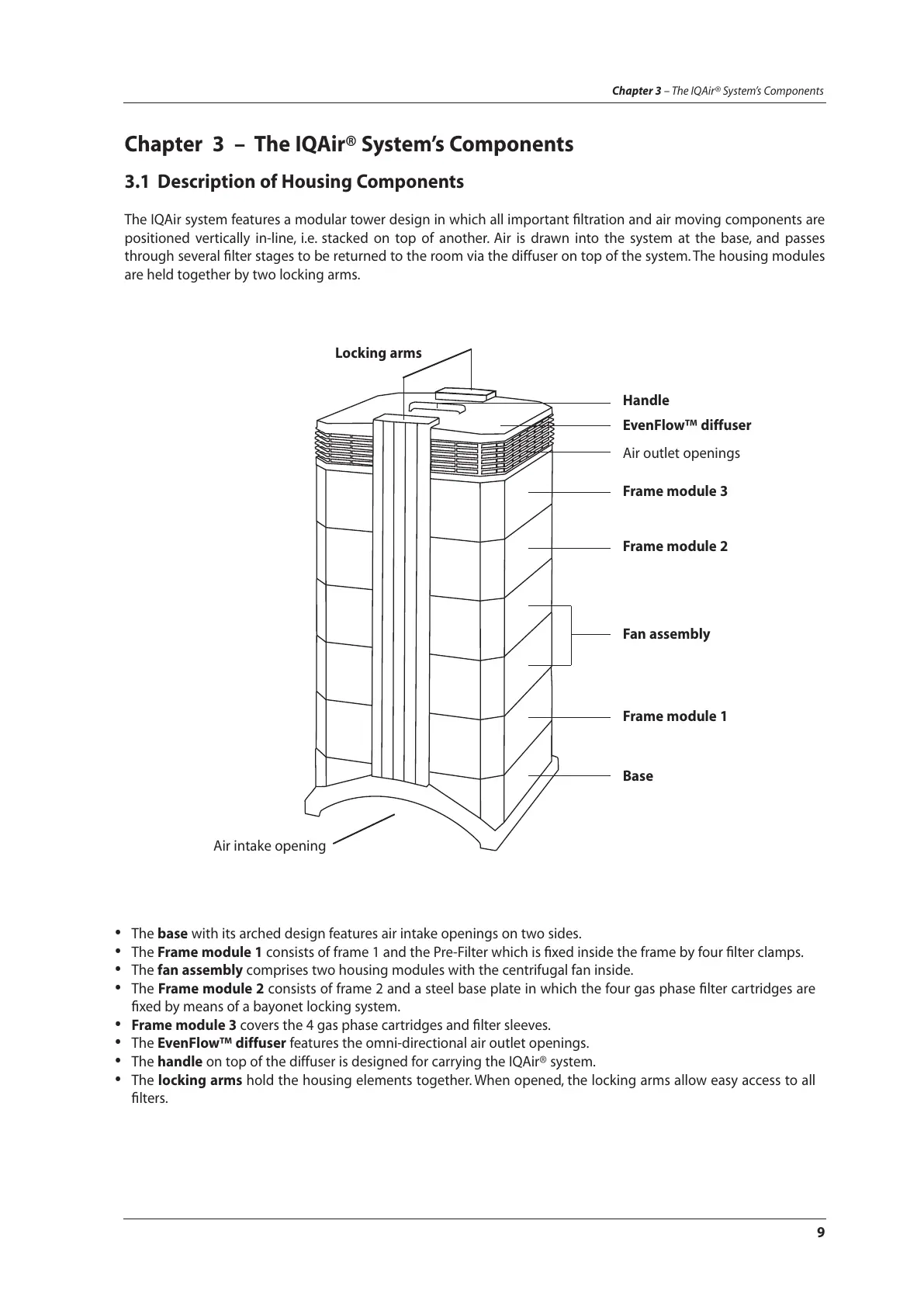

3.1 Description of Housing Components
The IQAir system features a modular tower design in which all important filtration and air moving components are
positioned vertically in-line, i.e. stacked on top of another. Air is drawn into the system at the base, and passes
through several filter stages to be returned to the room via the diffuser on top of the system. The housing modules
are held together by two locking arms.
• The base with its arched design features air intake openings on two sides.
• The Frame module 1 consists of frame 1 and the Pre-Filter which is fixed inside the frame by four filter clamps.
• The fan assembly comprises two housing modules with the centrifugal fan inside.
• The Frame module 2 consists of frame 2 and a steel base plate in which the four gas phase filter cartridges are
fixed by means of a bayonet locking system.
• Frame module 3 covers the 4 gas phase cartridges and filter sleeves.
• The EvenFlow™ diffuser features the omni-directional air outlet openings.
• The handle on top of the diffuser is designed for carrying the IQAir® system.
• The locking arms hold the housing elements together. When opened, the locking arms allow easy access to all
filters.
EvenFlow™ diffuser
Frame module 1
Fan assembly
Frame module 2
Frame module 3
Locking arms
Base
Handle
Air intake opening
Air outlet openings
