Electrical Connections, Laser

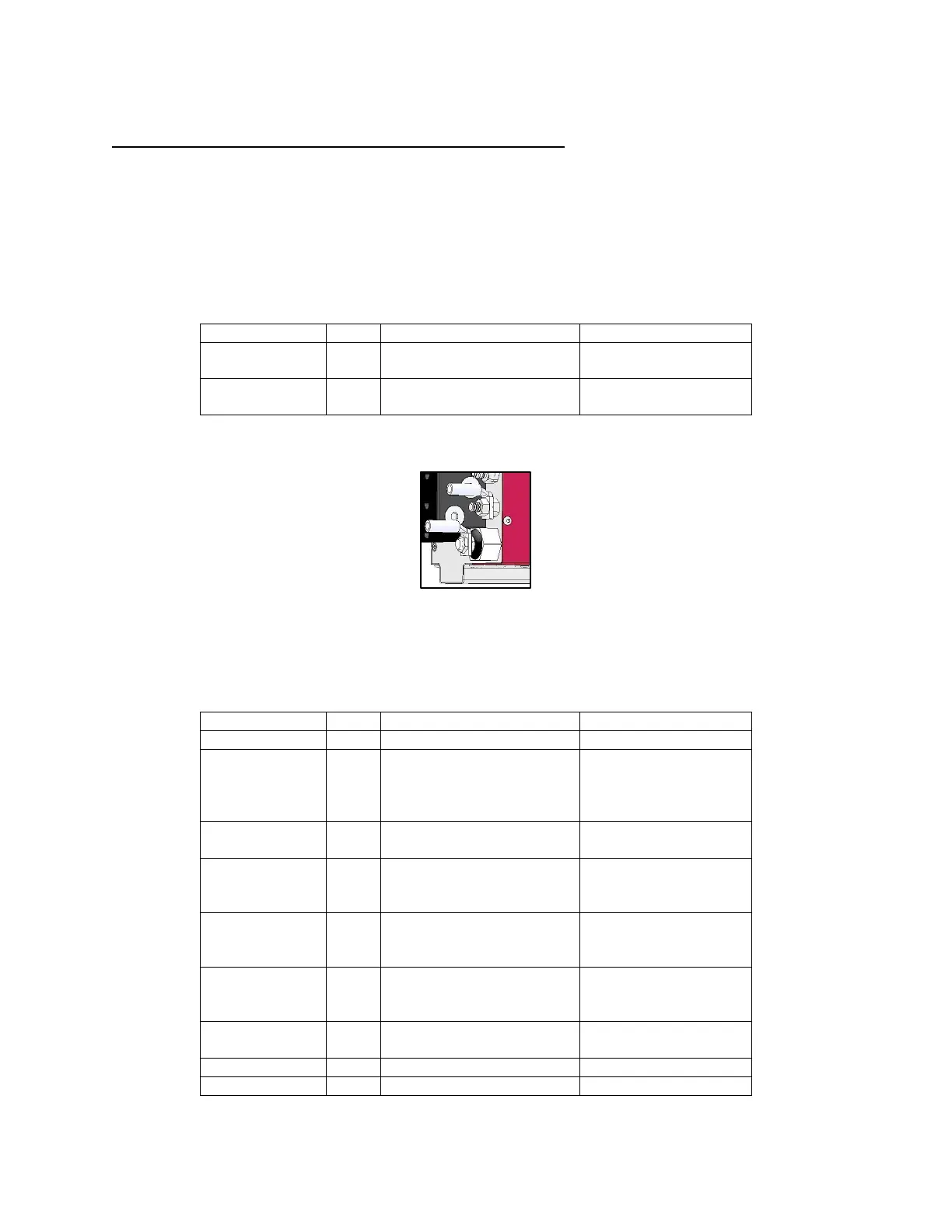

There are two signal connectors and two power terminals on the rear of the laser
available for operation of the laser. The 15 pin “D” connector contains all the available
connections for operation. The RJ-45 connector contains a basic set of connections.
Power Cable Connections
Power VDC positive
connection
Screw torque should equal 3 Nm.
Connector (HD-15 pin “D”)*
*The use of standard Video cables with a HD 15 pin connector is not permitted when
interfacing to this connector.
This line grounded or
driven independently
for command line
isolation. (Page 9)
TTL signal relative to
pin 3. (Page 9)
Signal to drive an LED
directly with grounded
cathode.
Ground this line
through key switch to
arm laser. (page 10)
Signal to drive an LED
directly with grounded
cathode.
Forward RF monitor 1
output
To Next Page
