CON47: Manual
controller
CON46：+5VA and start
signal
CON22：Upper
limited switch
CON42 ： Lower limited
switch of mechanical hands
CON45：Power cord of
mechanical hands testing
CON3: Power cord of
backrest actuator testing
CON2：Power cord of
calf rest actuator testing
CON44：24VB/12V
Ribbon wire
CON39：Power of
backrest actuator
CON37：Power of
calf rest actuator
CON31 Green：
Foot rolling motor
CON48 Blue：
Kneading motor
CON25 Red：
Flapping motor
CON19 Black：
Walking motor
CON7：Air pump
CON5：AC22V to
backrest heating wire
CON6: AC22V plugged
into power board
CON10：Power box
protection switch
CON21：24VA/+5VB
CON33 ： Armrest solenoid
valve
CON38：Calf rest solenoid
valve
CON34：USB program socket

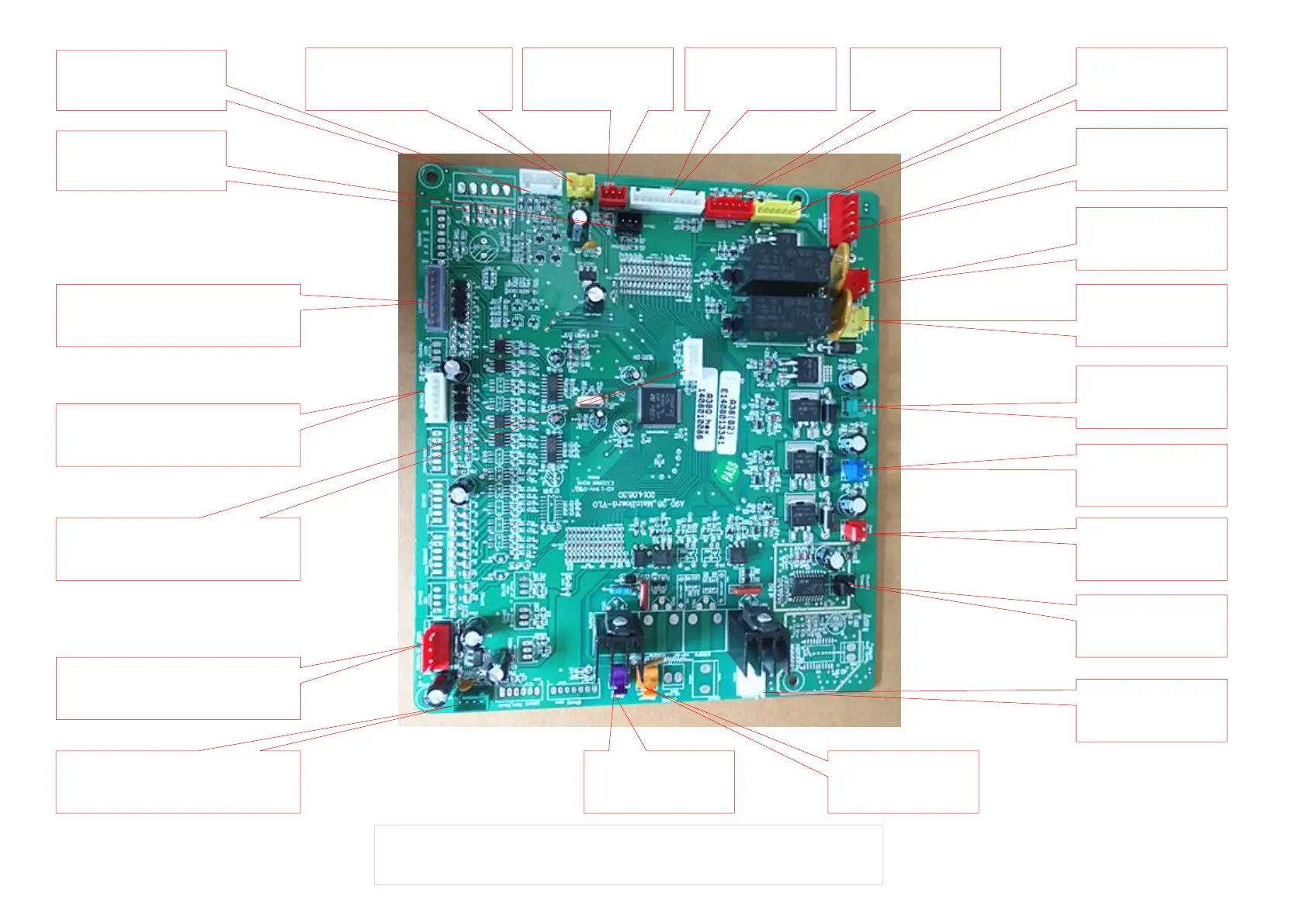

Figure 1: Instruction and functions of adapters on the main board
