4.3 Mechanical Drawing

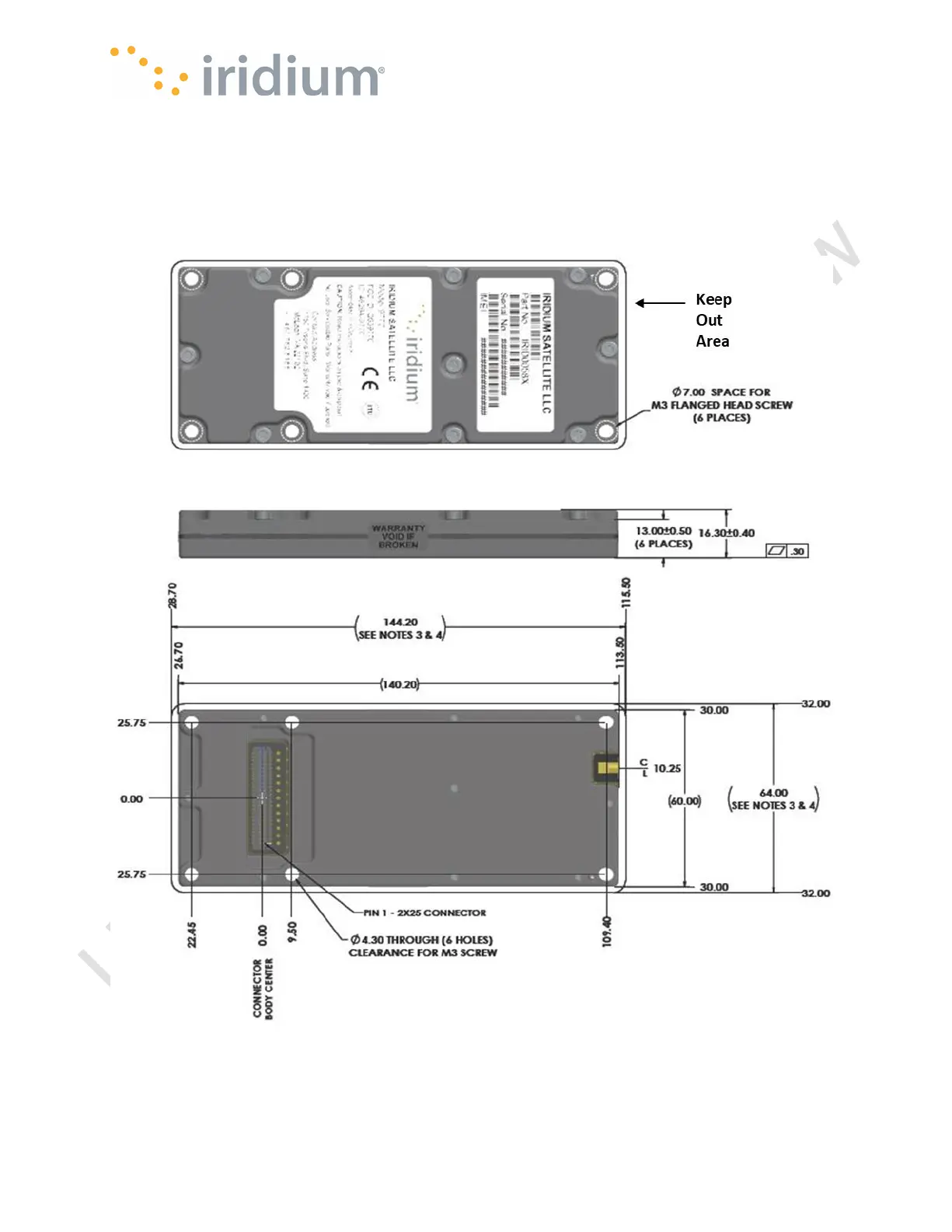

Figure 4.3-1 below shows the mechanical dimensions of the Iridium Certus 9770. CAD files for
the Iridium Certus 9770 are also available in STEP and Parasolid files as per References 2 and
3 respectively.
Figure 4.3-1: Iridium Certus 9770 Mechanical Drawing
